Spare parts > STIGA > Snowthrowers > SNOW FLAKE SNOW FLAKE (2011) [18-2829-31] > Gear case
Back to

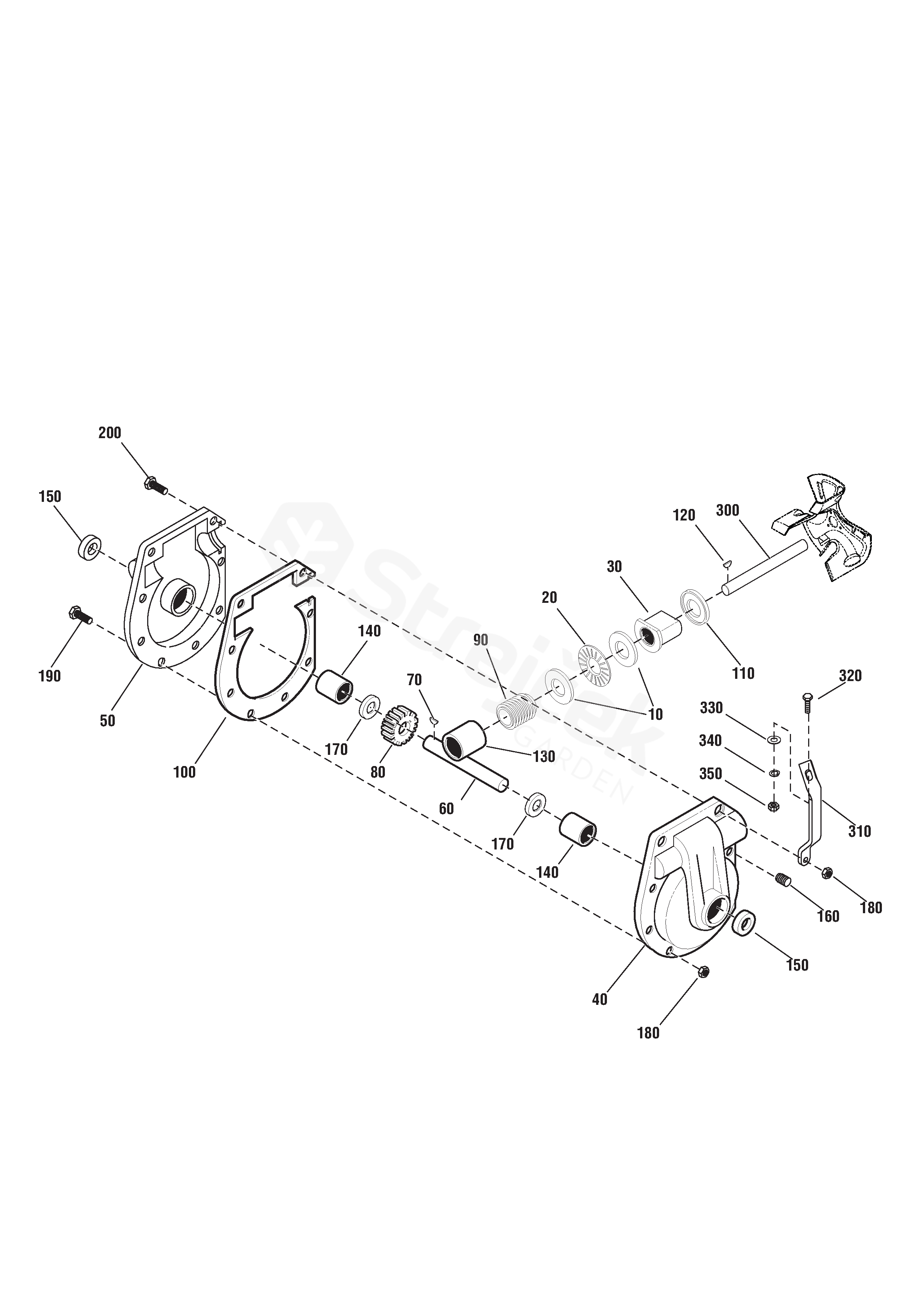

Gear case
SNOW FLAKE SNOW FLAKE (2011) [18-2829-31]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SNOW FLAKE (2011) [18-2829-31]
10 Thrust Washer 1812-0857-01
20 Needle Bearing 1812-0285-01
30 Bearing Impeller Shaft 1812-1259-01
40 Gear case LH 1812-0227-01
50 Gear case RH 1812-0228-01
60 Auger Shaft 1812-1442-01
70 Woodruff Key 1812-0409-01
80 Worm gear 1812-0335-01
90 Gear 1812-0336-01
100 Gasket 1812-0226-01
110 Ring 1812-0341-01
120 Key 1812-0307-01
130 Bearing 1812-0297-01
140 Bearing 1812-0343-01
150 Ring 1812-0344-01
160 Oil Plug 1812-0346-01
170 Washer 1812-0345-01
180 Nut 9743-5121-02
190 Screw
L = 25 mm 		9987-5125-16
200 Screw
L = 45 mm 		9987-5145-12
300 Shaft, Impeller 1812-2636-01
