Spare parts > STIGA > Snowthrowers > ST 3256 P ST 3256 P (2014) > Engine, belts
Back to

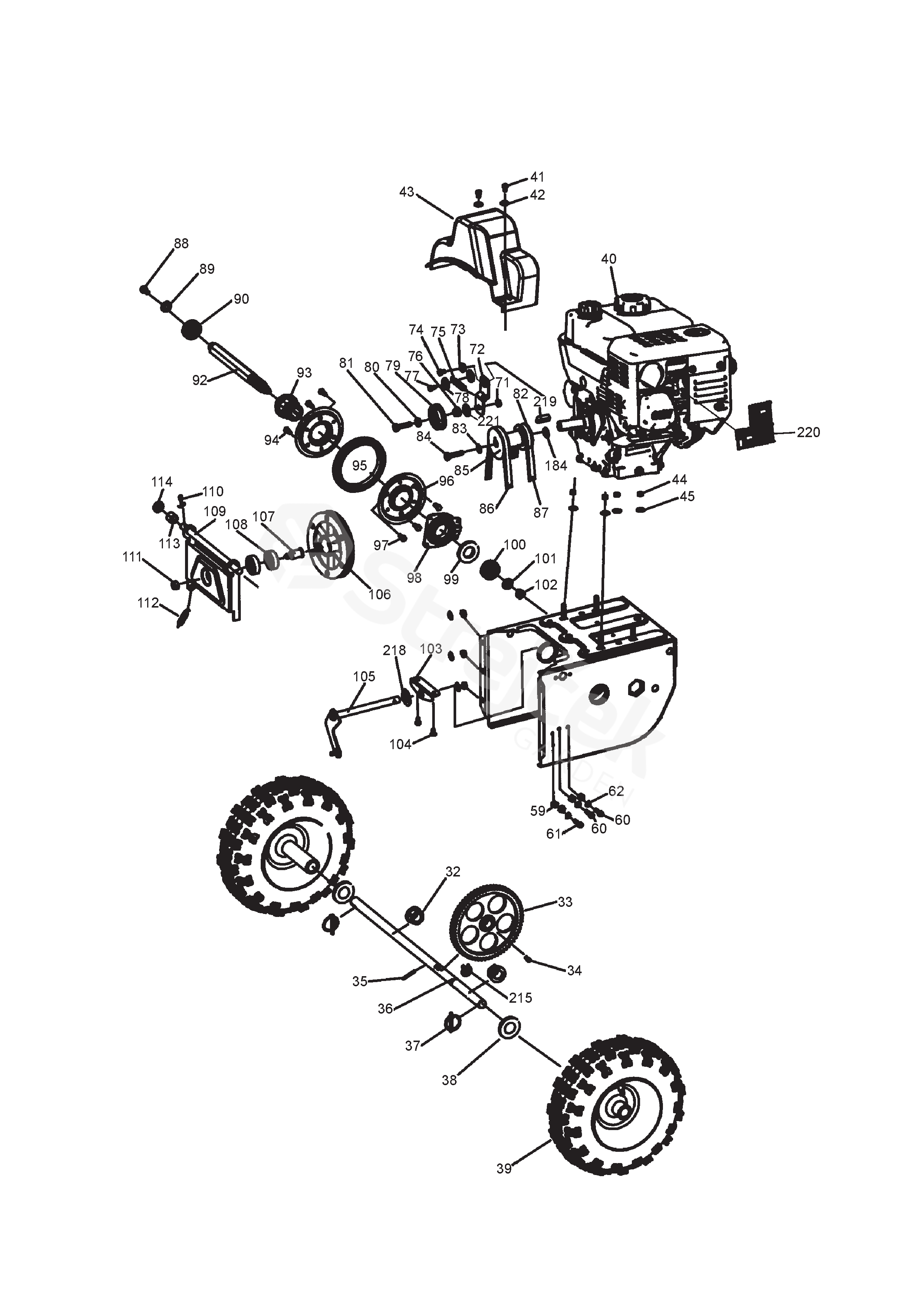

Engine, belts
ST 3256 P ST 3256 P (2014)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ST 3256 P (2014)
32 Wheel Shaft 1811-2452-01
33 Gear 1811-2421-01
34 Key 1811-2416-01
35 Locating Pin 9595-0212-00
36 Wheel Shaft 1811-2550-01
37 Spring Pin 1811-2478-01
38 Flat washer 1811-2407-01
39 Wheel assy
15" 		1811-2541-01
40 Engine Lc170 (El.Start)
Electric starter - Not for B&S Models 		118550657/0
41 Screw 9997-0610-16
42 Washer 9699-0025-02
43 Belt cover 1811-2455-01
44 Nut 9747-0831-02
45 Washer 9699-0028-02
59 Lock Nut
To 31-August-2014 		9747-0631-02
60 Screw
L = 30 mm 		9997-0630-12
61 Screw
L = 20 mm 		9997-0620-16
62 Washer 9699-0025-02
71 Lock Nut
To 31-August-2014 		9747-0631-02
72 Tension Arm
From 01-September-2012 To 31-August-2013 		1811-2594-01
73 Washer 1811-2559-01
74 Screw 9997-0820-16
75 Spring 1811-2555-01
76 Washer 1811-2575-01
77 Screw 9997-0812-16
78 Washer 9699-0028-02
79 Tension pulley 1811-2593-01
80 Washer 1811-2427-01
81 Screw
To 31-August-2016 		112793701/0
82 Belt Pulley 1811-2473-01
83 Plain Cushion 1811-2542-01
84 Screw 9987-5125-16
85 Main Pulley 1811-2560-01
86 Belt
L = 885 		1811-2578-01
87 Belt 1811-2410-01
88 Screw 9997-0816-16
89 Washer 9699-0122-02
90 Bearing 1811-2411-01
92 Hex Shaft 1811-2423-01
93 Hub 1811-2435-01
94 Screw 9997-0612-16
95 Friction ring 1811-2584-01
96 Friction Wheel 1811-2433-01
97 Screw 9997-0612-16
98 Gear Selector Hub 1811-2434-01
99 Lock Ring 1811-2412-01
100 Bearing 1811-2413-01
101 Washer 9699-0035-02
102 Lock Nut 9747-1031-02
103 Bracket 1811-2420-01
104 Screw 9997-0610-16
105 Gear Lever 1811-2465-01
106 Drive pulley 1811-2428-01
107 Shaft 1811-2429-01
108 Bearing 1811-2414-01
109 Bracket 1811-2424-01
110 Split pin 9599-0054-02
111 Lock Nut 9747-1031-02
112 Spring 1811-2483-01
113 Collar 1811-2489-01
114 Washer 9699-0037-02
184 Washer 1811-2477-01
215 Retainer ring 9650-0019-04
218 Washer 9699-0037-02
219 Key 1811-2581-01
220 Therm. Insulated Shroud 1811-2592-01
221 Washer 9699-0076-02
