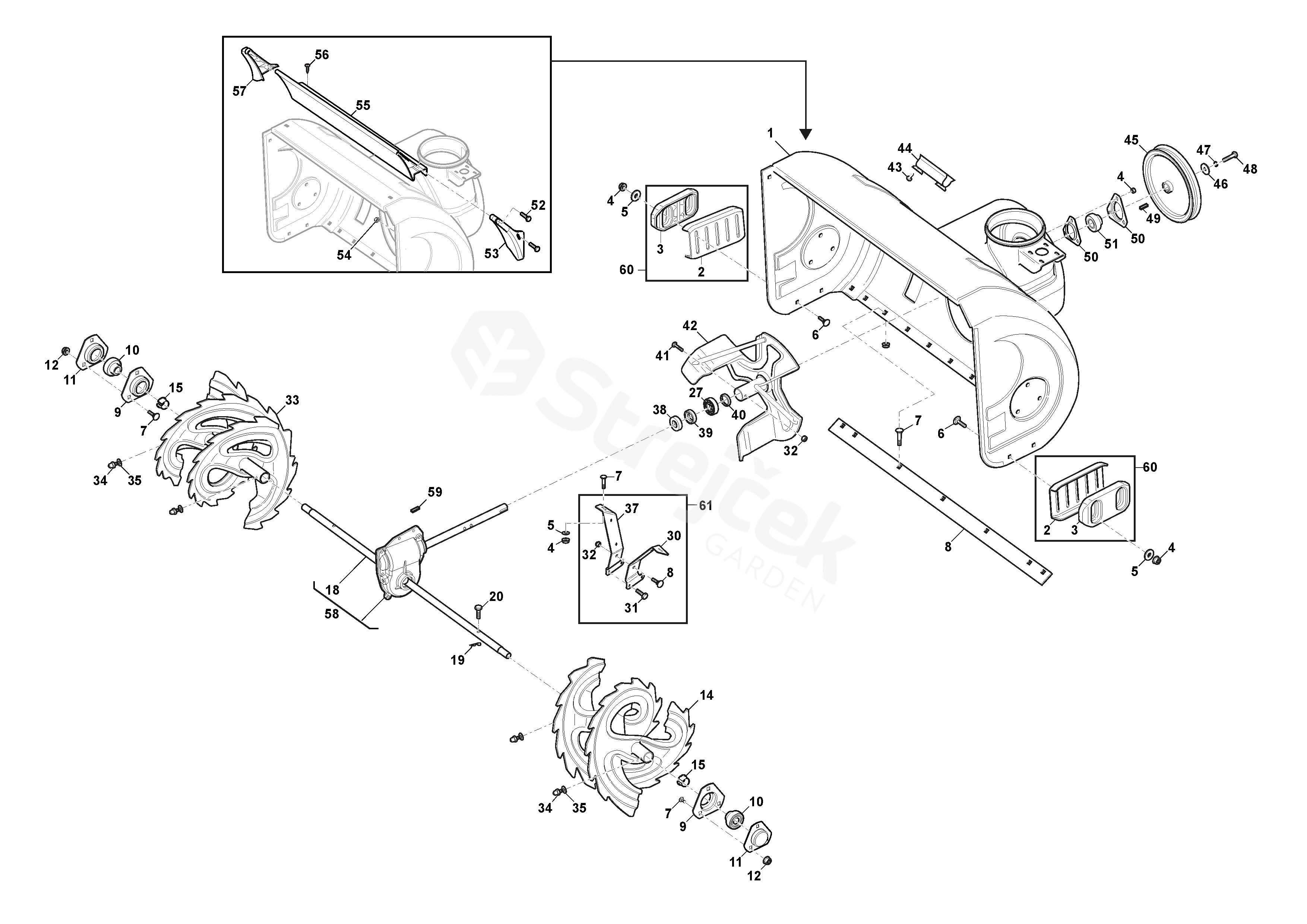

ST 6276 PB ST 6276 PB (2019)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For ST 6276 PB (2019)

1	Housing Assy	118820697/0
2	Skid Shoe	118820623/0
3	Skid Shoe	118820624/0
4	Nut	112154210/0
5	Washer	9699-0090-02
6	Screw	112818700/0
7	Screw	112818690/0
8	Shave Plate	118820698/0
9	Bearing Cover	118820699/0
10	Ball Bearing	118820700/0
11	Sealing bearing seat	118820701/0
12	Nut	112154210/0
14	Right auger	118820702/0
15	Bushing	118820703/0
18	Output Shaft	118820706/0
19	Cotter Pin	1811-3080-01
20	Shear bolt	118820707/0
27	Ball Bearing	118820157/0
30	Right Support	118820627/0
31	Screw	112674550/0
32	Nut	112154510/0
33	Left auger	118820715/0
34	Oil Cup	118820156/0
35	Washer	112521330/0
37	Left Support	118820628/0
38	Sleeve	118820292/0
39	Ball Bearing	118820158/0
40	Seal Ring 20x35x7	118820629/0
41	Screw	112691100/0
42	Fan	118820716/0
43	Screw	1811-3148-01
44	Support	118820250/0
45	Big pulley	118820717/0
46	Washer	9699-0109-02
47	Washer	112530140/0
48	Screw	9997-1025-16
49	Key 6x20	118820252/0
50	Bearing Cover	118820718/0
51	Ball Bearing	1811-3134-01
52	Screw	9930-0820-16
53	Cover, Right	118820719/0
54	Nut	112154210/0
55	Cover	118820720/0
56	Screw	9897-0820-16
57	Cover, Left	118820721/0
58	Gear Box Assy	118820820/0
59	Cylinder Pin 6x14	118820876/0
60	Skid shoe Assy	118821102/0
61	Support Assy	118821103/0
