Spare parts > STIGA > Snowthrowers > ST420 ST420T (D) (1989) > Auger Housing
Back to

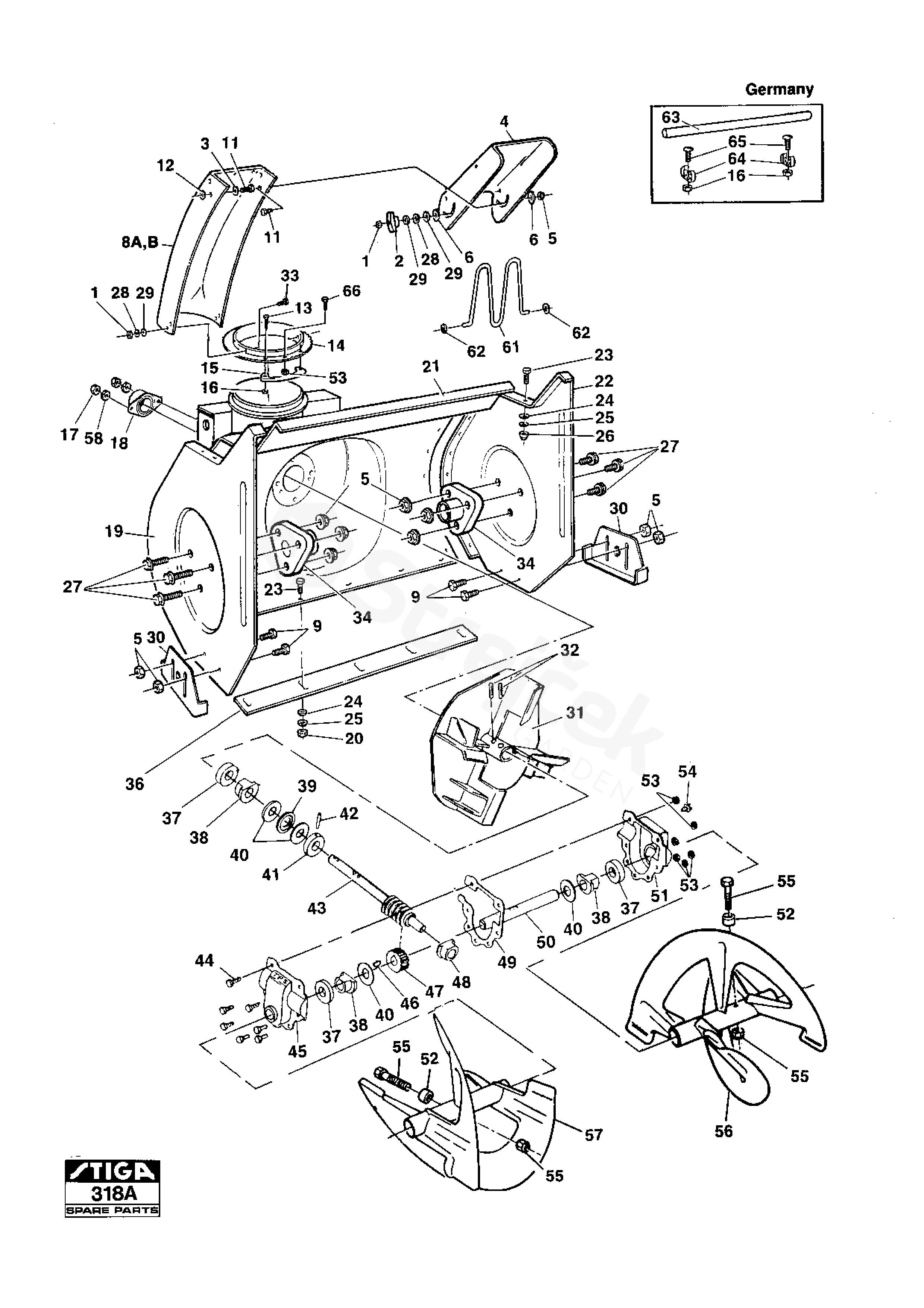

Auger Housing
ST420 ST420T (D) (1989)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ST420T (D) (1989)
1 Nut 9795-3631-02
2 Knob 1812-1108-01
3 Washer 9699-0069-02
4 Chute Deflector 1812-0662-01
5 Nut 9743-3621-32
6 Washer 1812-0667-01
9 Bolt 1812-1107-01
11 Screw 1812-0273-01
12 Washer 9699-0029-02
13 Screw 1812-0388-01
14 Flange 1812-1116-01
15 Retainer 1812-0632-01
16 Nut 1812-0389-01
17 Nut 9795-3731-02
18 Bearing 1812-0820-01
19 Side Plate R.H 1812-0873-01
20 Nut 9795-3531-02
21 No Longer Available 1812-0871-01
22 Side Plate L.H 1812-0872-01
23 Carr.Bolt 1812-0735-01
24 Washer 9699-0026-02
25 Washer 9683-0025-02
26 Nut 9795-3531-02
27 Screw 9988-3619-16
28 Washer 9683-0030-02
29 Washer 9699-0028-02
30 Height Adjustor Skid 1812-0847-01
31 Impeller 1812-0898-01
32 Roll pin 1812-1109-01
33 Screw 9899-3622-16
34 Bearing 1812-0878-01
36 Scraper Bar 1812-0870-01
37 Oil seal 1812-0881-01
38 Bushing 1812-0864-01
39 Needle Bearing 1812-0285-01
40 Thrust Washer 1812-0857-01
41 Thrust Collar 1812-0861-01
42 Roll pin 1812-0958-01
43 Input Shaft 1812-0840-01
44 Screw 9988-3519-16
45 Gear case-R.H. 1812-0909-01
46 Woodruff Key 1812-0813-01
47 Worm gear 1812-0862-01
48 Bushing 1812-0863-01
49 Gasket 1812-0860-01
50 Output Shaft 1812-1120-01
51 Gear case LH 1812-0908-01
52 Spacer 1812-0531-01
53 Nut 9743-3521-32
54 Screw 1812-0856-01
55 Shear Bolt Kit
Inkl.pos. 52 		1812-9005-01
56 Auger Lh 20inch 1812-1122-01
57 Auger Rh 20inch 1812-1121-01
58 Washer 9683-0035-02
61 Chute Protection 1812-0231-01
62 Grip Ring 1812-1143-01
63 Clean out stick 1812-0315-01
64 Clamp 1812-0316-01
65 Bolt 1812-0728-01
66 Screw 9988-3525-16
8A Chute 1812-0443-01
8B Chute (Germany) 1812-0633-01
