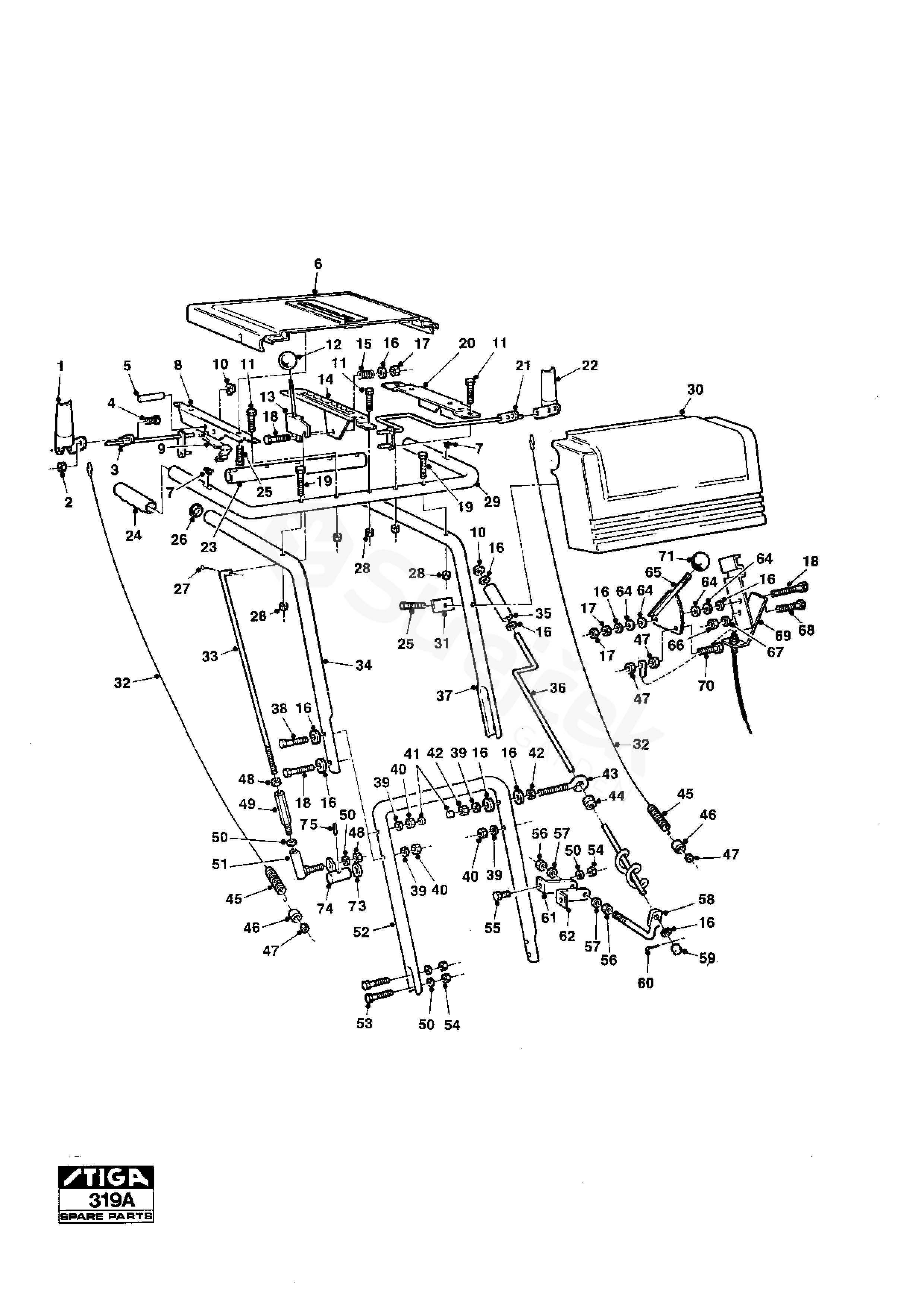

ST82 ST828 (S N) (1989)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For ST828 (S N) (1989)

1	Hand Control R.H	1812-0889-01
2	Nut	9743-3521-32
3	Bail Rod R.H	1812-0894-01
4	Carriage Bolt	1812-0821-01
5	Pin	1812-0823-01
6	Control panel-top	1812-0975-01
7	Protection	1812-0520-01
8	Bracket	1812-0895-01
9	Cam Lock Spring	1812-0834-01
10	Cap Retainer	1812-0649-01
11	Screw	9988-3645-16
12	Knob	1812-0706-01
13	Handle Speed Control	1812-0701-01
14	Control Panel Support	1812-0693-01
15	Spring	1812-0304-01
16	Washer	9699-0029-02
17	Nut	9743-3721-32
18	Screw	9988-3745-12
19	Screw	9988-3670-12
20	Bracket	1812-0892-01
21	Bail Rod L.H	1812-0893-01
22	Hand Control L.H.	1812-0888-01
23	Cross bar	1812-0891-01
24	Handle Grip	1812-0955-01
25	Bolt	1812-0670-01
26	Plastic End Plug	1812-0692-01
27	Split pin	9599-0054-02
28	Nut	9743-3621-32
29	Upper Handle Loop	1812-0890-01
30	Control Panel Front	1812-0713-01
31	Spring Clip	1812-0705-01
32	Clutch Cable	1812-0943-01
33	Rod Speed Control	1812-0666-01
34	Upper Handle R.H	1812-0690-01
35	Crank Handle	1812-0832-01
36	Chute crank	1812-0570-01
37	Upper Handle L.H	1812-0689-01
38	Screw	9988-3764-12
39	Washer	9683-0035-02
40	Nut	9795-3731-02
41	Plastic Stop	1812-0830-01
42	Nut	9743-3721-32
43	Eyebolt	1812-0394-01
44	Bushing	1812-0203-01
45	Spring	1812-0253-01
46	Spacer	1812-0824-01
47	Nut	9743-3521-32
48	Nut	9794-5131-02
49	Adaptor	1812-0622-01
50	Washer	9683-0030-02
51	Ball Joint	1812-0303-01
52	Handle Lower Part	1812-0553-01
53	Screw	9988-3619-16
54	Nut	9795-3631-02
55	Screw	9899-3622-16
56	Nut	9743-5421-32
57	Washer	9683-0055-02
58	Rod Chute Control	1812-0675-01
59	Plastic Cap	1812-0646-01
60	Split pin	9599-0054-02
61	Bracket Chute Rotate R.H	1812-0674-01
62	Bracket Chute Rotate L.H	1812-0673-01
65	Lever	1812-0715-01
66	Nut	9795-3531-02
67	Washer	9683-0025-02
68	Screw	9988-3519-16
69	Remote Cable Bracket	1812-0712-01
70	Screw	9988-3525-16
71	Knob	1812-0376-01
