Spare parts > STIGA > Snowthrowers > 320 320 (1996) > Auger Chute
Back to

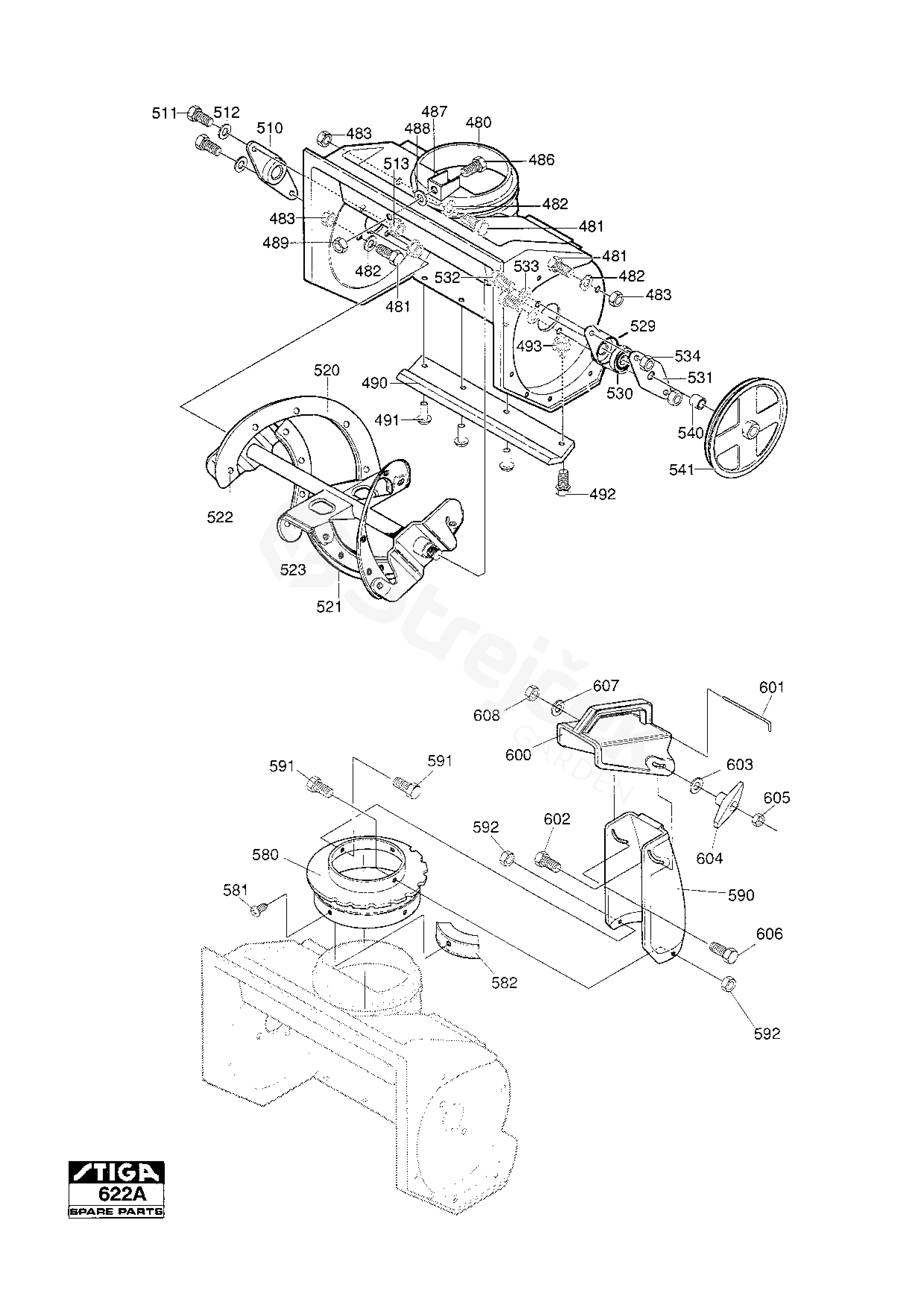

Auger Chute
320 320 (1996)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 320 (1996)
480 Rect Housing 1133-0994-01
481 Screw 9988-3519-16
482 Washer 9699-0026-02
483 Nut 9743-3521-32
486 Screw 9988-3516-16
487 Stop Bracket 1133-0993-01
488 Washer 9699-0078-02
489 Nut 9743-3521-32
490 Scraper Blade 1133-0999-01
491 Rivet 1133-1022-01
492 Screw 9988-3519-16
493 Nut 9727-3541-22
510 Flange Bearing 1133-1019-01
511 Screw 9988-3525-16
512 Washer 9699-0026-02
513 Nut 9727-3541-22
520 Auger 1133-0966-01
521 Auger Blade 1133-0964-01
522 Rivet 1133-0940-01
523 Centre Blade 1133-0960-01
529 Retainer-Bearing 1133-1027-01
530 Bearing 1133-0110-01
531 Bearing Retainer 1133-1000-01
532 Screw 9988-3516-16
533 Washer 9699-0026-02
534 Nut 9743-3521-32
540 Spacer 1133-1025-01
541 Pulley 1133-0985-01
580 Chute Ring 1133-0987-01
581 Screw 1133-1014-01
582 Chute Guide 1133-1018-01
590 Lower Chute 1133-1004-01
591 Screw 9988-3513-16
592 Nut 9727-3541-22
600 Upper Chute 1133-0967-01
601 Hinge Wire 1133-0969-01
602 Screw 9899-3632-12
603 Washer 9699-0028-02
604 Wing Knob 1133-0932-01
605 Nut 9795-3631-02
606 Screw 1133-1023-01
607 Washer 9699-0028-02
608 Nut 9743-3621-32
