Spare parts > STIGA > Snowthrowers > 320 320 (1997) > Auger
Back to

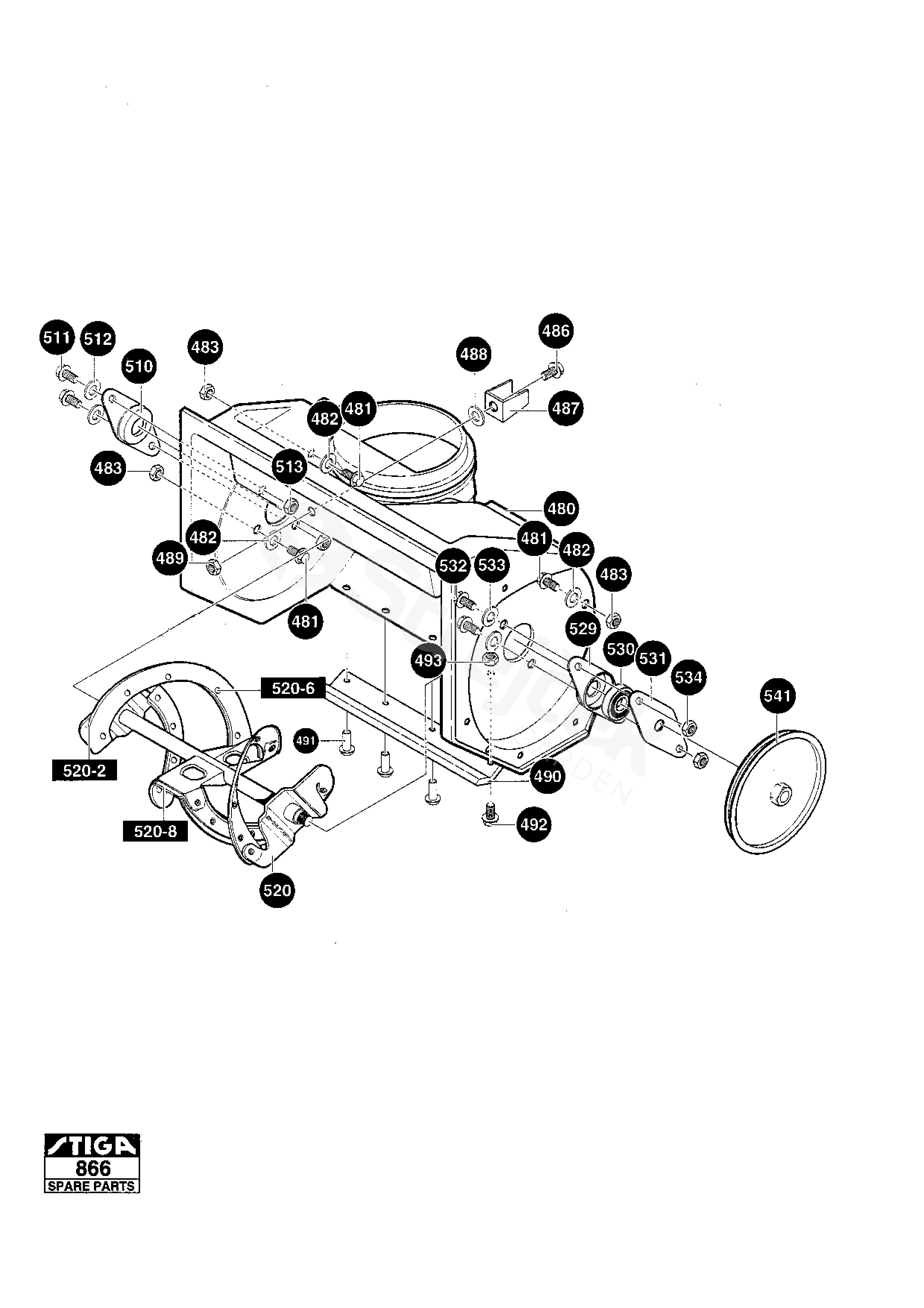

Auger
320 320 (1997)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 320 (1997)
480 Rect Housing 1133-0994-01
481 Screw 9988-3519-16
482 Washer 9699-0026-02
483 Nut 1812-0812-01
486 Screw 9988-3516-16
487 Stop Bracket 1133-0993-01
488 Washer 9699-0078-02
489 Nut 1812-0812-01
490 Scraper Blade 1133-0999-01
491 Rivet 1133-1022-01
492 Screw 9988-3519-16
493 Nut 9727-3541-22
510 Flange Bearing 1133-1019-01
511 Screw 9988-3525-16
512 Washer 9699-0026-02
513 Nut 9727-3541-22
520 Auger 1133-0966-01
529 Retainer-Bearing 1133-1027-01
530 Ball Bearing 1812-1383-01
531 Bearing Retainer 1133-1000-01
532 Screw 9988-3516-16
533 Washer 9699-0026-02
534 Nut 1812-0812-01
541 Pulley 1812-1400-01
520A Auger Blade 1133-0964-01
520B Rivet 1133-0940-01
520C Centre Blade 1133-0960-01
