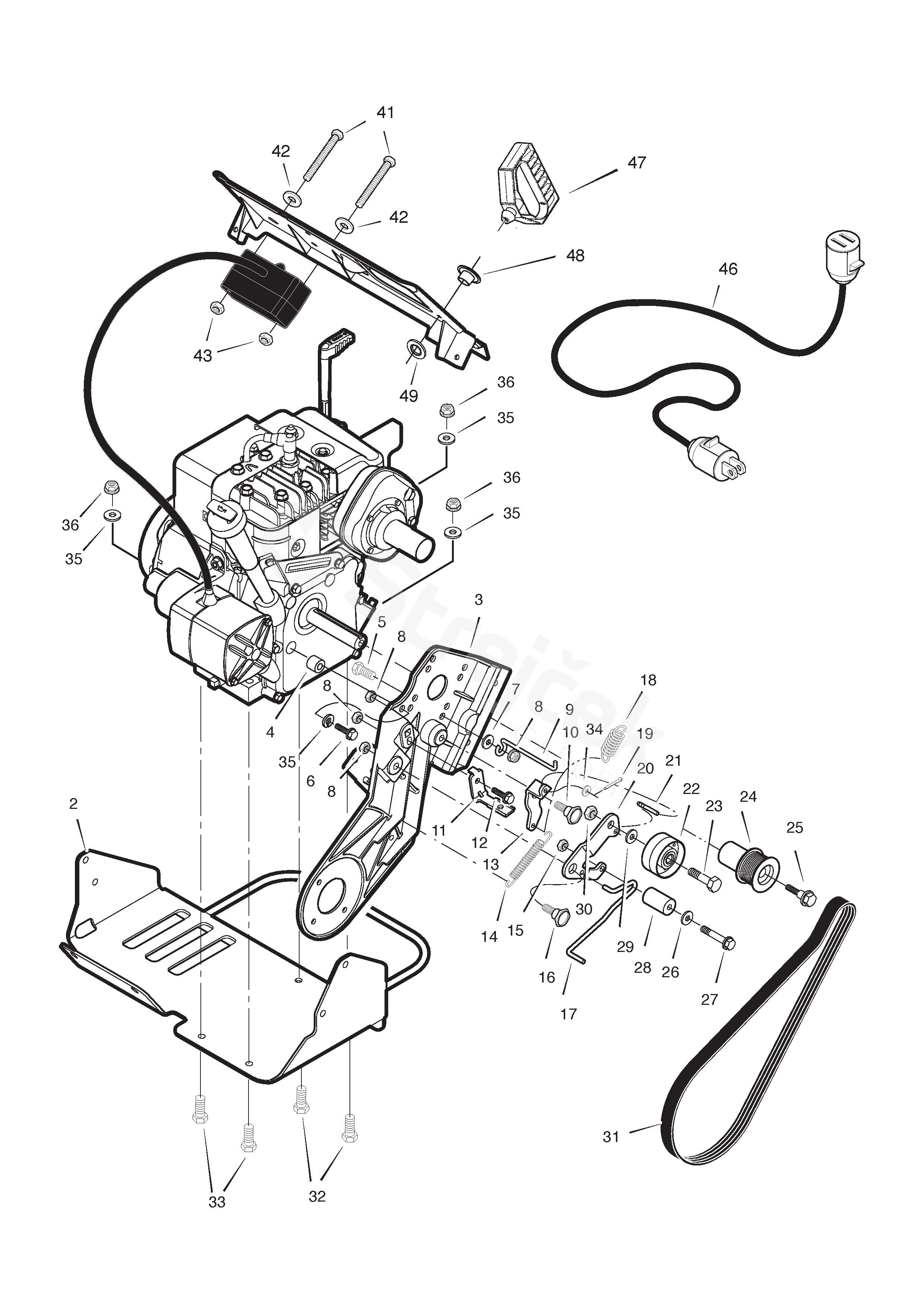

SNOW BREEZE ES SNOW BREEZE ES (2008)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For SNOW BREEZE ES (2008)

2	Engine Cradle	1812-1954-01
3	Frame-Lh	1812-1968-01
4	Antivibration Mount	1812-1997-01
5	Screw	9988-3625-16
6	Bolt	1812-1918-01
7	Washer	9699-0029-02
8	Nut	1812-0811-01
9	Belt Guide	1812-1893-01
10	Shoulder Bolt	1812-1829-01
11	Brake Pad	1812-1891-01
12	Screw	9988-3516-16
13	Idler Pivot Arm	1812-1882-01
14	Spring	1812-1885-01
15	Nut	1812-0812-01
17	Brake Wire	1812-1896-01
18	Spring	1812-1670-01
19	Cotter Pin	1812-1879-01
20	Idler Bracket Arm	1812-1888-01
21	Clutch Linkage Rod	1812-1881-01
22	Idler pulley	1133-0936-01
23	Screw	9988-3738-12
24	Engine Pulley	1812-1977-01
25	Engine Pulley Bolt	1812-1976-01
26	Washer	9699-0028-02
27	Screw	9988-3551-12
28	Pinch Roller	1812-1897-01
29	Flat washer	1812-1880-01
30	Nut	9743-3721-32
31	Drive Belt	1812-1878-01
32	Screw	9988-3651-12
33	Screw	9988-3725-16
34	Washer	9699-0079-02
35	Washer	9683-0030-02
36	Nut	9795-3631-02
41	Screw	1812-1923-01
43	Nut	1812-1921-01
46	Extension Cord	1812-1615-01
47	Kit-Handle/Rope	1812-1995-01
48	Rope Guide	1812-2123-01
49	Washer	1812-2124-01
