Spare parts > STIGA > Snowthrowers > SNOW MAX SNOW MAX (2002) > Housing, auger
Back to

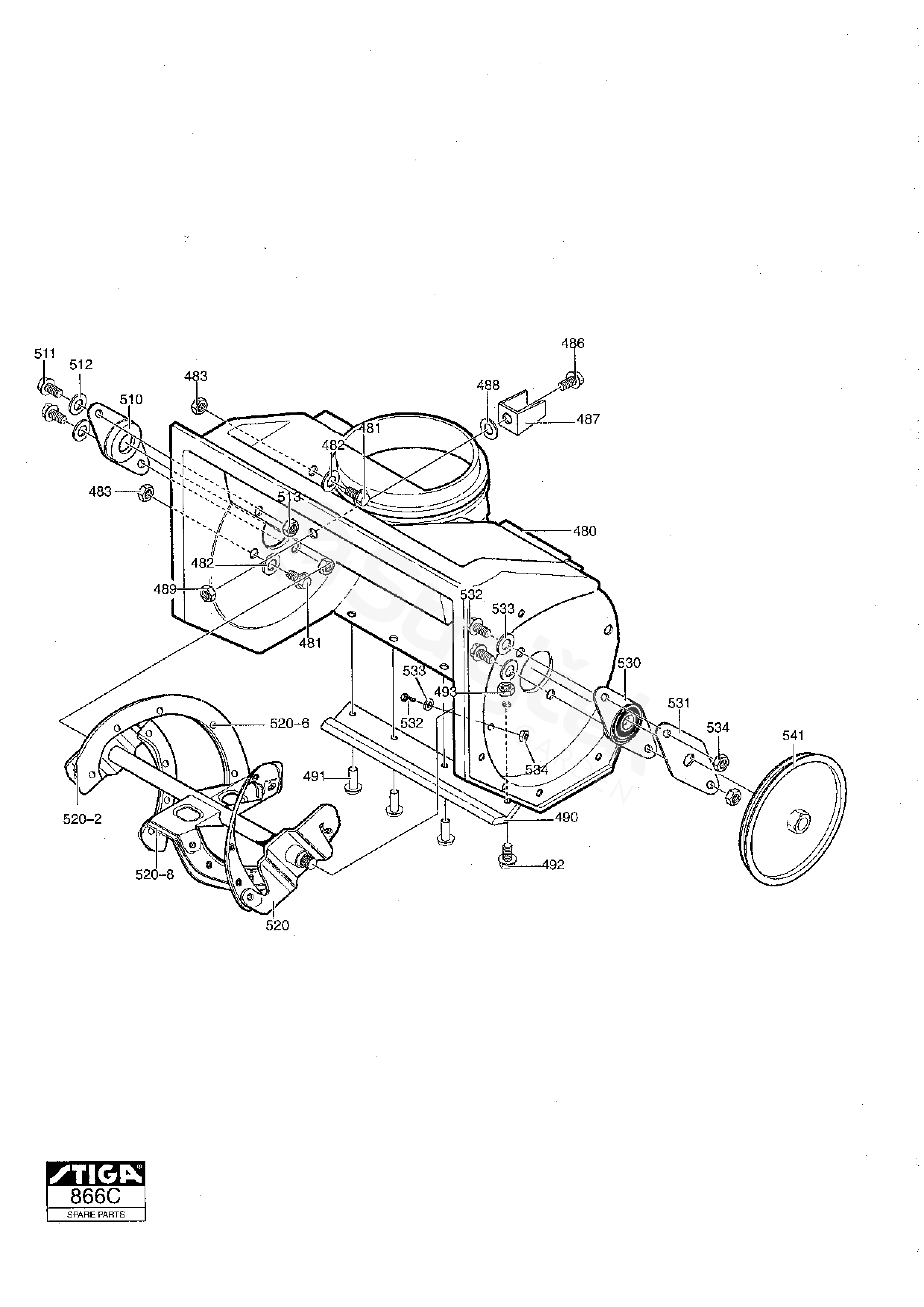

Housing, auger
SNOW MAX SNOW MAX (2002)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SNOW MAX (2002)
480 Auger Housing 1812-1503-01
481 Screw 9988-3519-16
482 Washer 9699-0028-02
483 Nut 1812-1758-01
490 Scraper Blade 1812-1481-01
491 Rivet 1133-1022-01
492 Screw 9988-3519-16
493 Nut 1812-1758-01
510 Flange Bearing 1133-1019-01
511 Screw 9988-3525-16
512 Washer 9699-0028-02
513 Nut 9727-3541-22
520 Auger Assy 1812-1488-01
530 Bearing & Plate 1133-0947-01
531 Bearing Retainer 1133-1000-01
532 Screw 9988-3516-16
533 Washer 9699-0028-02
534 Nut 1812-1758-01
541 Pulley 1812-1400-01
