Spare parts > STIGA > Engine > WM12.5 WM12.5 (2009) > Engine - ST. TRE0702
Back to

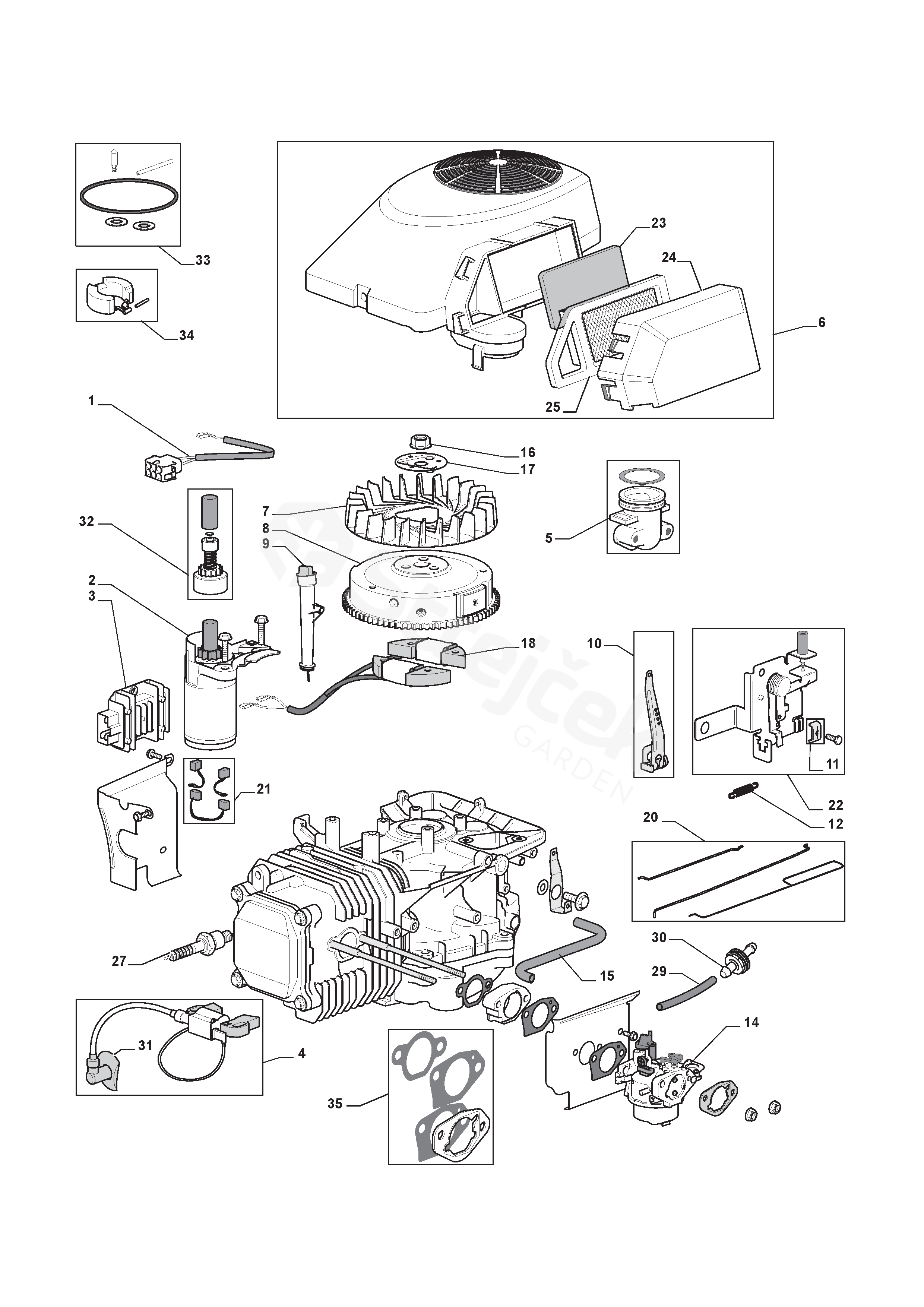

Engine - ST. TRE0702
WM12.5 WM12.5 (2009)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For WM12.5 (2009)
1 Output Wire, Rectifier 118550207/0
2 Start Motor Assy 118550214/0
3 Rectfier 118550208/0
4 Electronic Coil 118550209/0
5 Intake Manifold Assy 118550320/1
6 Cover Assy 118550319/0
7 Flywheel Fan 118550235/0
8 Flywheel Ass.Y 118550234/1
9 Oil Filler Assy 118550205/1
10 Arm Governor Assy 118550330/1
11 Casing Clamp 118550212/0
12 Spring 118550213/0
14 Carburetor 118550435/0
15 Breather Fuel Pipe 118550325/1
16 Nut 118550237/0
17 Starter Cup 118550236/0
18 Coil Assy, Charge 118550210/1
20 Governor Rod Assy 118550239/1
21 Brushhold 118550332/1
22 Remote Control Assy 118550331/1
23 Pre-Filter 118550527/0
24 Air Cleaner Cover 118550322/0
25 Air Filter 118550321/0
27 Spark Plug 9400-0244-00
29 Fuel Pipe 118550432/0
30 Fuel Filter 118550354/1
31 Spark Plug Terminal 118550448/0
32 Kit Repair 118550365/1
33 Carburettor Gasket Set 118550442/0
34 Kit Repair, Carburettor 118550440/0
35 Gasket Set 118550217/0
