Spare parts > Husqvarna > CHAIN SAWS > 365 H 365 H from 2016-10 - > CLUTCH & OIL PUMP
Back to

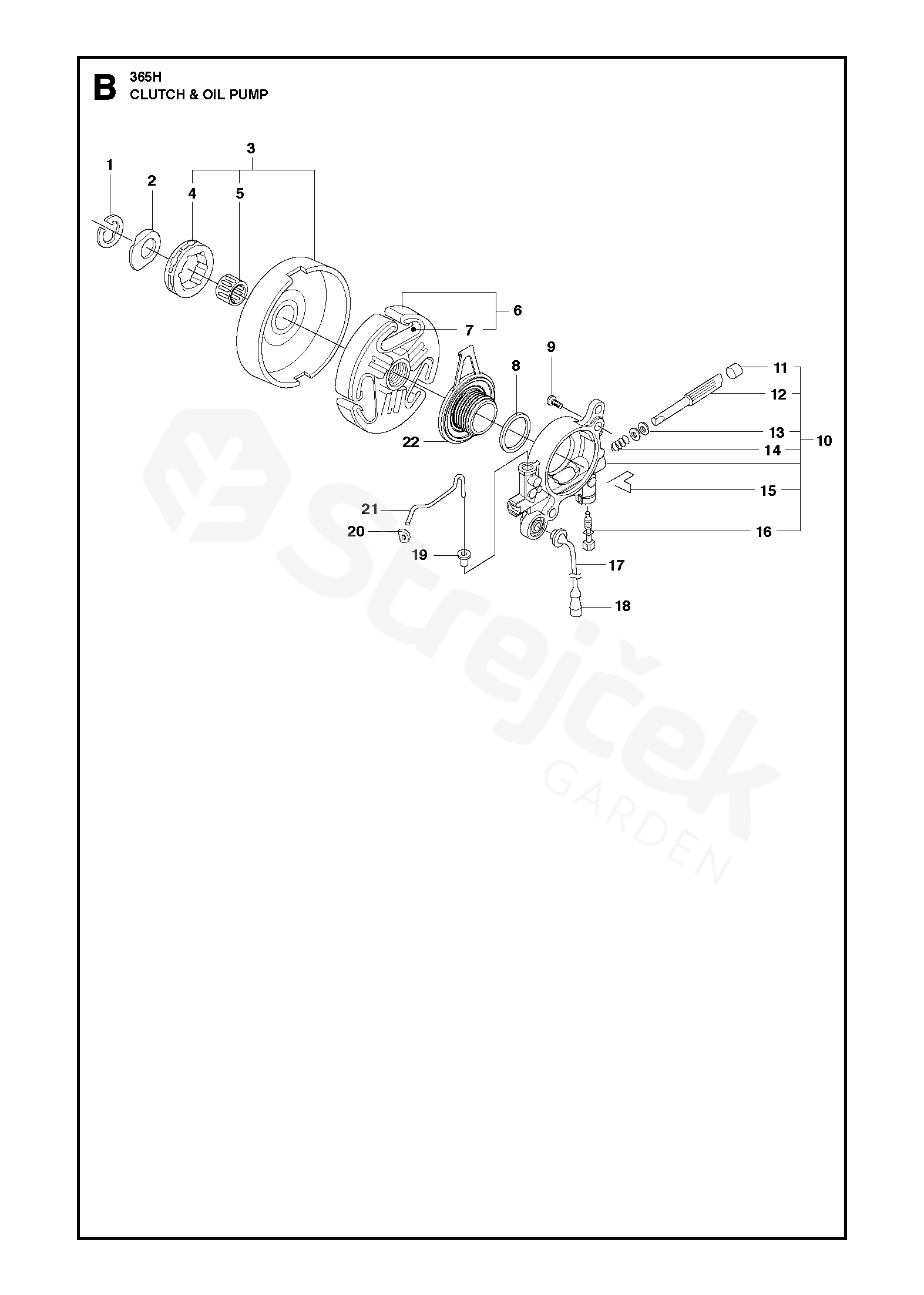

CLUTCH & OIL PUMP
365 H 365 H from 2016-10 -
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 365 H from 2016-10 -
1 E-CLIP 503272101
2 PODLOŽKA 503752401
3 CLUTCH DRUM ASSY "3/8""x8T"
"3/8""x8T" 		586980602
4 RÁFEK 3/8 x 8T
"3/8""x8T" 		505303661
5 DRŽÁK JEHLY 503432001
6 CLUTCH ASSY 586798401
7 CLUTCH SPRING 537360601
8 WASHER 503230059
9 SCREW IHSCM 725532956
10 OIL PUMP ASSY 503521303
11 SEALING PLUG 503624901
12 PÍST ČERPADLO 503521501
13 PODLOŽKA 503230004
14 PRUŽINA 501615801
15 PRUŽINA 503813001
16 PIN SCREW 503811301
17 OIL HOSE 503426701
18 OIL SCREEN 501544102
19 SEALING 504300026
20 INLET PIPE 503644701
21 OIL PIPE 503774301
22 PUMP PINION 537207807
