Spare parts
Everything for your machines
Spare parts
>
Alpina
>
Lawn Tractor
>
BT 84 BT 84 (2018) [2T2000404/ZE]
>

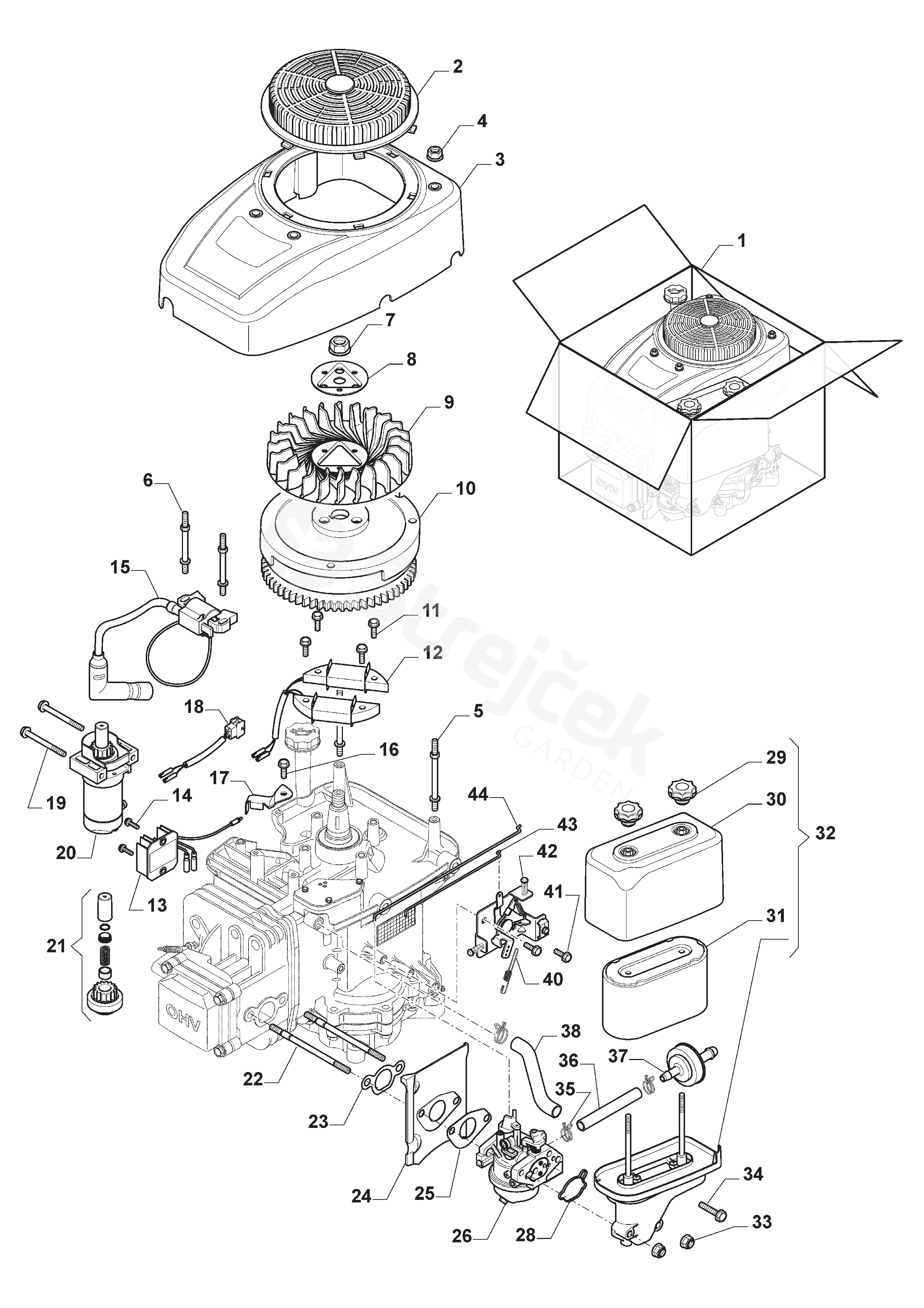

Engine - Starter Assy, Tank
Back to
BT 84
BT 84 (2018) [2T2000404/ZE]
Engine - Starter Assy, Tank
BT 84
BT 84 (2018) [2T2000404/ZE]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
BT 84 (2018) [2T2000404/ZE]
1
Engine Assembled
118551424/0
2
Cover Assy
118551409/0
3
Air Intake Grill
118551392/0
5
Stud Bolt
118551422/0
6
Stud Bolt
118551421/0
7
Nut
118551417/0
8
Starter Cup
118551408/0
9
Flywheel Fan
118550235/1
10
Flywheel Ass.Y
118551410/0
11
Screw
112792099/0
12
Coil Assy, Charge
118551411/0
13
Rectfier
118551413/0
14
Screw
9959-0616-16
15
Elettronic Coil
118551414/0
17
Plate
118551374/0
18
Output Wire, Rectifier
118551415/0
19
Screw
112692050/0
20
Start Motor Assy
118551412/0
21
Kit Repair
118551426/0
22
Stud Bolt
118551416/0
23
Carburetor Gasket
118551395/0
24
Guard
118551397/0
25
Carburetor Gasket
118551394/0
26
Carburettor
118551393/0
28
Carburetor Gasket
118551396/0
29
Knob
118551407/0
30
Air Cleaner Cover
118551405/0
31
Air Filter
118551406/0
32
Air Cleaner Assy
118551404/0
33
Nut
118550806/0
34
Screw
112674701/0
36
Fuel Pipe
118551420/0
37
Fuel Filter
118550427/0
38
Breather Pipe
118551419/0
40
Spring
118551400/0
42
Remote Control Assy
118551402/0
43
Choke Control Rod
118551398/0
44
Governor Link
118551399/0
