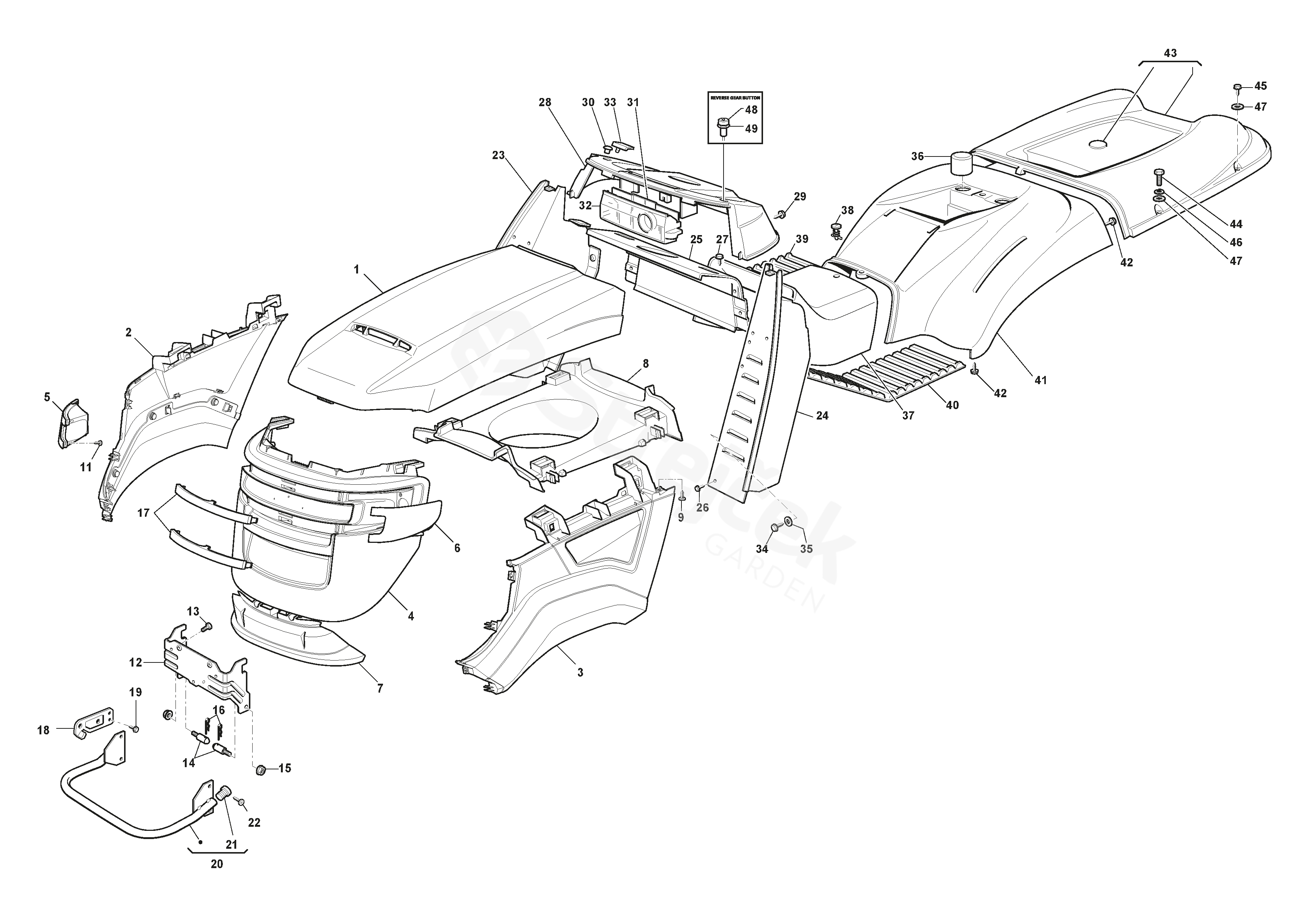

AT8 102 HW AT8 102 HW (2020)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For AT8 102 HW (2020)

1	Upper Engine Hood, Black	325077017/0
2	Bonnet Right Side Cover, Black	382394658/0
3	Bonnet Left Side Cover, Black	382394659/0
4	Hood Front, Black	325077018/0
5	Right Led Light Assy	382185500/1
6	Left Led Light Assy	382185501/1
7	Lower Black Hood, Front	325076870/1
8	Conveyor	325108031/0
9	Screw	112735403/0
11	Screw	112728691/0
12	Engine Hood Support	325774301/2
13	Screw	112735406/0
14	Pin	125510079/1
15	Nut	112293201/0
16	Cotter Pin	124487998/0
17	Frontal Moulding	325076956/0
18	Plate	325547159/1
19	Screw	112731580/0
20	Muffler Protection	382869025/0
21	Cap	118737860/0
22	Screw	112735120/0
23	Right Dashboard Support	382785022/10
24	Left Dashboard Support	382785021/9
25	Central Dashboard Support	382785137/1
26	Screw	112735654/0
27	Screw	112735110/0
28	Black Dashboard	325120278/0
29	Screw	112728440/0
30	Cap Not for Electronic Card - TX/TS	125120200/0
31	Rear Card Protection Not for Electronic Card - TX/TS	125600009/0
32	Protection	125600051/0
33	Grommet	125260000/0
34	Screw	112735654/0
35	Washer	112521330/0
36	Cap	325122000/2
37	Cover (Hydro)	325110395/0
38	Stake	125580020/2
39	Right Footboard Cover	125110270/0
40	Left Footboard Cover	125110260/2
41	Wheels Cover (Hydro)	325109778/0
42	Screw	112735420/0
43	Grass-Catcher Cover	382110287/0
44	Screw	112674701/0
45	Screw	112729601/1
46	Grower	112582101/0
47	Washer	112521331/0
48	Push Button Reverse Gear	325605003/0
49	Screwed Ring	325256250/0
