Spare parts > Alpina > Lawn Tractor > BT 102 HCB BT 102 HCB (2012) > Transmission with Electromagnetic Clutch
Back to

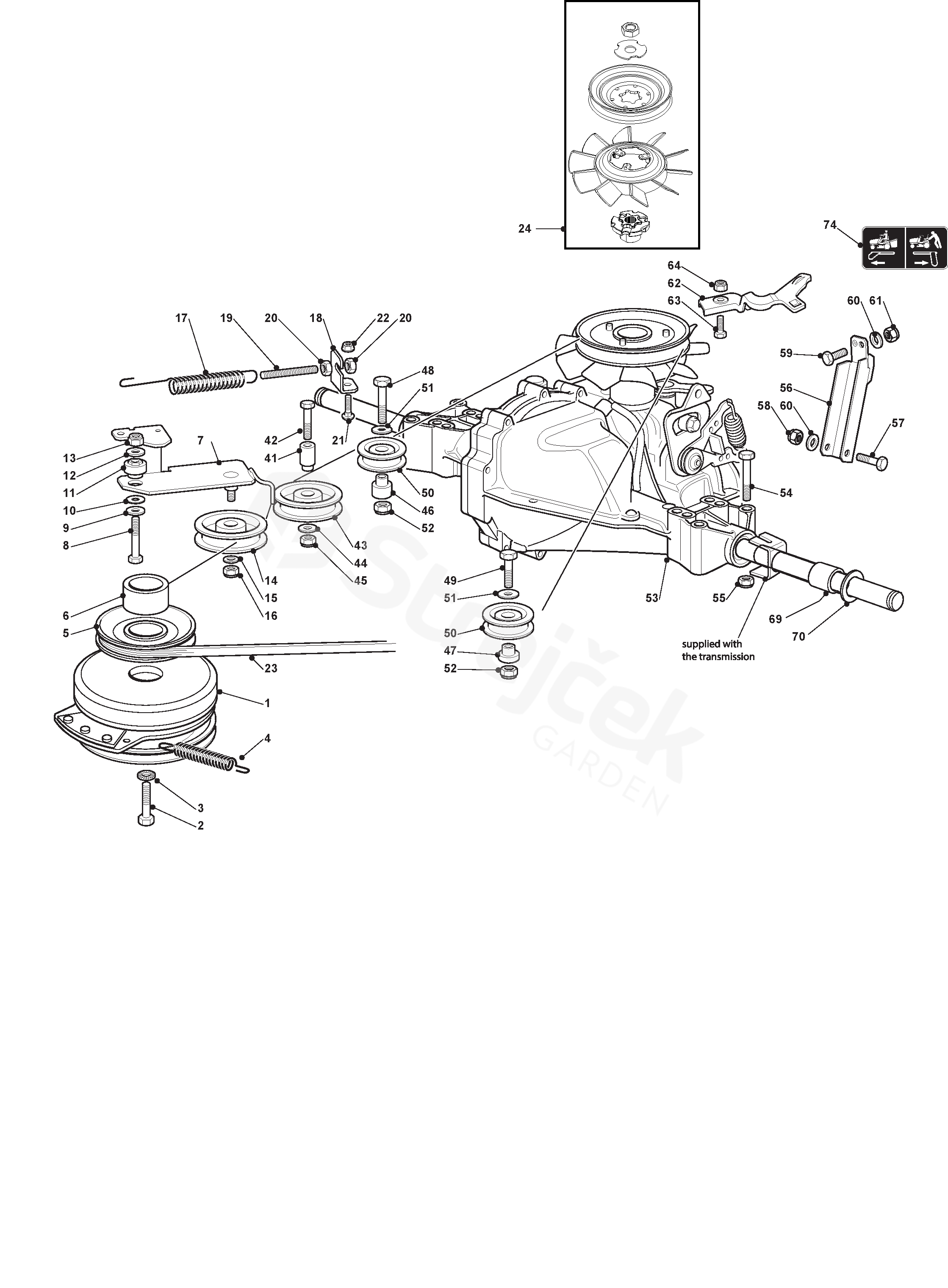

Transmission with Electromagnetic Clutch
BT 102 HCB BT 102 HCB (2012)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For BT 102 HCB (2012)
1 Electromagnetic Clutch 118399062/0
2 Screw 112737320/0
3 Washer 112543000/0
4 Tension Spring 122430216/0
5 Pulley 125601577/0
6 Spacer 125160021/0
7 Lever 382318217/0
10 Antifriction Washer 327670055/0
11 Pin 125510087/0
12 Washer 112523060/0
13 Nut 112155000/0
14 Pulley 125601554/0
17 Spring 125430260/0
18 Bracket 325755049/0
19 Tie Rod 125840005/0
20 Nut 112293200/0
21 Screw 9897-0820-16
22 Nut 112293201/0
23 Belt 135062019/0
24 Fan Kit 118802723/0
41 Pin 125160081/0
42 Screw 112691400/0
43 Pulley 125601555/0
46 Right Spacer 125160024/2
47 Left Spacer 125160018/1
49 Screw 112691115/0
50 Pulley 125601588/0
51 Washer 122671653/0
53 Rear Axle (Hydro-Gear T2-Adbf-2X3C-17X1) 118400919/2
54 Screw 112691600/0
55 Nut 112154210/0
56 Support 382785201/0
57 Screw 112691700/0
59 Screw 112793701/0
62 Lever 325318257/0
63 Screw 112791213/1
69 Spacer 125160058/0
70 Washer 125670005/2
74 Label 114361451/0
