Spare parts > Husqvarna > CHAIN SAWS > 242 242, 1990-01 > CRANKCASE
Back to

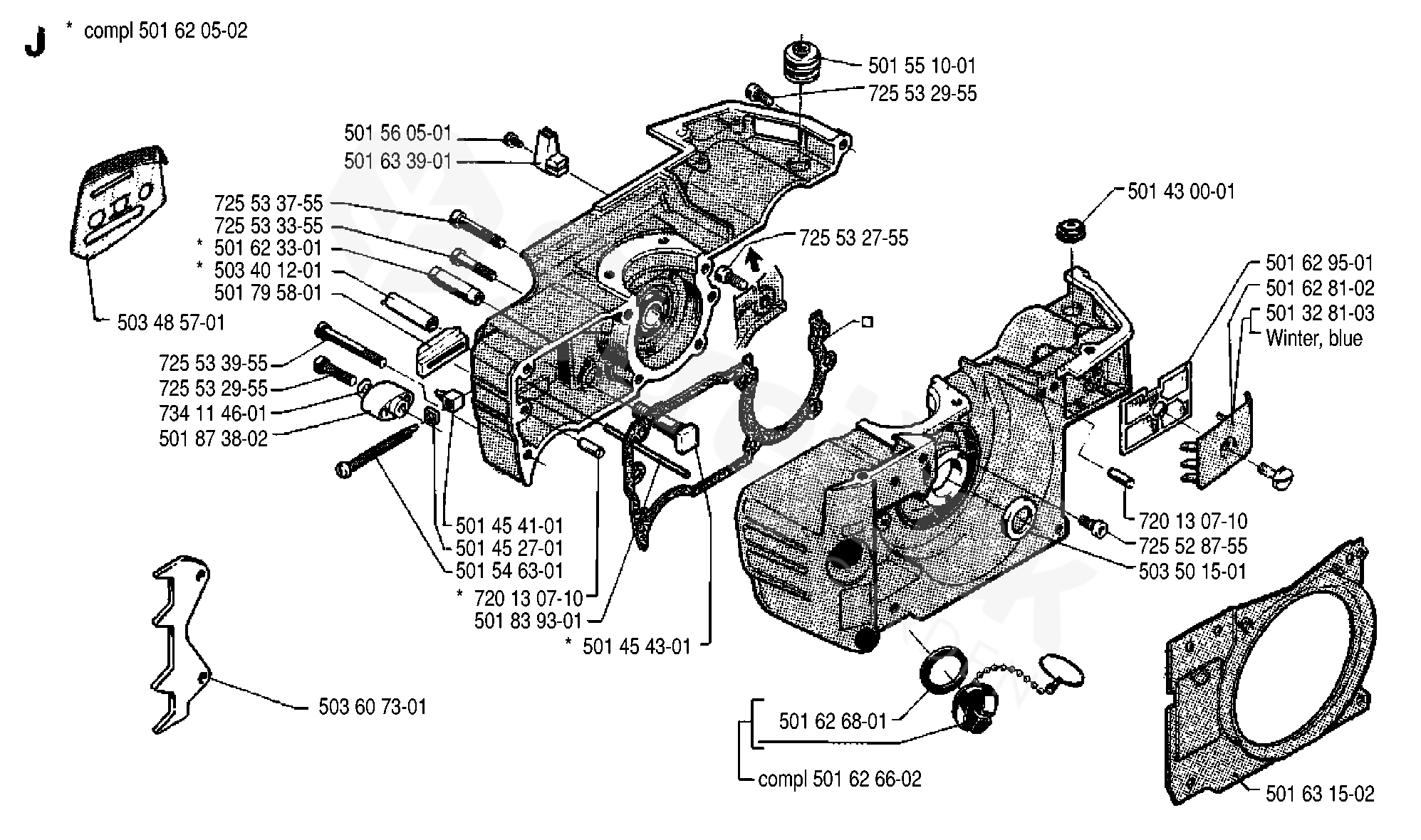

CRANKCASE
242 242, 1990-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 242, 1990-01
501328103 WINTER, BLUE 501328103
501430001 CABLE GROMMET 501430001
501452701 LOCKING NUT 501452701
501454101 MATICE 501454101
501454301 BAR BOLT 501454301
501546301 SCREW 501546301
501551001 SEALING 501551001
501560501 SCREW 501560501
501620502 CRANKCASE ASSY 501620502
501623301 ČEP PRUŽINY 501623301
501626602 TANK 501626602
501626801 GASKET 501626801
501628102 HUB CAP 501628102
501629501 PREFILTER ASSY 501629501
501631502 LEDSKENA KYLLUFT 501631502
501633901 INSULATING PIECE 501633901
501795801 CHAIN GUIDE 501795801
501839301 OIL TANK VENT 501839301
501873802 CHAIN CATCHER 501873802
503401201 SPRING PIN 503401201
503485701 CHAIN GUIDE PLATE 503485701
503501501 SEALING RING 503501501
503607301 SPIKE 503607301
720130710 PARALELNÍ KLÍN 720130710
725528755 SCREW IHSCM 725528755
725532755 SCREW IHSCM 725532755
725532955 SCREW IHSCM 725532955
725533355 SCREW IHSCM 725533355
725533755 SCREW IHSCM 725533755
725533955 SCREW IHSCM 725533955
734114601 PODLOŽKA 734114601
