Spare parts > Alpina > Trimmer/Brushcutter > TR 1000 TR 1000 (2004) > Electric grass trimmer
Back to
Electric grass trimmer
TR 1000 TR 1000 (2004)

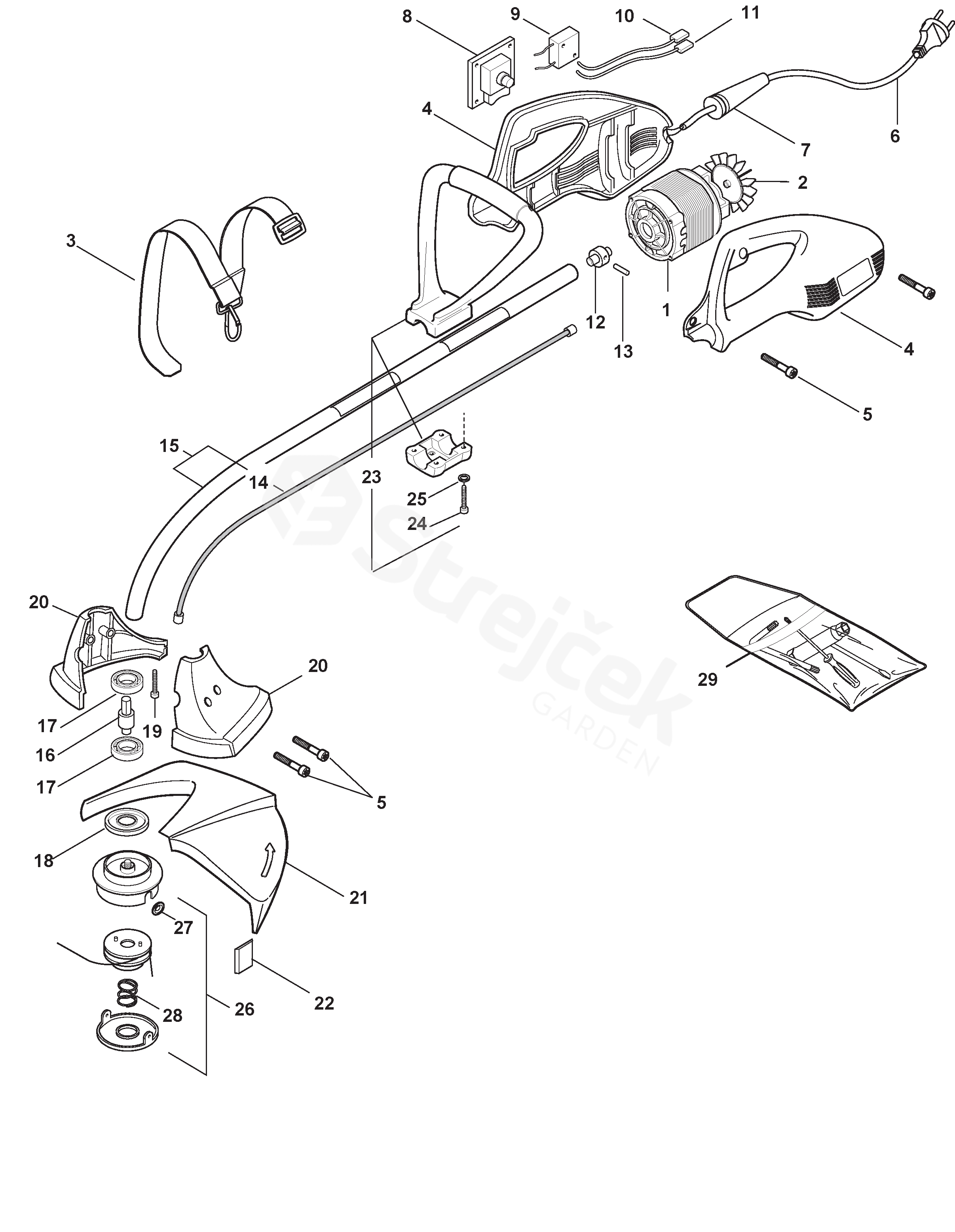

Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TR 1000 (2004)
1 Engine assy 8253840
2 Fan 4564000
3 Brace 4253420
4 Semi-Handgrips Yellow 8563210
5 Screw 2123210
6 Power Cord Assy 3211540
7 Cord Protector 3744767
8 Switch 3211200
9 Capacitor 3211210
10 Long Engine Switch Cable, Male
F 		3211300
11 Short Engine Switch Cable, Male
F 		3211310
12 Flexible Transm. Shaff Joint 3750200
13 Elastic Plug 3314170
14 Flexible shaft 4253830
15 Transmission Tube Ass.Y 4252180
16 Head Shaft 3643020
17 Ball Bearing 3112280
18 Upper Ring Nut 3614630
19 Screw 2123100
20 Head Half-Casing Set 8563240
21 Splash Guard 4563237
22 Line Cutter Blade 3614640
23 Front Handgrip Assy 8250360
24 Screw 2123110
25 Flat washer 2312090
26 Nylon Head Assy 6031074
27 Bushing 6031072
28 Ressort Tete Fil 6031073
29 Torx Wrench 4181070
