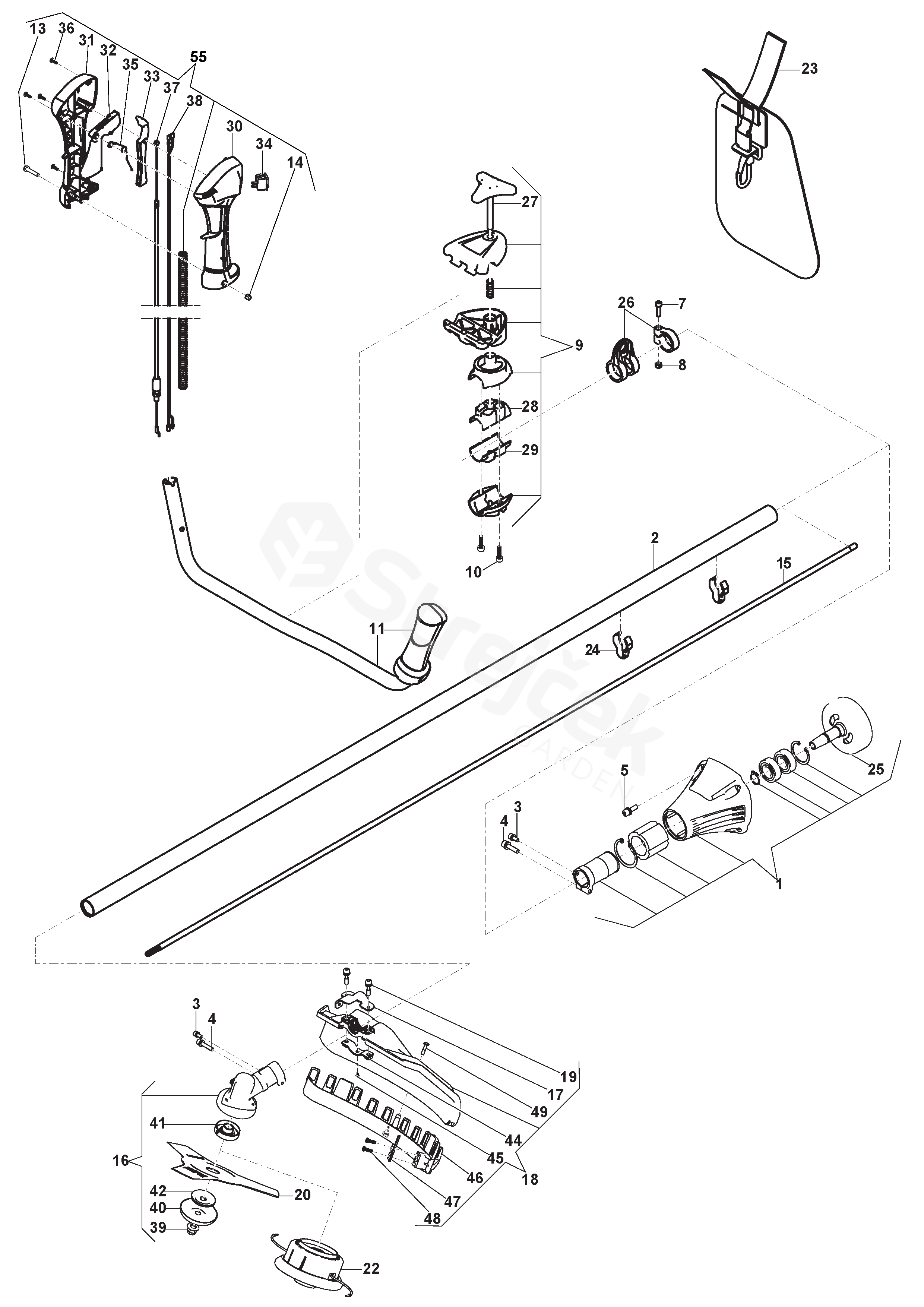

B 32 D B 32 D (2017)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For B 32 D (2017)

1	Support Transmission Assy	118804001/0
2	Transmission Pipe	118803960/0
3	Screw	6981145
7	Screw	112760475/0
8	Nut	112291000/0
9	Handle Support	118803209/0
10	Screw	112727801/0
11	Left Handgrip	118803210/0
13	Screw	2135120
14	Nut	112154330/0
15	Drive Shaft	118804042/0
16	Gear case assy	118801184/0
17	Plate	118804054/0
18	Safety Cover Assy	118803954/0
19	Screw	2132180
20	3 Teeth Disc	118801125/0
22	2 Hedges Nylon Head	118801124/0
23	Harness	118804015/1
24	Wire Clamp	118804066/0
25	Clutch Drum	118804037/0
26	Harness Support	118801182/0
27	Knob	118804062/0
28	Upper Handgrip Support	118804017/0
29	Lower Handgrip Support	118804029/0
30	White Left Handgrip	118803974/0
31	White Right Handgrip	118803964/0
32	Trigger	118803221/0
33	Safety Lever	118803219/0
34	Switch	118803213/0
35	Spring	118803220/0
36	Screw	112727810/0
37	Throttle Cable	118803986/0
38	Stop Wire	118803217/0
39	Nut	2452090
40	Case Dust Cover	118803206/0
41	Upper Ring Nut	118803204/0
42	Lower Ring Nut	118803205/0
44	Guard	118804058/0
45	Screw	112727815/0
46	Support	118803202/0
47	Line Cutter Blade	118804056/0
48	Screw	6981149
49	Screw	112728531/0
55	Handle Assy, Yellow	118804955/0
