Spare parts
Everything for your machines
Spare parts
>
Alpina
>
Trimmer/Brushcutter
>
BK 35 ED BK 35 ED (2016)
>
Transmission
Back to
BK 35 ED
BK 35 ED (2016)
Transmission
BK 35 ED
BK 35 ED (2016)

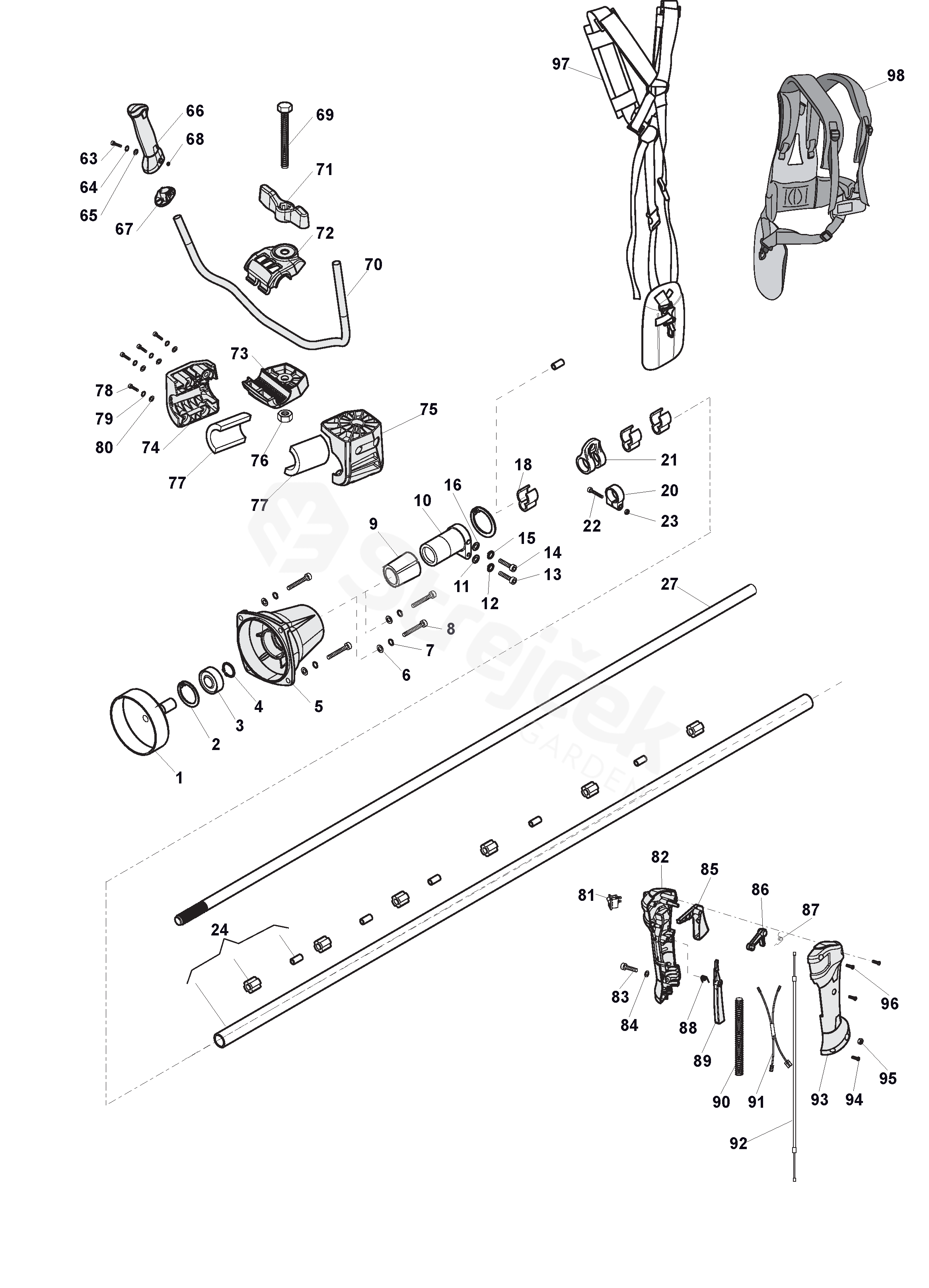

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
BK 35 ED (2016)
1
Clutch Drum
118802495/0
2
Seeger
112610800/0
3
Bearing
119216048/0
4
Seeger
112609200/0
5
Output Block
118802492/0
9
Bumper
118802493/0
10
Sleeve
118802494/0
11
Washer
112521330/0
13
Screw
2132180
14
Screw
2135010
15
Washer
112521320/0
18
Wire Buckle
118802596/0
20
Ring
118802588/0
21
Harness Support
118802587/0
22
Screw
112760475/0
23
Nut
112291000/0
24
Transmission Tube Ass.Y
118802491/0
27
Transmission Shaft
118802457/0
63
Screw
2122520
66
Left Handgrip
118802563/0
67
Handgrip Support
118802564/0
69
Screw
112691900/0
70
Handlebar
118802482/0
71
Knob
118802489/0
72
Handle Cover
118802485/0
73
Lower Handle Cover
118802486/0
74
Handlebar holder, Right
118802488/0
75
Handlebar holder, Light
118802487/0
76
Nut
112293200/0
77
Rubber pad
118802490/0
81
Switch
118800202/0
82
Handle Cover, Left Part
118802557/0
83
Screw
2123110
85
Trigger
118802558/0
86
Adjustment Lever
118802559/0
87
Torsion Spring
118802560/0
88
Torsion Spring
118802562/0
89
Safety Lever
118802561/0
90
Conductor casing
118802484/0
91
Earth Cable
118802598/0
92
Throttle Cable
118802483/0
93
Handle Cover, Right Part
118802556/0
94
Screw
112735105/0
95
Nut
112154330/0
96
Screw
123878020/0
97
Harness
118801312/1
98
Harness
123046002/0
