Alpina
>
Trimmer/Brushcutter
>
CB 34 D CB 34 D (2010)
>
Handle-transmission
Back to
CB 34 D
CB 34 D (2010)
Handle-transmission
CB 34 D
CB 34 D (2010)

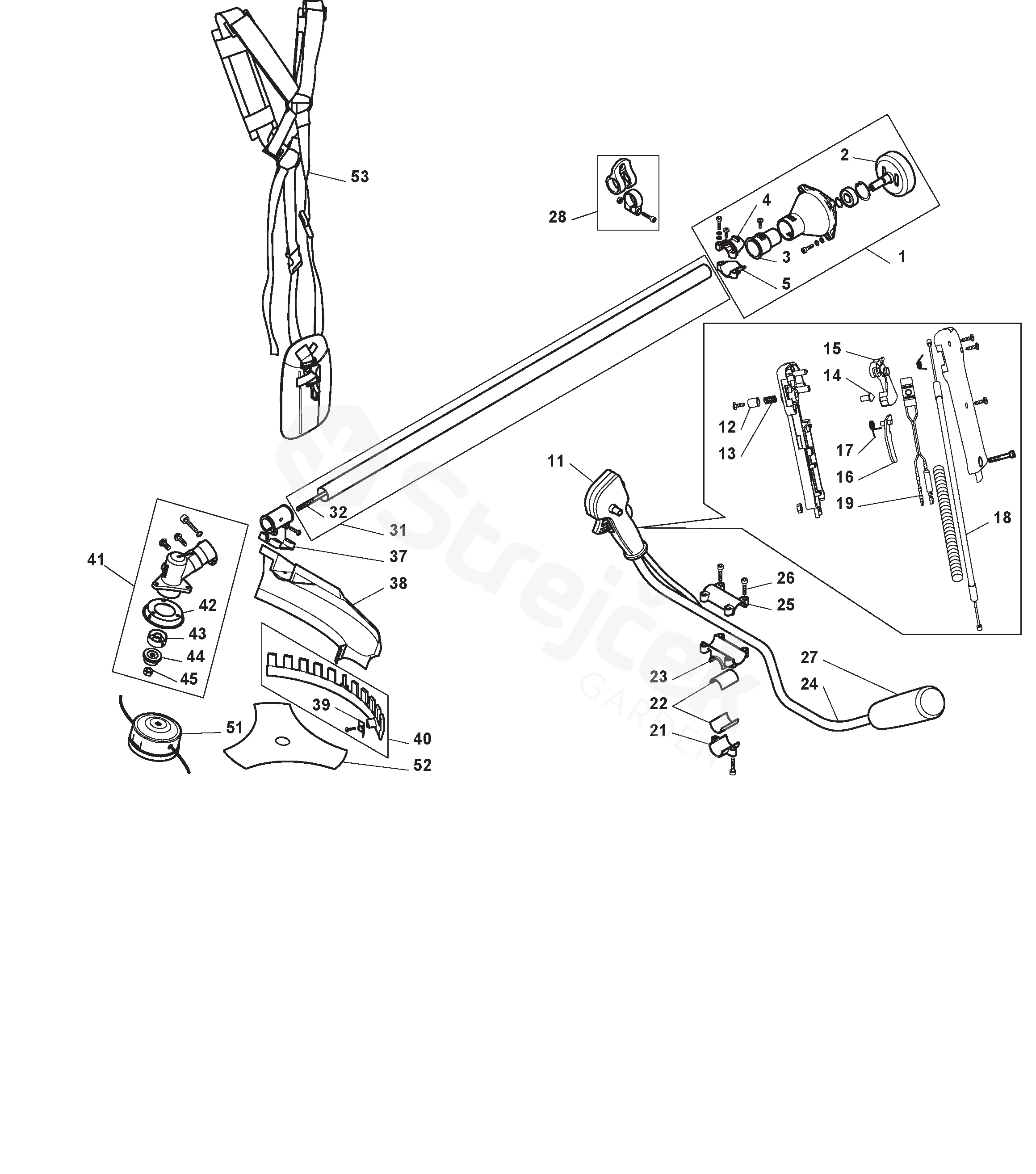

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
CB 34 D (2010)
1
Support Transmission Assy
183785004/0
2
Clutch Drum Assy
123050012/0
3
Grommet
123275036/0
4
Support
123720005/0
5
Support
123720004/0
11
Handle Assy
183300026/0
12
Knob
123593511/0
13
Spring
123430613/0
14
Pin
123510100/0
15
Throttle Lever
123315103/0
16
Safety Lever
123315102/0
17
Spring
123430614/0
18
Throttle Cable
123066025/0
19
Switch
183303001/0
21
Lower Support
123052002/0
22
Reduction
123655004/0
23
Handgrip Support
123784013/0
24
Handle
123394000/0
25
Upper Handgrip Support
123052001/0
26
Screw
123878129/0
27
Knob
123395054/0
28
Harness Support
183780002/0
31
Assy Transm. Tube+Flex
183869073/0
32
Trasmission Shaft
123020038/0
37
Support
123784012/0
38
Safety Cover
123465007/0
39
Line Cutter Blade
123311013/0
40
Guard
183600055/0
41
Gear case assy
183820507/0
42
Guard
123670002/0
43
Upper Ring Nut
123250002/0
44
Lower Ring Nut
123250003/0
45
Nut
123120015/0
51
2 Hedges Nylon Head
123155009/0
52
3 Teeth Disc
123155010/0
53
Harness
118801122/0
