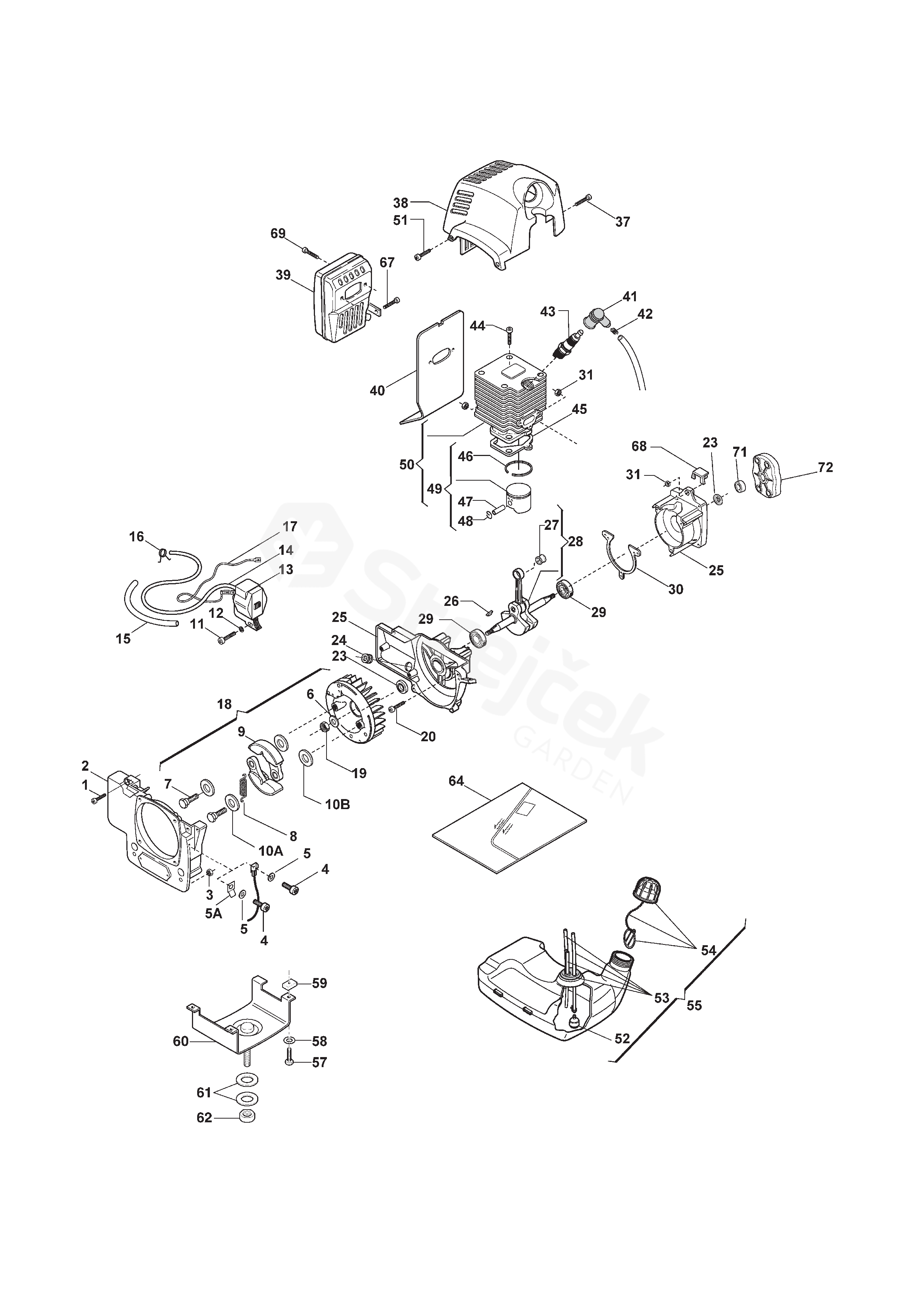

Spare parts - Partlist - STAR 55 FP STAR 55 FP (2011) - Engine

Everything for your machines

STAR 55 FP STAR 55 FP (2011)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For STAR 55 FP (2011)

1	Screw	2135040
2	Transmission Support Case	323208409/0
3	Nut	2461030
4	Screw	2132500
5	Faston (Flex) Pos. 5A	3211420
6	Washer	2350040
7	Screw	2653213
8	Clutch Spring	3654220
9	Clutch Unit	3L3660500/1
10	Outher Clutch-Mass Guide Plate Pos. 10A	3615020
11	Screw	2135060
12	Washer	2321150
13	Electronic Coil	123044001/0
14	Spark Plug Cable	3211080
15	Wire Sheath	3782470
16	Clamp	3657450
17	Earth Cable	3211415
18	Flywheel Ass.Y	3L8252510/1
19	Nut	2412100
20	Screw	2135130
23	Seal Ring	3121120
24	Grommet	3745130
25	Crankcase	383084000/0
26	Flywheel Key	3151050
27	Needle Bearing	3114190
28	Crankshaft	8251440
29	Ball Bearing	3112040
30	Crankcase Gasket	3724120
31	Nut	2432040
37	Screw	2135030
38	Yellow Cylinder Cover	4563880
39	Muffler	3L4122170/1
40	Muffler Gasket	3724380
41	Spark Plug Cap	3744850
42	Spark Plug Spring	3657530
43	Spark Plug	3210024
45	Cylinder Gasket	3724130
46	Piston Ring Ø 45	3123110
47	Piston Pin	3158080
48	Circlip	3356020
49	Piston Assy Ø 45	8540960
50	Cyl-Pist Ø 45 (Incl.49)	3L8540970/1
52	Intake Filter	4253290
53	Grommet Assy	8745542
54	Fuel Cap Assy	8741370
55	Fuel Tank Assy	3L4252620/1
60	Engine Support Flange	4121957
61	Washer	2330060
62	Nut	2412180
64	Gasket Set	3L8724380/1
67	Screw	2135180
68	Spacer	3750537
71	Spacer	123160051/0
72	Starter Cup	383082000/0
