Spare parts > Alpina > Trimmer/Brushcutter > TB 23 TB 23 (2004) > Handle-transmission
Back to

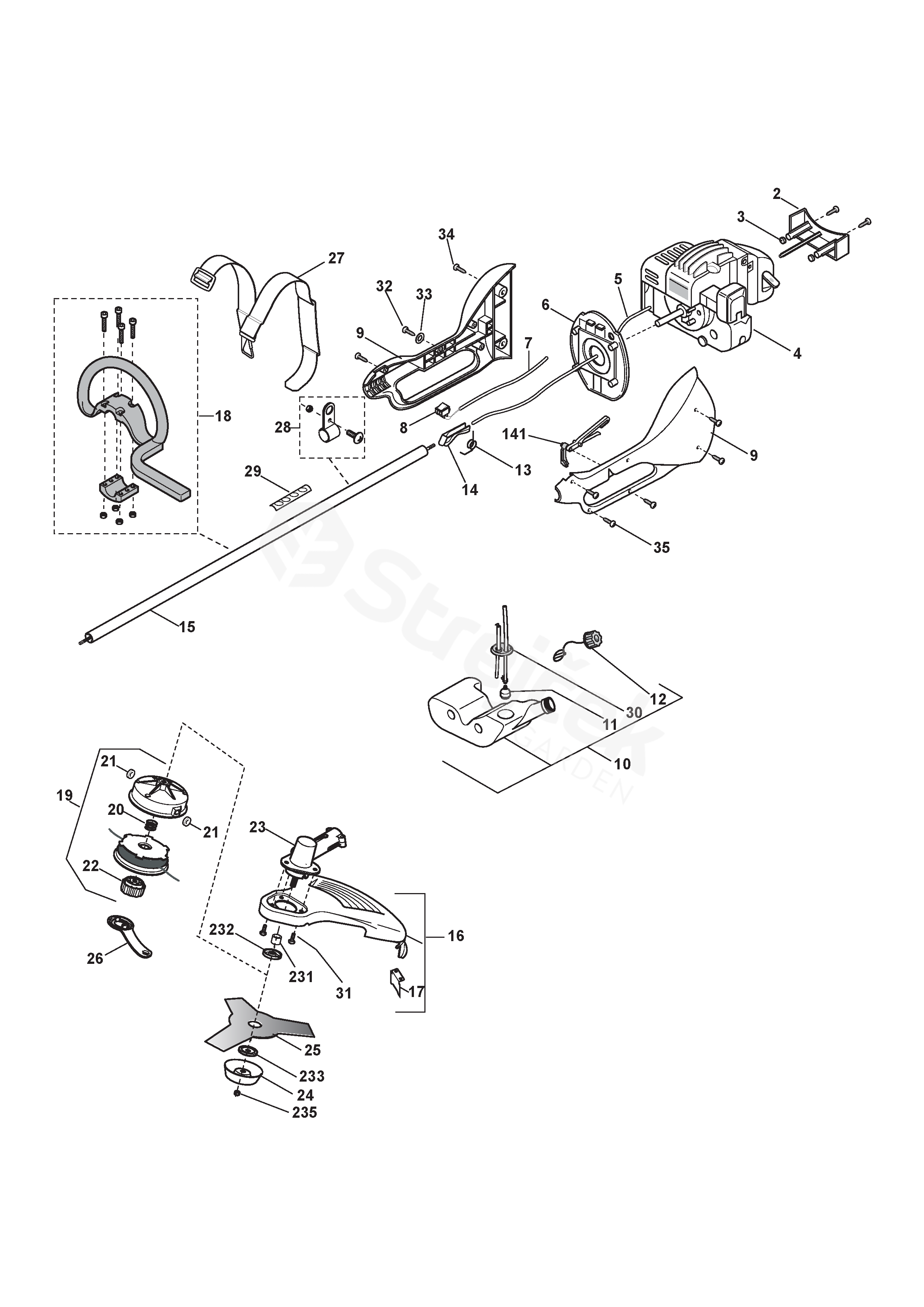

Handle-transmission
TB 23 TB 23 (2004)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TB 23 (2004)
2 Fixed Plate 6980200
3 Isolator 6980201
4 Engine Assembled 6980230
5 Throttle Cable 6980318
6 Cover 6980204
7 Earth Cable 6980205
8 Switch 6980328
10 Fuel Tank Assy 6980208/1
11 Fuel Pick-Up 6980209
12 Cap Ass'Y,Fuel Tank 6980320
13 Spring 6980211
14 Trigger 6980322
15 Shaft And Flex Ass' Y 6980301
16 Safety cover Ass.Y 6980302
17 Kit, Knife 6980215
18 Handle Assy 6980303
19 Cutting Line Assy 6980300
20 Spring 6980304
21 Inlet 6980305
22 Knob AssY 6980332
23 Gear case assy 6980306
24 Stabilizer 6980312
25 3 Teeth Disc 6980330
26 Nylon Head Key 6980314
27 Harness 6980315
28 Harness Support 6980316
29 Label 6980317
30 Grommet Assy 6980331
31 Screw 2135180
32 Screw 6980333
33 Washer 6980334
34 Screw 6980335
35 Screw 6980336
141 Safety Lever 6980324
231 Collar 6980307
232 Upper Ring Nut 6980308
233 Lower Ring Nut 6980309
235 Nut 6980311
