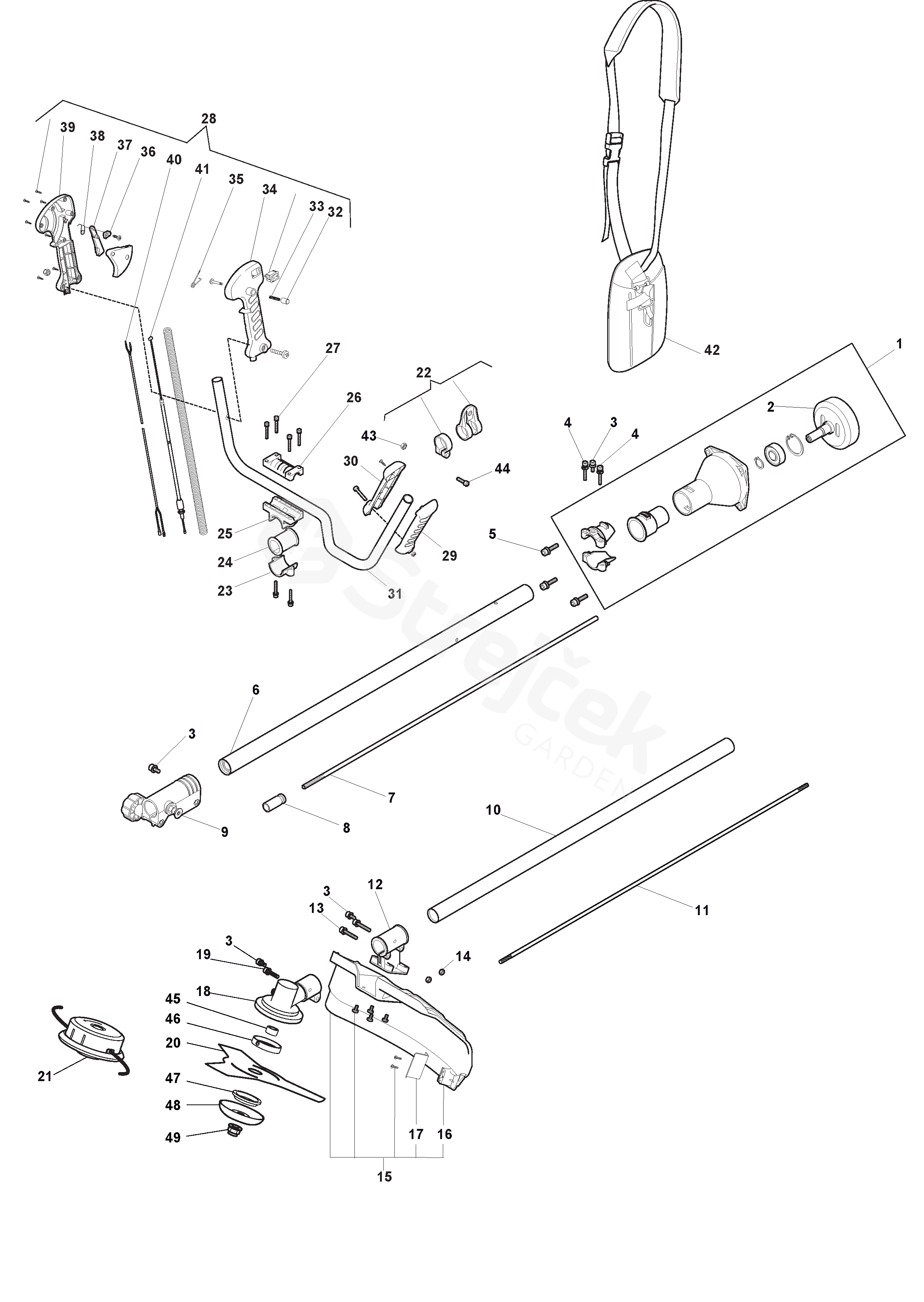

TB 250 JD TB 250 JD (2013)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For TB 250 JD (2013)

1	Support Transmission Assy	118802062/0
2	Clutch Drum	118802094/0
3	Screw	2135180
4	Screw	2135060
5	Screw	2132180
6	Transmission Tube	118802100/0
7	Trasmission Shaft	118802057/0
8	Shaft Connector	118802059/0
9	Connector Assy	118802099/0
10	Transmission Tube	118802112/0
11	Trasmission Shaft	118802058/0
12	Support	118801205/0
13	Screw	2135050
14	Nut	112154320/0
15	Safety cover Ass.Y	118802063/0
16	Guard	118802064/0
17	Line Cutter Blade	118802065/0
18	Gear case assy	118801184/0
19	Screw	2132180
20	3 Teeth Disc	118801125/0
21	2 Hedges Nylon Head	118801124/0
22	Harness Support	118801182/0
23	Lower Support	118801412/0
24	Reduction	118801413/0
25	Handgrip Support	118801414/0
26	Upper Handgrip Support	118801415/0
27	Screw	2135060
28	Right Handgrip	118802167/0
29	Left Handgrip	118801405/0
30	Right Handgrip	118801406/0
31	Handle	118801409/0
32	Button	118801410/0
33	Spring	118801411/0
34	Left Handgrip	118801407/0
35	Spring	118801404/0
36	Trigger lock block	118801403/0
37	Lock Rod	118801402/0
38	Spring	118801401/0
39	Right Handgrip	118801408/0
40	Coil-Switch Cable	118801399/0
41	Throttle Cable	118801400/0
42	Harness	118801185/0
43	Nut	112154320/0
44	Screw	2135020
45	Spacer	118803203/0
46	Upper Ring Nut	118803204/0
47	Lower Ring Nut	118803205/0
48	Case Dust Cover	118803206/0
49	Nut	2452090
