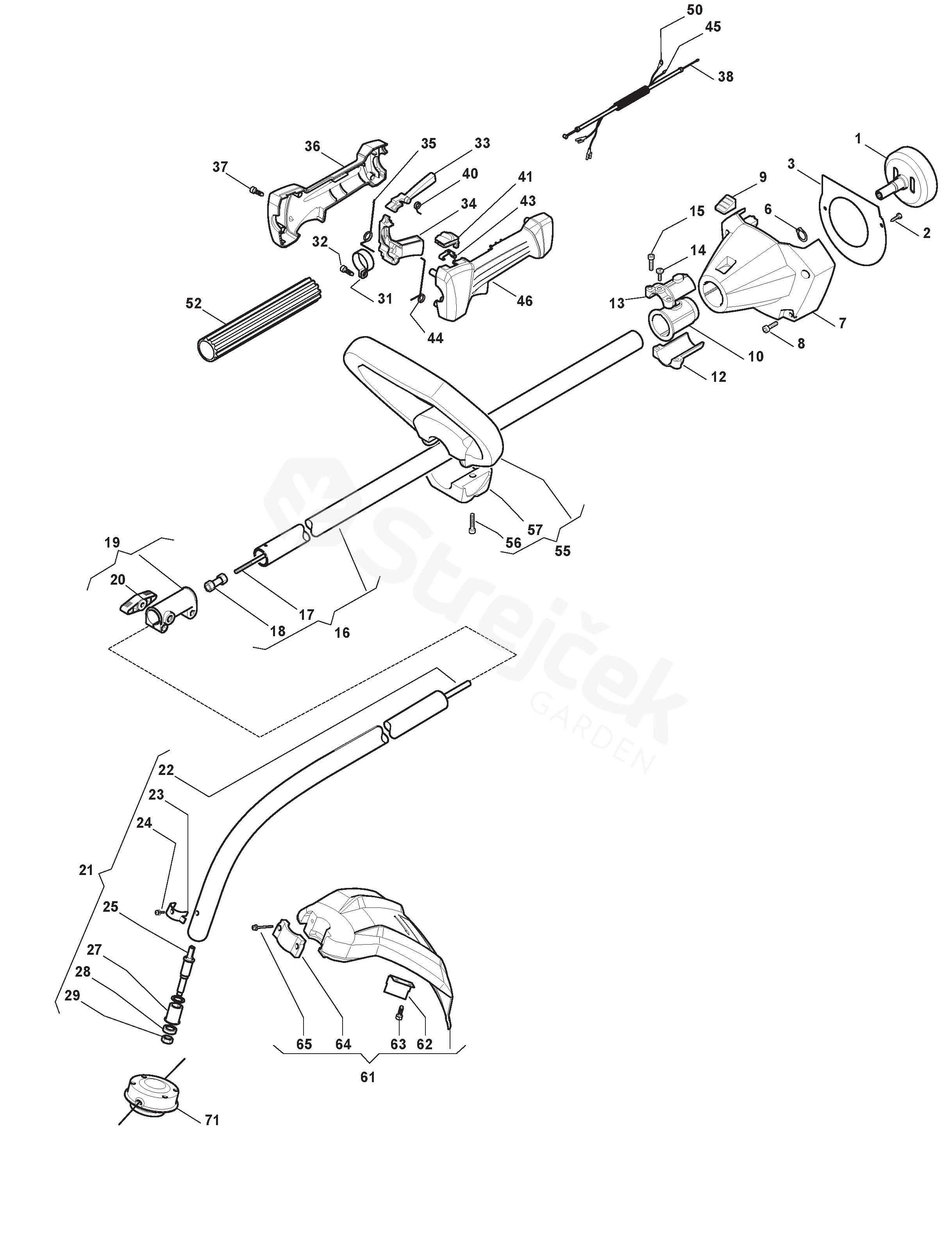

T 28 J T 28 J (2013)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For T 28 J (2013)

1	Clutch Drum Assy	123050011/0
2	Screw	112727815/0
3	Guard	118801235/0
6	Seeger	112609200/0
7	Clutch Case White	118801234/0
8	Screw	2135131
9	Button	118801236/0
10	Reduction	118801308/0
12	Support	118801307/0
13	Support	118801306/0
14	Screw	112788910/0
15	Screw	2135060
16	Assy Transmission Tube	183869072/0
17	Trasmission Shaft	118801343/0
18	Joint Chair Assy	118801344/0
19	Connecting Head Assy	183260002/0
20	Knob	123593510/0
21	Assy Transmission Tube	118801376/0
22	Flexible shaft	118801352/0
23	Plate	123650111/0
24	Screw	2135020
25	Head Shaft	118801326/0
27	Joint Chair Assy	118801351/0
28	Oil seal	118801350/0
29	Nut	118801346/0
31	Clamp	118801337/0
32	Screw	112789000/0
33	Safety Lever, Red	118801335/0
34	Throttle Lever, Red	118801336/0
35	Spring	118801334/0
36	Right Handgrip,White	118801332/0
37	Screw	112735105/0
38	Throttle Cable	118801354/0
40	Spring	118801333/0
41	Stop Knob,Red	118801329/0
43	Stop Plate	118801330/0
44	Spring	118801338/0
45	Stop Wire	118801328/0
46	Left Handgrip,White	118801331/0
50	Stop Wire Adapter	118801322/0
52	Spacer	123170004/0
55	Front Handle Ass.Y	118801347/0
57	Screw	118801348/0
61	Lower Support	118801349/0
63	External Bracket	123052003/0
64	Line Cutter Blade	123311012/0
65	Screw	112728450/0
71	2 Hedges Nylon Head	123155008/0
