Spare parts > Alpina > Trimmer/Brushcutter > TR 250 J TR 250 J (2014) > Handle-transmission
Back to

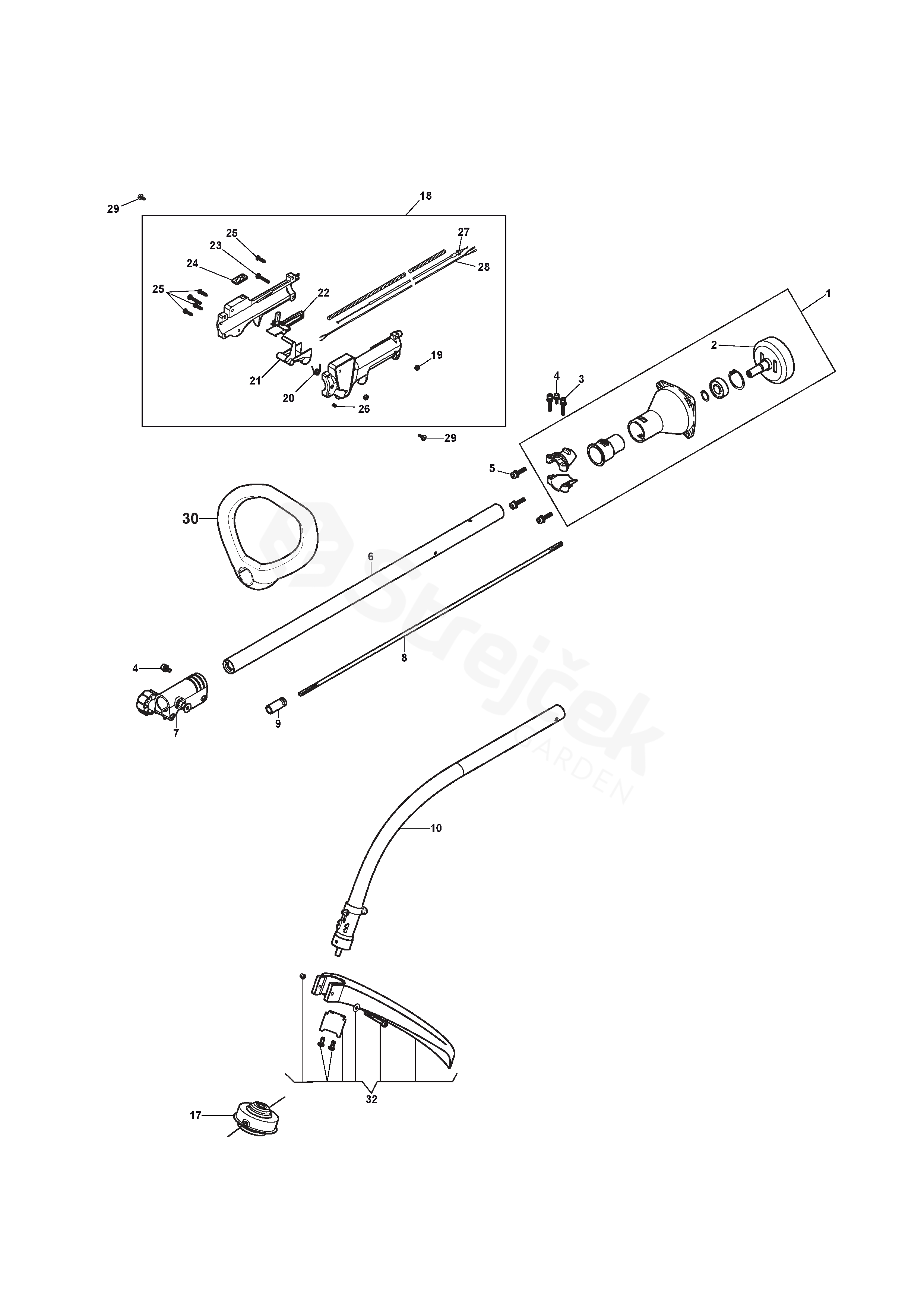

Handle-transmission
TR 250 J TR 250 J (2014)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TR 250 J (2014)
1 Support Transmission Assy 118802060/0
2 Clutch Drum 118802095/0
3 Screw 2135060
4 Screw 2135180
5 Screw 2132180
6 Transmission Pipe 118803057/0
7 Joint Chair Assy 118802098/0
8 Transmission Shaft Ass.Y 118802052/0
9 Connecting Head Assy 118802114/0
10 Curved Transmission Shaft Assy 118803477/0
17 Line Cutting Head 118801753/0
18 Handle Assy 118802103/0
19 Nut 112154320/0
20 Spring 118802104/0
21 Trigger 118802105/0
22 Safety Lever 118802106/0
23 Screw 2135060
24 Switch 118802107/0
25 Screw 112728099/1
26 Retainer 118802088/0
27 Throttle Cable 118802108/0
28 Stop Wire 118802109/0
29 Screw 112727815/0
30 Front Handle 118803056/0
32 Safety Cover Assy 118803476/0
