Spare parts
Everything for your machines
Spare parts
>
Alpina
>
Hedgecutter
>
H 5648 Li H 5648 Li (2015) [273560100/A15]
>
Hedge cutter battery
Back to
H 5648 Li
H 5648 Li (2015) [273560100/A15]
Hedge cutter battery
H 5648 Li
H 5648 Li (2015) [273560100/A15]

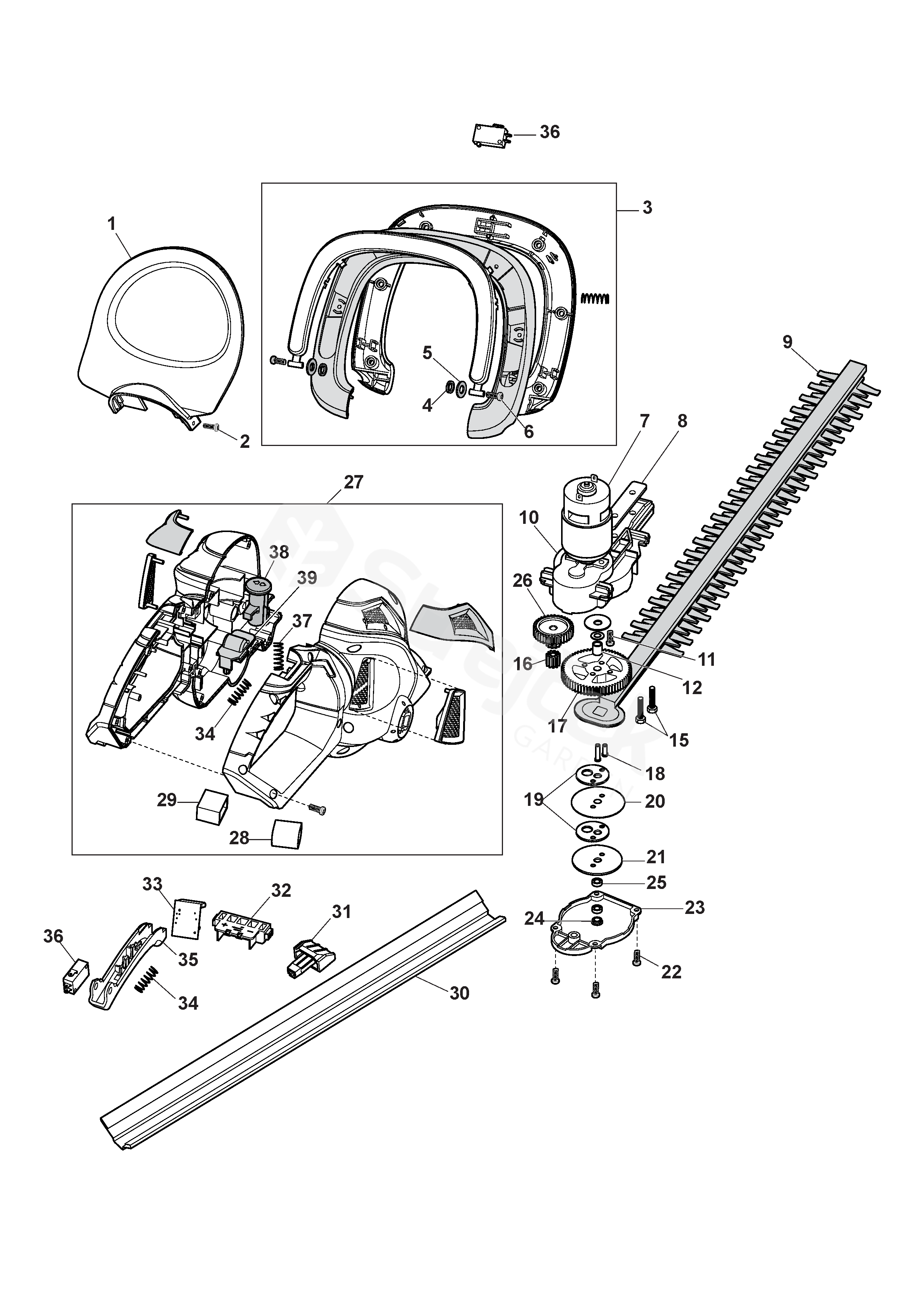

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
H 5648 Li (2015) [273560100/A15]
1
Protection
118803354/0
2
Screw
112727810/0
3
Front Handle
118810707/0
4
Washer
118803226/0
5
Washer
118803225/0
6
Screw
112728525/0
7
Engine
118803333/0
8
Clamp
118803281/0
9
Blade Assy
118803391/0
10
Gear Box
118803317/0
11
Screw
118803244/0
12
Bushing
118803257/0
15
Screw
112789100/0
16
Pinion
118803296/0
17
Gear
118803292/0
18
Pin
118803251/0
19
Link Block
118803358/0
20
Plate
118803278/0
21
Pad
118803280/0
22
Screw
6981433
23
Gear Cover
118803364/0
24
Shaft sleeve
118803295/0
25
Shaft sleeve
118803253/0
26
Gear
118803402/0
27
Housing
118803384/0
28
Magnet Ring
118803346/0
29
Magnet Ring
118803345/0
30
Blade Cover
118803440/0
31
Cap
118803414/0
32
Insert block
118803304/0
33
PCB components
118803469/0
34
Spring
118803228/0
35
Trigger
118803428/0
36
Microswitch
118803472/0
37
Spring
118803778/0
38
Rotating Button [Yellow]
118803797/0
39
Button
118810708/0
