Spare parts
Everything for your machines
Spare parts
>
Alpina
>
Blower
>
BLC 27 BLC 27 (2017)
>
Housing
Back to
BLC 27
BLC 27 (2017)
Housing
BLC 27
BLC 27 (2017)

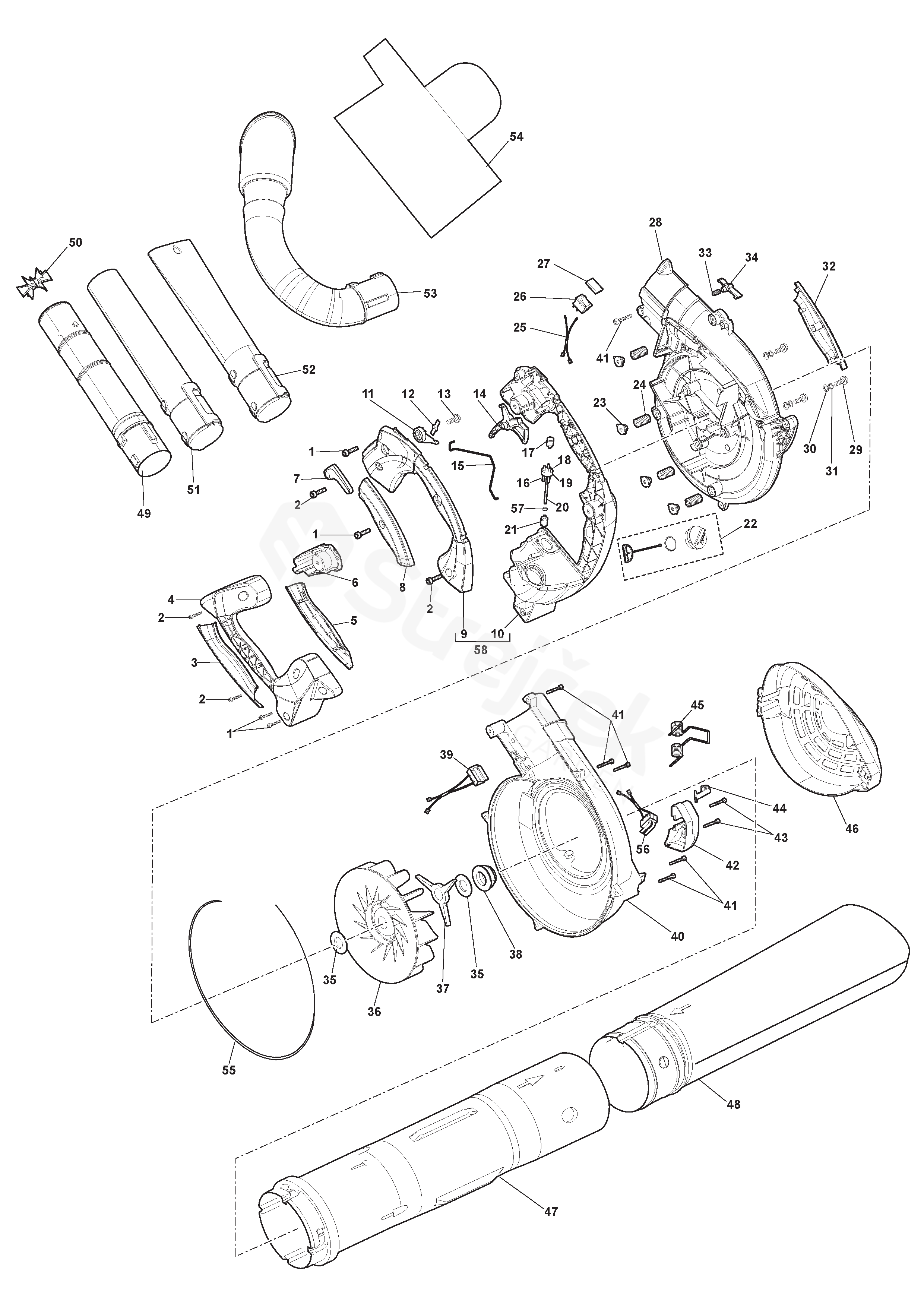

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
BLC 27 (2017)
1
Screw
112728099/1
2
Screw
112727795/0
3
Handle Cover
118805242/0
4
Handle
118803092/0
5
Handle Cover
118805243/0
6
Support
118803094/0
7
Knob
118803095/0
8
Handle Cover, Left Part
118805240/0
9
Left Handgrip
118803097/0
10
Right Handgrip
118803098/0
11
Lever
118803099/0
12
Reed
118803100/0
13
Screw
112735404/0
14
Trigger, Red
118803101/0
15
Push rod
118803102/0
16
Tube
118803103/0
17
Equalizer
118803104/0
18
Oil return pipe
118803105/0
19
Retainer
118803106/0
20
Fuel Tube
118803107/0
21
Fuel Filter
118800199/0
22
Fuel Cap Assy
118800241/0
23
Fixation Block
118803108/0
24
Spring
118803109/0
25
Cable
118803110/0
26
Switch
118803111/0
27
Cap
118803112/0
28
Air Conveyor
118803113/0
29
Screw
2132550
30
Washer
112521320/0
31
Grower
112581500/0
32
Handle Cover, Right Part
118805241/0
33
Spring
118803115/0
34
Fixed link
118803116/0
35
Washer
118803117/0
36
Fan
118803118/0
37
Blade
118803119/0
38
Nut
118803120/0
39
Reverse-switch
118803121/0
40
Air Conveyor
118803122/0
42
Protection Cover
118803123/0
43
Screw
112726389/0
44
Lever
118803124/0
45
Spring
118803125/0
46
Fan Cover, Red
118804608/0
47
Vacumm tube
118803126/0
48
Vacumm tube
118803127/0
49
First Blower Tube
118803128/0
50
Shredder
118803129/0
51
Third Blower Tube
118803130/0
52
Second Blower Tube
118803131/0
53
Tube Fittings Bag
118803132/0
54
Bag
118803133/0
55
Seal
118804610/0
56
Switch
118804609/0
57
Snap Ring
118804613/0
58
Handle Cover Kit
118803098/1
