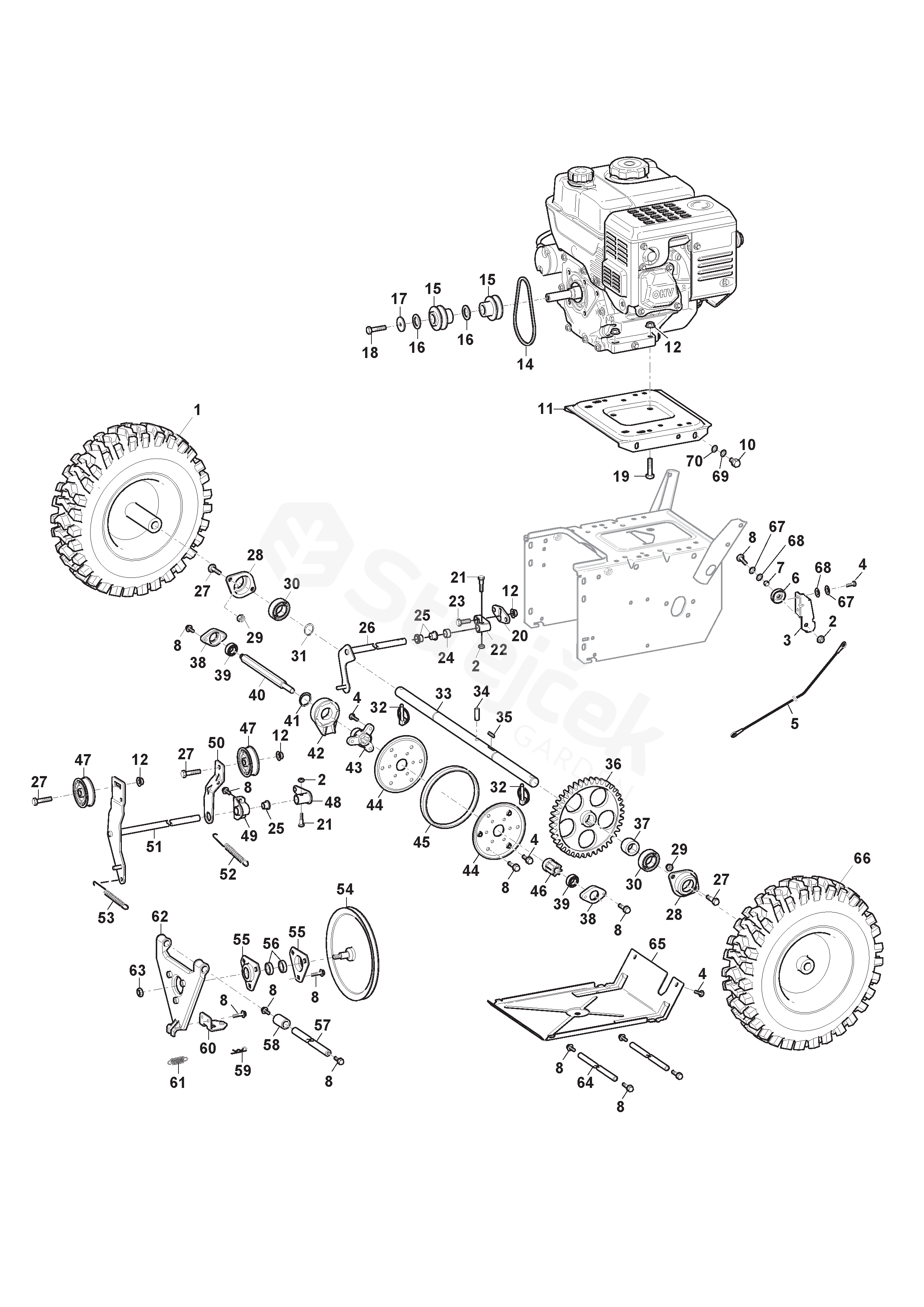

Spare parts - Partlist - SW 60 P SW 60 P (2020) - Transmission

Everything for your machines

SW 60 P SW 60 P (2020)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For SW 60 P (2020)

1	Right Wheel Assy Wheel Assy (Tyre & Rim)	118820580/0
2	Nut	112154510/0
3	Pulley Seat	118820094/0
4	Screw	112790781/0
5	Wire	118820299/0
6	Pulley	118820300/0
7	Sleeve	118820298/0
8	Screw	112791200/1
10	Screw	112792611/0
11	Engine Plate - Grey	118820149/0
12	Nut	112154210/0
14	Belt	118820303/0
15	Drive pulley	118820756/0
16	Washer	118820262/0
17	Washer	9699-0109-02
18	Screw	112691100/0
19	Screw	112691100/0
20	Gear Adjuster	118820263/0
21	Screw	112674550/0
22	Gears connector	118820264/0
23	Screw	9997-0820-16
24	Cushion	118820265/0
25	Plastic bushing	1811-3113-01
26	Shift fork	118820308/0
27	Screw	112793701/0
28	Shaft seat	118820266/0
29	Nut	112155000/0
30	Ball Bearing	118820157/0
31	Seeger	112609260/0
32	Push nut	1811-3133-01
33	Driving Shaft	118820124/0
34	Pin	118820126/0
35	Key	118820125/0
36	Gear	118820222/0
37	Sleeve	118820122/0
38	Inner Shaft Seat	118820223/0
39	Ball Bearing	118820152/0
40	Hexagon Shaft	118820224/0
41	Seeger	112609800/0
42	Shift bearing	118820312/0
43	Bracket	118820314/0
44	Inner Ring	118820110/0
45	Rubber	118820317/0
46	Gear	118820225/0
47	Tension pulley	1811-3064-01
48	Tensioner	118820334/0
49	Fixing Block	118820336/0
50	Tensioner	118820337/0
51	Tension Assy	118820226/0
52	Spring	1811-3118-01
53	Brake Spring	118820343/0
54	Pulley	118820339/0
55	Bearing housing	1811-3116-01
56	Ball Bearing	118820340/0
57	Strut	1811-3125-01
58	Spacer bush	1811-3061-01
59	Pin	118820348/0
60	Connector Assy	118820227/0
61	Spring	118820349/0
62	Plate	118820229/0
63	Nut	112156603/0
64	Strut	118820295/0
65	Bottom Plate	118820230/0
66	Left Wheel Assy Wheel Assy (Tyre & Rim)	118820211/0
67	Washer	112521330/0
68	Grower	112582100/0
69	Washer	112521350/0
70	Grower	112583500/0
