Spare parts > Alpina > Snowthrowers > AS 62 P AS 62 P (2019) > Engine - Piston, Crankshaft
Back to

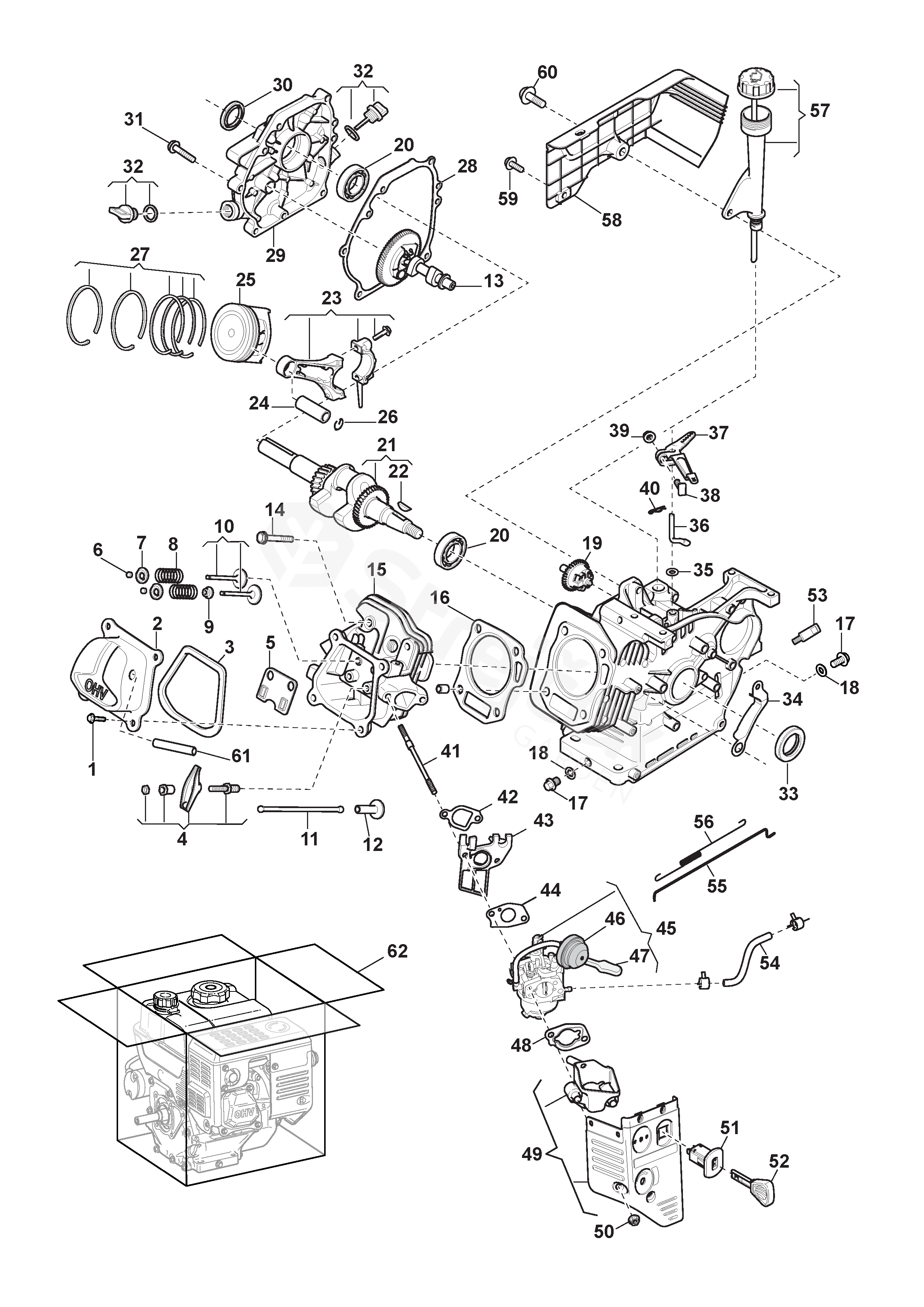

Engine - Piston, Crankshaft
AS 62 P AS 62 P (2019)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For AS 62 P (2019)
1 Screw 118551334/0
2 Cover 118550784/0
3 Gasket 118551163/0
4 Valve Arm Set 118550273/0
5 Valve Lifter 118550475/0
6 Valve keeper 118551166/0
7 Retainer 118551167/0
8 Spring 118550896/0
9 Gasket 118551168/0
10 Valve Assy, Intake + Exhaust 118551203/0
11 Push rod 118550474/0
12 Valve Lifter 118550623/0
13 Camshaft Assy 118550624/0
14 Screw 118551200/0
15 Cylinder Head 118551162/0
16 Gasket 118550783/0
17 Drain plug bolt 118550460/0
18 Washer , Drain Plug 118550793/0
19 Speed Governor Assy 118550787/0
20 Ball Bearing 118550280/0
21 Crankshaft 118550800/0
22 Woodruff Key 118550288/0
23 Connecting Rod 118550519/0
24 Piston Pin 118550786/0
25 Piston 118551164/0
26 Washer, Piston Pin 118551201/0
27 Piston, Ring Set 118551165/0
28 Crankcase Gasket 118550782/0
29 Crankcase Cover 118551292/0
30 Oil seal 118551338/0
31 Screw 118551199/0
32 Oil Tank Cap 118551160/0
33 Oil seal 118550792/0
34 Plate 118550795/0
35 Washer 118550858/0
36 Shaft, Governor Arm 118550459/0
37 Arm Governor 118551314/0
38 Screw 118550805/0
39 Nut 112292102/0
40 Cotter Pin 118550856/0
41 Stud Bolt 118551335/0
42 Carburetor Gasket 118551174/0
43 Carburettor insulator 118550484/0
44 Carburetor Gasket 118551173/0
45 Carburettor 118551309/0
46 Air Purge Pump 118551184/0
47 Choke Lever 118550886/0
48 Spacer 118550482/0
49 Air Cleaner Assy 118551320/0
50 Nut 118550806/0
51 Starting Switch 118550828/0
52 Switch Key 118550639/0
53 Valve Assy 118550794/0
54 Fuel Hose 118551342/0
55 Governor Rod 118550493/0
56 Spring 118550492/0
57 Oil Filler Assy 118551291/0
58 Cover 118551346/0
59 Screw 118550816/0
60 Screw 9942-0825-16
61 Breather Pipe 118551339/0
62 Engine Assembled 118551356/0
