Spare parts > Mountfield > Lawn Mower > EL 46 PD EL 46 PD (2008) > Chassis Handle
Back to

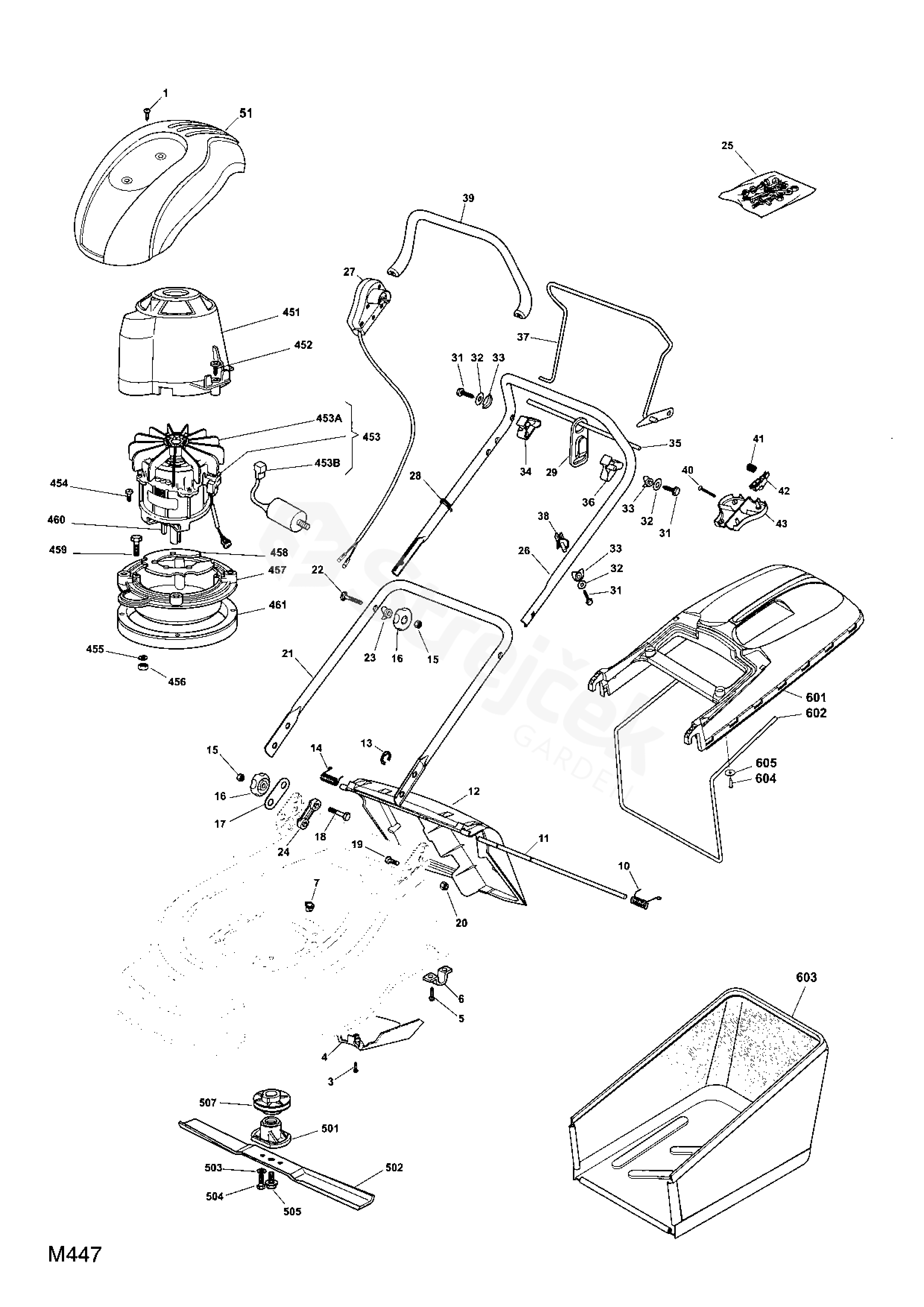

Chassis Handle
EL 46 PD EL 46 PD (2008)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For EL 46 PD (2008)
1 Screw
EL46PD 		112728680/0
3 Screw
EL46PD 		112727791/0
4 Belt Protection
EL46PD 		122060192/0
5 Screw
EL46PD 		112731350/0
6 Plate
EL46PD 		322545152/0
7 Rubber Insert
EL46PD 		322291150/0
10 Left Protection Spring
EL46PD 		122450420/1
11 Fulcrum Pin
EL46PD 		122517906/1
12 Stone Guard, Black
EL46PD 		322600063/1
13 Benzing Ring
EL46PD 		112000930/0
14 Right Spring
EL46PD 		122450410/1
15 Nut
EL46PD 		112293200/0
16 Yellow Knob
EL46PD 		322399804/1
17 External Plaque
EL46PD 		122551574/0
18 Screw
EL46PD 		112691115/0
19 Screw
EL46PD 		112793300/0
20 Nut
EL46PD 		112155000/0
21 Handle Lower Part
EL46PD 		381006512/0
22 Screw
EL46PD 		112819201/0
23 Washer
EL46PD 		122680006/1
25 Outfit, Screws
EL46PD 		381008666/0
26 Handle, Upper Part Black
EL46PD 		381006603/0
27 Dead Hand Switch UK
EL46PD 		381600505/2
28 Clamp
EL46PD 		122192000/1
29 Fairlead
EL46PD 		322195101/4
31 Screw
EL46PD 		112735103/0
32 Washer
EL46PD 		112523040/0
33 Washer
EL46PD 		122680006/1
34 Lever Support Right
EL46PD 		322806518/2
35 Fairlead Bearing
EL46PD 		122020320/0
36 Lever Support Left
EL46PD 		322806519/2
37 Driving Lever
EL46PD 		181001245/1
38 Support, Adjuster
EL46PD 		122806520/0
39 Lever, Engine Brake Black
EL46PD 		322322881/1
40 Screw
EL46PD 		112728685/0
41 Spring
EL46PD 		122450115/0
42 Left fulcrum
EL46PD 		322230350/0
43 Support
EL46PD 		322785144/0
51 Ciao Cover Black
EL46PD 		122055065/0
451 Cover Support
EL46PD 		322785210/0
452 Screw
EL46PD 		112728710/0
453 Electric Motor 1800W
230V-1800W _ EL46PD 		118563641/0
454 Screw
EL46PD 		12735410/0
455 Grower
EL46PD 		112583500/0
456 Nut
EL46PD 		112293200/0
457 Electrical Motor Flange
EL46PD 		322207211/4
458 Ventilation Screen
EL46PD 		322720360/2
459 Screw
EL46PD 		112691800/0
460 Key
EL46PD 		112139440/0
461 Spacer
EL46PD 		322170960/1
501 Blade Hub
EL46PD 		322463186/3
502 Left Mulching, Blade
EL46PD 		181004346/3
503 Grower
EL46PD 		112583500/0
504 Screw
EL46PD 		112793101/0
505 Screw
EL46PD 		381004352/0
507 Pulley
EL46PD 		322601911/1
601 Grass-Box, Upper Part
EL46PD 		322486101/0
602 Lower Stiffening
EL46PD 		122608525/0
603 Box, Fabric
EL46PD 		181002211/0
604 Screw
EL46PD 		112728680/0
605 Washer
EL46PD 		112523050/0
453A Fan Motor Atb 118740054/0
453B Condenser 118222039/0
