Spare parts > Mountfield > Lawn Mower > PERFORMANCE POWER 390 PERFORMANCE POWER 390 (2002) > Walkbehind
Back to
Walkbehind
PERFORMANCE POWER 390 PERFORMANCE POWER 390 (2002)

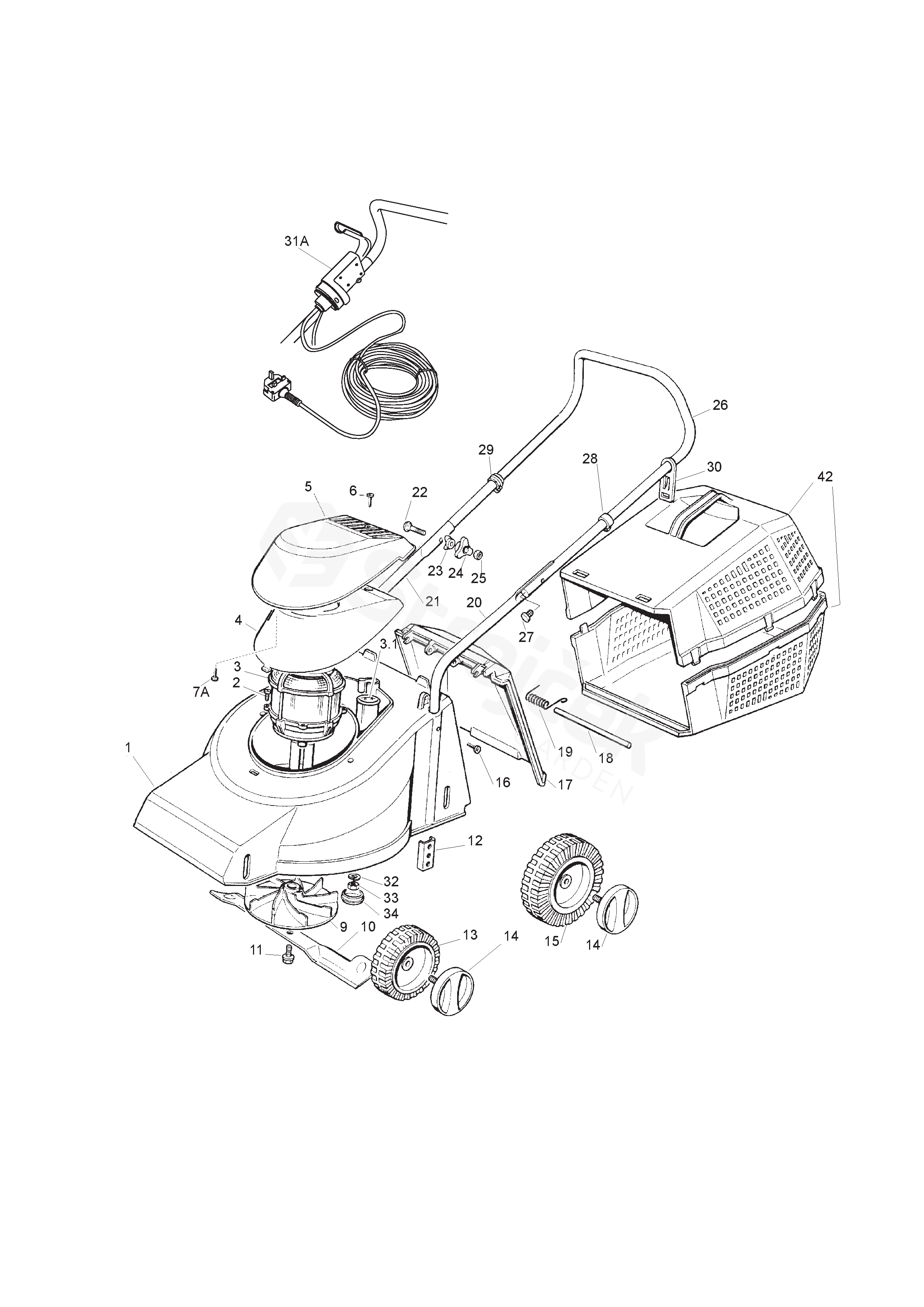

Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PERFORMANCE POWER 390 (2002)
1 Green Deck 1136-0737-01
2 Screw 9836-9635-12
3 Electric Motor 1136-0628-01
4 Cover Support 1136-0641-01
5 Cover 1136-0642-01
6 Screw 9836-9525-12
9 Blade Holder/Fan 1136-0673-01
10 Blade 1136-0748-01
11 Blade Bolt 1136-0752-01
12 Wheel Support 1136-0701-01
13 Wheel 1136-0694-01
14 Hub Cap-White 1136-0751-01
15 Wheel 1136-0695-01
16 Screw 9847-8019-16
17 Stone Guard 1136-0687-01
18 Pivot Pin 1136-0678-01
19 Spring 1136-0669-01
20 Handle-Lower, Lh 1136-0761-01
21 Handle-Lower, Rh 1136-0760-01
22 Screw 1136-0619-01
23 Washer 1136-0693-01
24 Knob 1136-0666-01
25 Nut 9799-0831-02
26 Handle-Upper 1136-0762-01
27 Cap 1136-0630-01
28 Fair Led 1136-0661-01
29 Anchor Clamp 1136-0660-01
30 Fair Led 1136-0662-01
32 Washer 9677-0009-02
33 Nut 9799-0831-02
34 Tank Cap 1136-0082-01
42 Grass Box Assy 1136-0675-01
99 Outfit, Screws
Not ill. 		1136-0774-01
31A Dead Hand Switch 1136-0631-01
3A Condensor 1136-0626-01
7A Screw 9847-8019-16
