Spare parts > Mountfield > Lawn Mower > PRINCESS 14 PRINCESS 14 (2006) > Chassis Handle
Back to

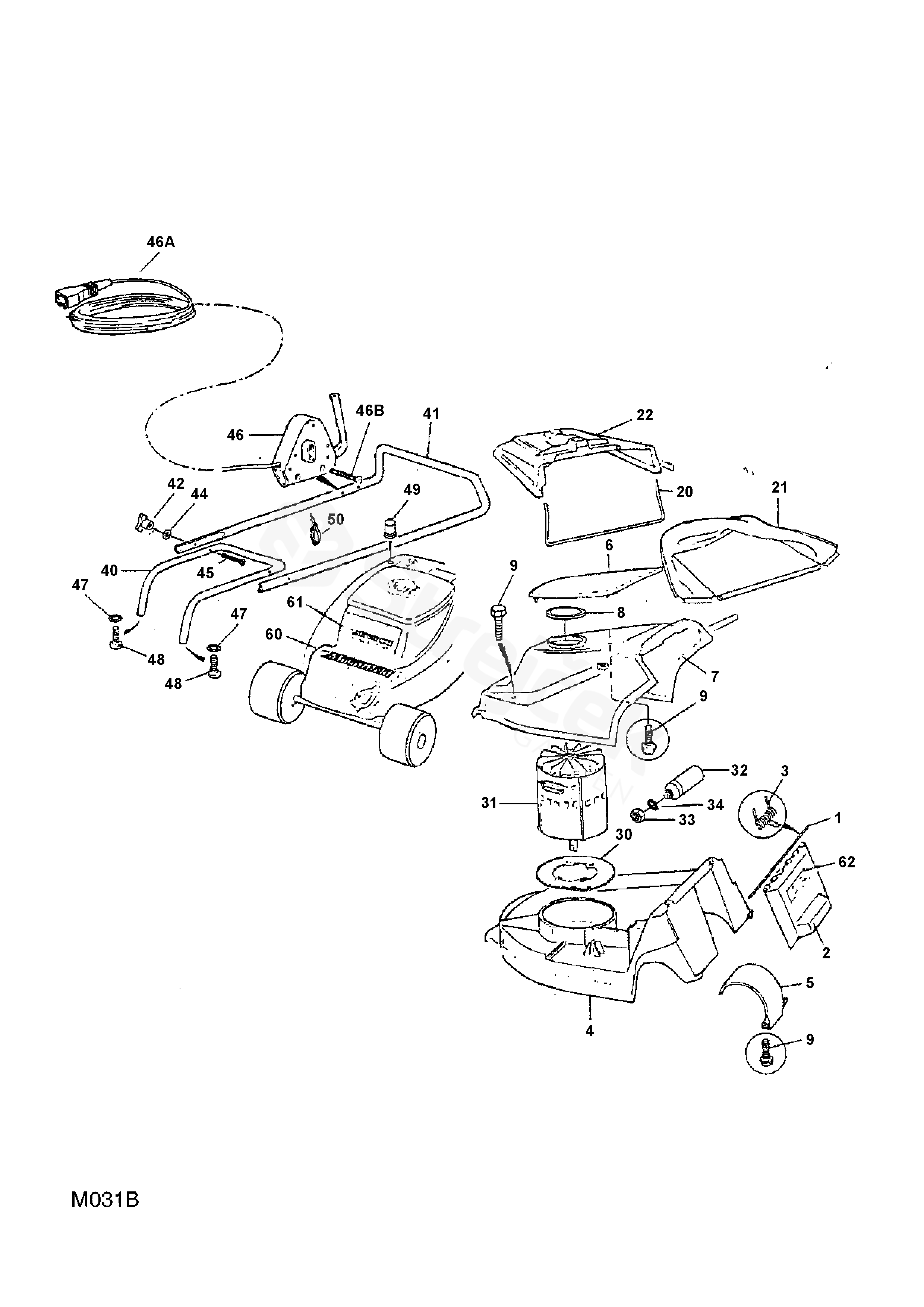

Chassis Handle
PRINCESS 14 PRINCESS 14 (2006)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PRINCESS 14 (2006)
1 Deflector rod M4398
2 Deflector M4374
3 Spring M4399
4 Chassis M4372
5 Throw plate M4381
6 Top cover M4376
7 Cover M4375
8 Air Filter 1114-0048-01
9 Screw RCL136-0516
20 Grassbag frame M4397
21 Grassbag M4400
22 Grasscatcher top M4373
30 Splash Guard 1114-0046-01
31 Electric Motor 1150W 9500-4600-10
32 Capacitor 9400-0242-00
33 Nut RCL066-0805
34 Washer M013-08
40 Lower handle RCL564131-00
41 Upper Handle RCL584363-00
42 Handwheel MF3498
44 Washer M011-0601
45 Carriage Bolt M074-0645
46 Switch MX967/2
47 Washer M013-1001
48 Screw M088-1025
49 Sleeved grommet MX951
50 Cable Tie MX1286
60 Label RCL766304-00
61 Label M7255
62 Label M7324
46A Shuttle cable MX705
46B Screw M046-0425
