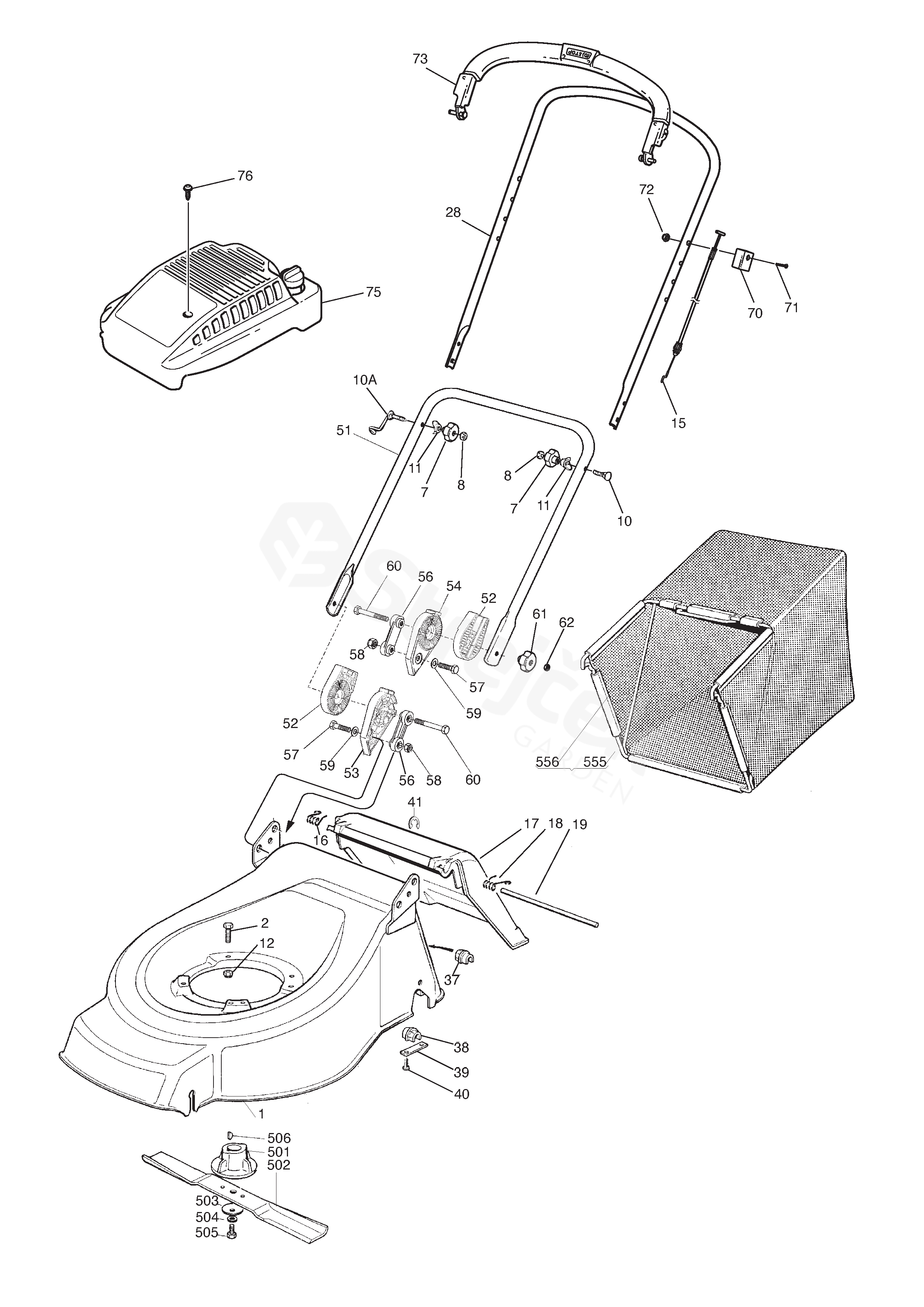

MOUNTFIELD 42 HP MOUNTFIELD 42 HP (2002)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For MOUNTFIELD 42 HP (2002)

1	Red Deck	1136-0734-01
2	Screw L = 60 mm	1136-0617-01
7	Knob	1117-3194-01
8	Nut	9799-0831-02
10	Screw	1136-0620-01
11	Washer	1136-0693-01
12	Nut	9747-0831-02
15	Cable, Thread Engine Brake	1136-0721-01
16	Spring-Rh	1136-0670-01
17	Stone Guard	1136-0688-01
18	Spring-Lh	1136-0671-01
19	Pivot Pin	1136-0680-01
28	Handlebar-Upper Part	1111-3243-01
37	Bushing	1136-0635-01
38	Bushing	1136-0636-01
39	Plate	1136-0681-01
40	Screw	9847-8119-16
41	Snap Ring	1136-0603-01
51	Handle-Lower	1136-0757-01
52	Support, External	1136-0698-01
53	Right Internal Support	1136-0699-01
54	Left Internal Support	1136-0700-01
56	Plate-Inside	1136-0683-01
57	Screw	9997-0830-16
58	Nut	9747-0831-02
59	Washer	9699-0090-02
60	Screw	1136-0613-01
61	Knob	1117-3194-01
62	Nut	1136-0605-01
70	Cable Holder	1111-2969-01
71	Screw	1136-0613-01
72	Lock Nut	9747-0631-02
73	Control Handle (Eng.Brake	1111-2953-01
75	Engine Cover Black	1111-3287-01
76	Screw	9828-7942-12
501	Blade Holder	1136-0672-01
502	Blade	1136-0749-01
503	Elastic Washer	1136-0083-01
504	Washer	1136-0015-01
505	Screw	1136-0616-01
506	Key	9600-0014-00
555	Box Chassis	1136-0755-01
556	Grass Box	1136-0731-01
10A	Screw	1136-0747-01
