Husqvarna
>
CHAIN SAWS
>
570 570, 570 EPA, 2008-08
>

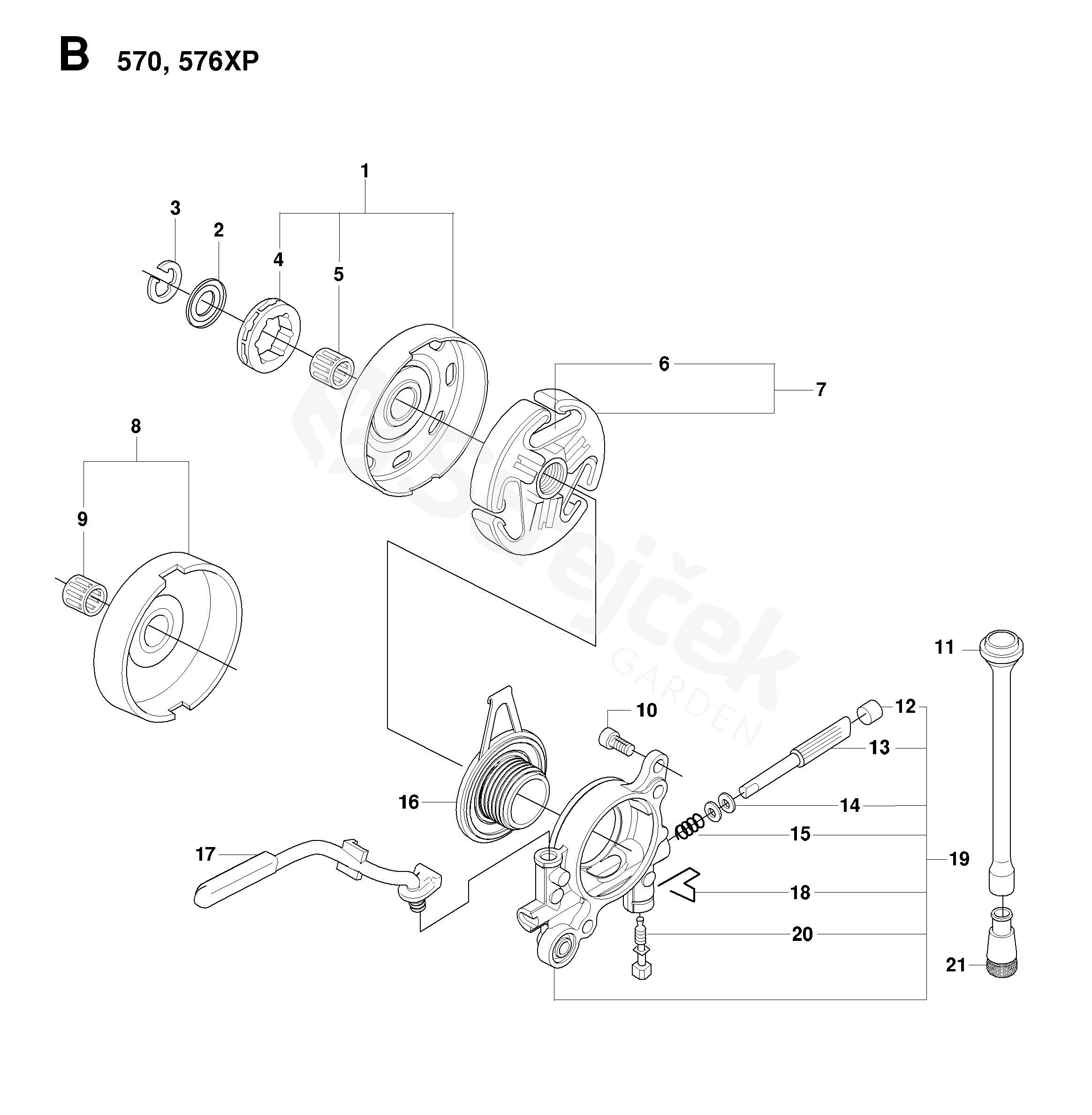

CLUTCH & OIL PUMP
Back to
570
570, 570 EPA, 2008-08
CLUTCH & OIL PUMP
570
570, 570 EPA, 2008-08
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
570, 570 EPA, 2008-08
1
CLUTCH DRUM
502440403
2
PODLOŽKA
503752401
3
E-CLIP
503272101
4
RÁFEK 3/8 x 8T
505303661
5
DRŽÁK JEHLY
503432001
6
CLUTCH SPRING
537360601
7
CLUTCH ASSY
503744405
8
BUBEN SPOJKY KOMPL.
503861703
9
DRŽÁK JEHLY
503432001
10
SCREW IHSCM
503205301
11
OIL HOSE
501895301
12
SEALING PLUG
503624901
13
PÍST ČERPADLO
503521501
14
PODLOŽKA
503230004
15
PRUŽINA
501615801
16
PASTOREK ČERPADLA
537207804
17
OIL PRESSURE HOSE
537209101
18
PRUŽINA
503813001
19
OIL PUMP ASSY
503521303
20
PIN SCREW
503811301
21
OIL SCREEN
501544102
