Spare parts - Partlist - 46 M 46 M (2005) [11-3234-80] - ST. Sv 150

Everything for your machines

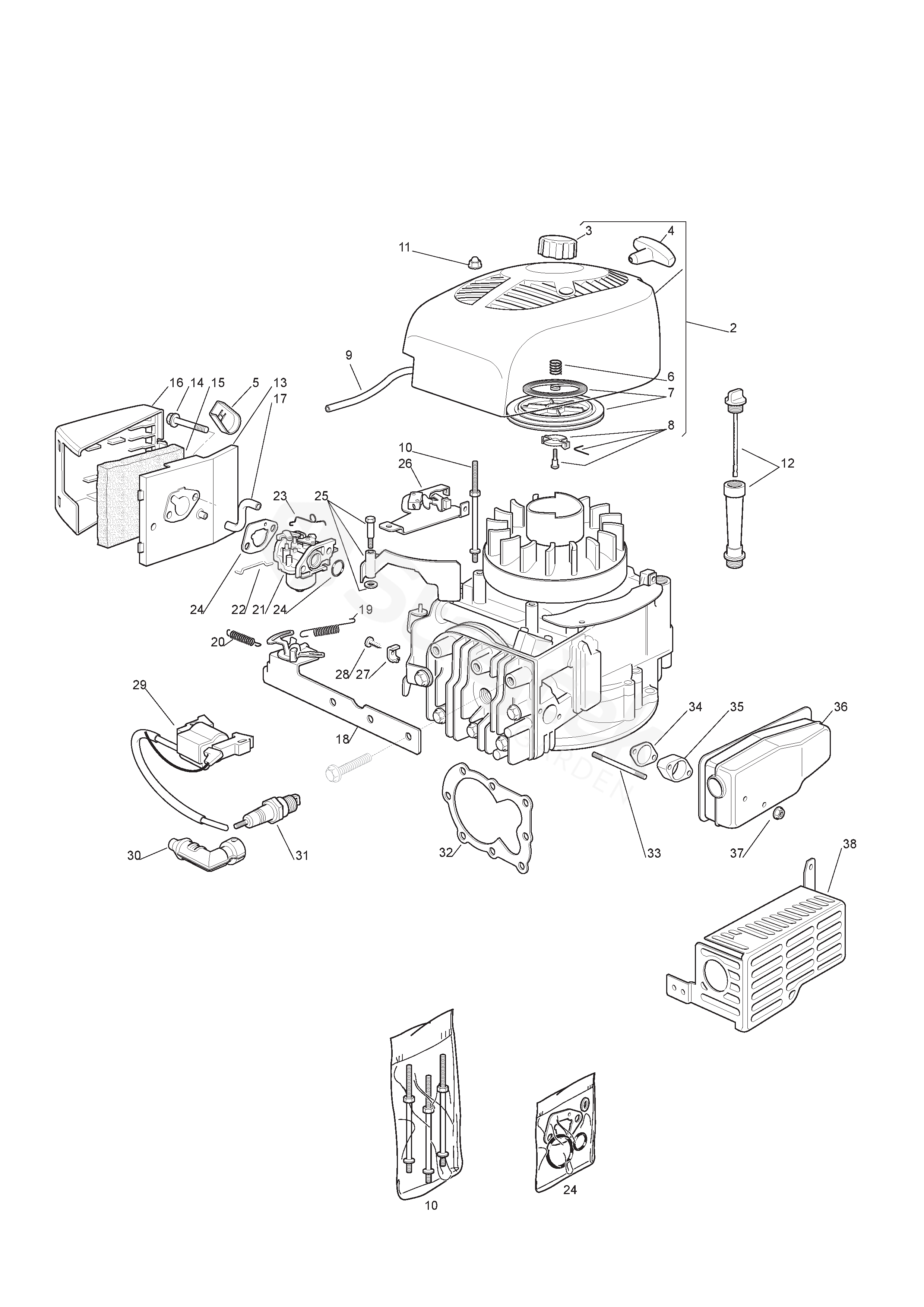

46 M 46 M (2005) [11-3234-80]

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For 46 M (2005) [11-3234-80]

2	Blower Housing & Start Assy SV150	1136-1641-01
3	Fuel Tank Cap SV150	1136-1642-01
4	Starter Handle SV150	1911-3472-01
5	Deflector SV150	1136-1676-01
6	Spring SV150	1136-1643-01
7	Starter Pulley & Rewind Spring SV150	1136-1644-01
8	Starter Pawl Kit SV150	1136-1645-01
9	Fuel Hose SV150	1136-1646-01
10	Pin Bolt Set SV150	1136-1647-01
11	Nut SV150	1136-1648-01
12	Oil Dipstick Assy SV150	1136-1649-01
13	Air Cleaner Base SV150	1136-1650-01
14	Screw SV150	1136-1651-01
15	Air Filter SV150	1136-1652-01
16	Air Cleaner Cover SV150	1136-1653-01
17	Breather Tube SV150	1136-1654-01
18	Control Bracket SV150	1136-1655-01
19	Governor Spring SV150	1136-1656-01
20	Linking Spring SV150	1136-1670-01
21	Carburettor Assy SV150	1136-1657-01
22	Choke Link SV150	1136-1658-01
23	Governor Link SV150	1136-1659-01
24	Carburettor Gasket Kit SV150	1136-1660-01
25	Air Vane Kit SV150	1136-1661-01
26	Engine Brake SV150	1136-1662-01
27	Casing Clamp SV150	1136-1663-01
28	Screw SV150	1136-1664-01
29	Armature Magneto SV150	1136-1665-01
30	Spark Plug Elbow Cover SV150	1136-1666-01
31	Spark Plug SV150	1136-1675-01
32	Cylinder head gasket SV150	1136-1667-01
33	Pin SV150	1136-1668-01
34	Muffler Gasket SV150	1136-1669-01
35	Spacer SV150	1136-1671-01
36	Muffler SV150	1136-1672-01
37	Nut SV150	1136-1673-01
38	Muffler Guard SV150	1136-1674-01
