Spare parts > Mountfield > Lawn Mower > 480R ES 480R ES (2004) > Chassis Grass Collector
Back to

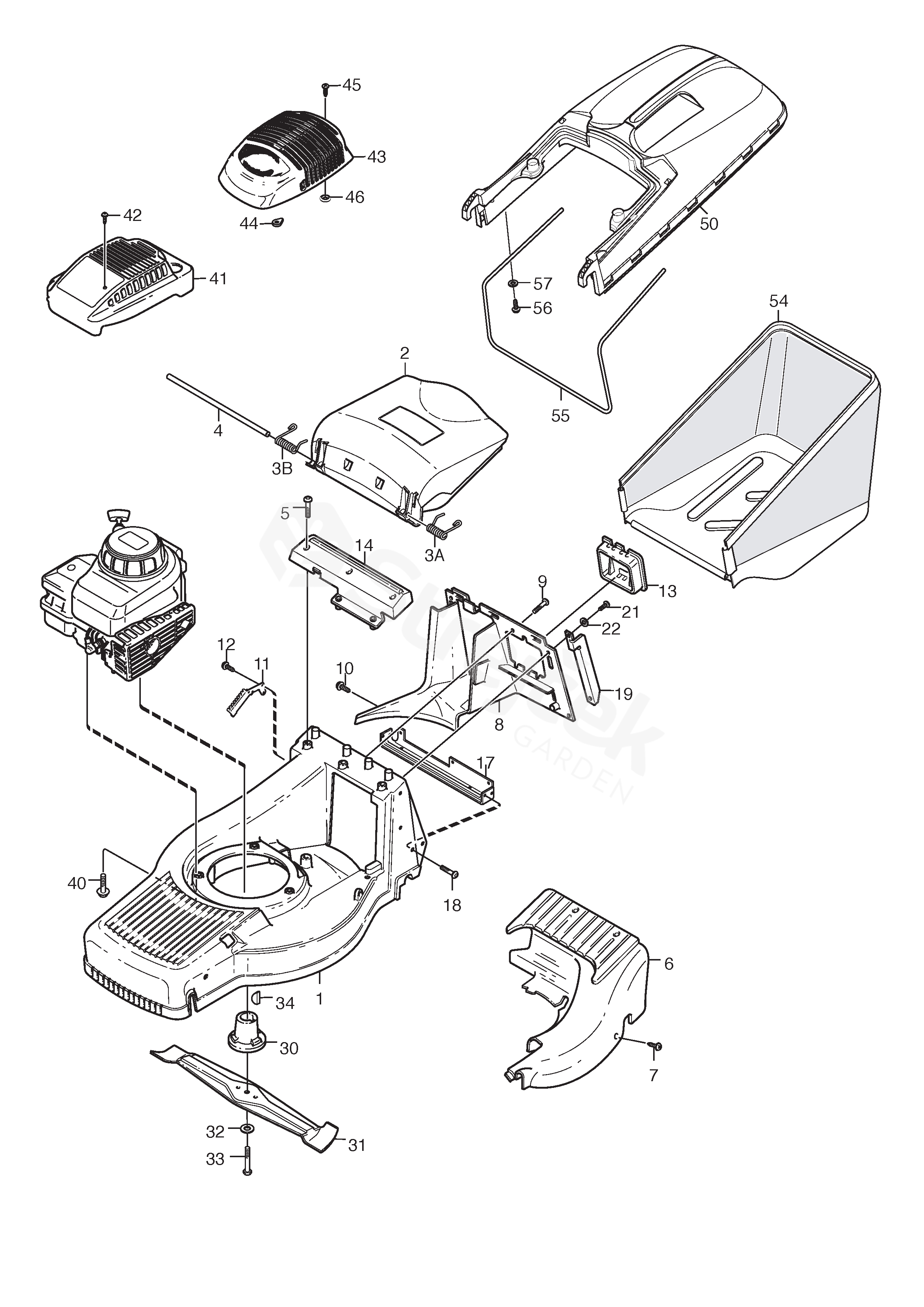

Chassis Grass Collector
480R ES 480R ES (2004)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 480R ES (2004)
1 Chassis-Red 1111-3410-02
2 Flap Assy-Black
Pos. 3 - 4 incl. 		1111-3529-02
4 Pivot rod 1111-3532-01
5 Screw 9947-0616-16
6 Cover (Red 3003) 1111-2794-03
8 Rear Attachment 1111-3412-01
10 Screw 9838-9522-12
11 Height Sector 1111-3548-02
13 Battery Holder
Not on 5798 		1111-2927-01
14 Attachment-Cover 1111-3533-02
17 Strut 1111-3524-01
18 Screw 9943-0620-16
19 Plate-Lh 1111-3568-01
21 Screw 9840-7916-16
22 Washer 9699-0087-02
30 Blade Holder 1111-1408-02
31 Blade 1111-2800-01
32 Washer 9696-0011-01
33 Screw 9987-5251-12
34 Key 9600-0014-00
40 Screw 9955-3732-12
41 Engine Cover (Black) 1111-3352-01
42 Screw 9500-9907-01
50 Top Collector-Black 1111-3525-02
54 Collecting Bag (Mountfield) 1111-3528-02
55 Wire Clamp 1111-3526-01
57 Flat washer 9699-0100-02
3A Spring-Lh 1111-3531-01
3B Spring-Rh 1111-3530-01
