Mountfield
>
Lawn Mower
>
HP 470 HP 470 (2006)
>
Walkbehind
Back to
HP 470
HP 470 (2006)
Walkbehind
HP 470
HP 470 (2006)

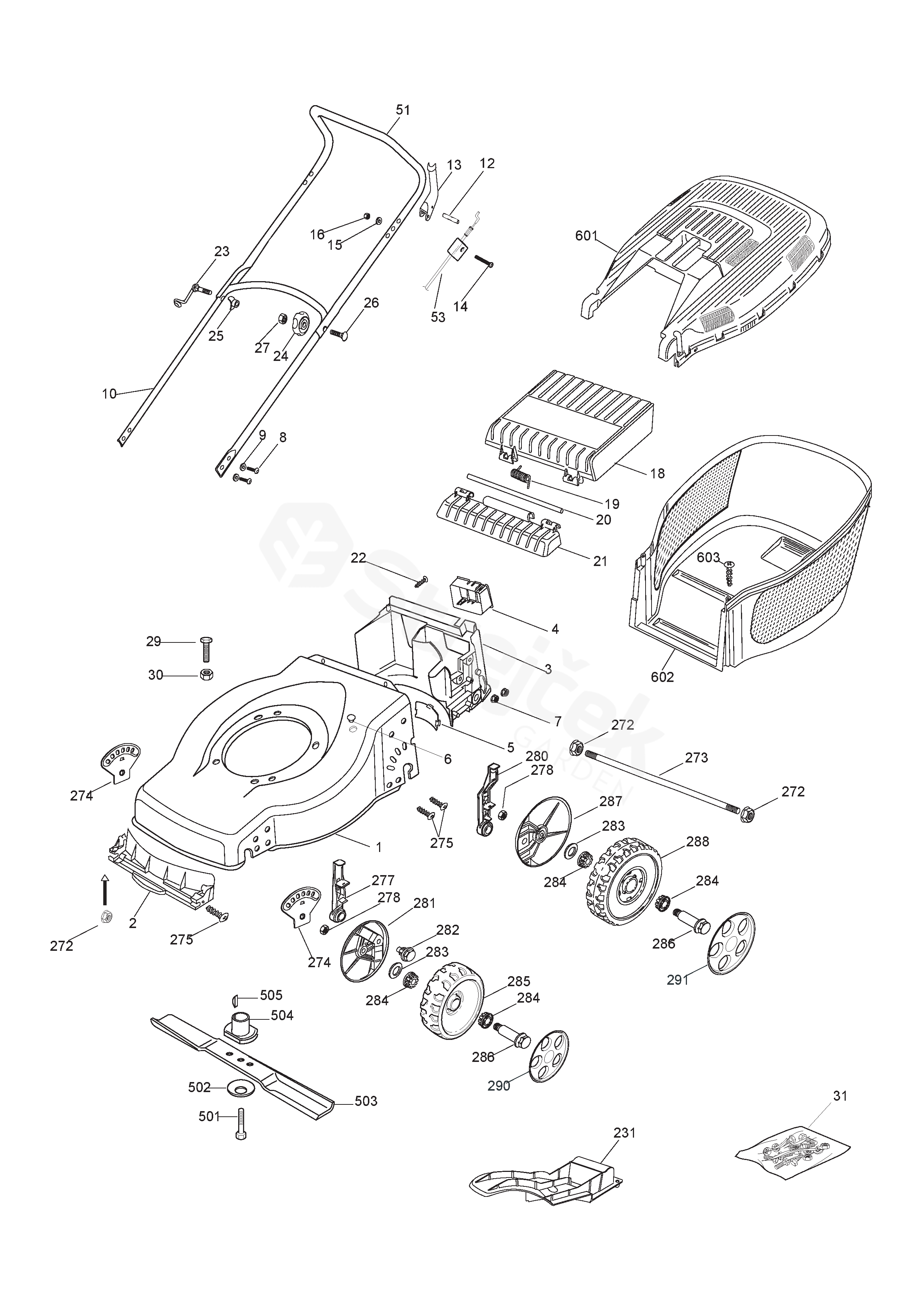

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
HP 470 (2006)
1
Grey Deck
HP470
1136-1515-01
2
Front Baffle
HP470
1117-3007-01
3
Rear Baffle
HP470
1117-3008-01
4
Battery Holder
HP470
1111-2927-01
5
Cap
HP470
1117-1148-01
6
Plug
HP470
1136-1400-01
7
Nut
HP470
1117-1131-01
8
Bolt
HP470
1117-1364-01
9
Washer
HP470
9699-0028-02
10
Handle-Lower
HP470
1136-1411-01
12
Locating Pin
HP470
9595-0258-00
13
Opc Lever (Red)
HP470
1117-3221-01
14
Screw
HP470
9997-0635-12
15
Washer
HP470
9699-0025-02
16
Nut
HP470
9799-0631-02
18
Rear Flap (Black)
HP470
1117-1156-02
19
Spring-Rear Flap
HP470
1117-1126-01
20
Shaft For Rear Flap
HP470
1117-1143-01
21
Rear Flap Holder (Black)
HP470
1117-1155-02
22
Screw
HP470
9836-9516-12
23
Screw
HP470
1136-0747-01
24
Knob
HP470
1117-3194-01
25
Washer
HP470
1136-0693-01
26
Screw
HP470
1136-0620-01
27
Nut
HP470
9799-0831-02
29
Screw
HP470
9997-0830-16
30
Nut
HP470
9739-0831-22
31
Assy Kit
HP470
1136-1415-01
51
Handle-Upper
HP470
1136-1414-01
53
Cable, Thread Engine Brake
HP470
1136-1512-01
231
Mulch Plug (Yellow)
HP470
1117-3001-01
272
Nut
HP470
1117-1131-01
273
Reinforcement
HP470
1117-1219-01
274
Sector
HP470
1117-1213-01
275
Screw
HP470
9836-9516-12
277
Lever, Height Adjustment
HP470
1117-1228-01
278
Nut
HP470
9747-0831-02
280
Lever, Height Adjustment
HP470
1117-3261-01
281
Wheel Plate
HP470
1117-1376-01
282
Shoulder Bolt
HP470
1117-1182-01
283
Washer
HP470
1136-0309-01
284
Bushing
HP470
1136-0634-01
285
Wheel
HP470
1136-2014-01
286
Wheel Bolt
HP470
1136-2041-01
287
Wheel Plate
HP470
1117-3259-01
288
Wheel
HP470
1136-2015-01
290
Hub Cap-Grey
HP470
1136-2423-01
291
Hub Cap-Grey
HP470
1136-2333-01
501
Screw
HP470
9987-5251-12
502
Spring washer
HP470
1117-1065-01
503
Blade
HP470
1117-3354-01
504
Blade Holder
HP470
1117-1362-01
505
Key
HP470
9600-0014-00
601
Grassbag-Upper (Black)
HP470
1117-1157-02
602
Lower Grass Bag (Black)
HP470
1117-1218-01
603
Screw
HP470
9836-9516-12
