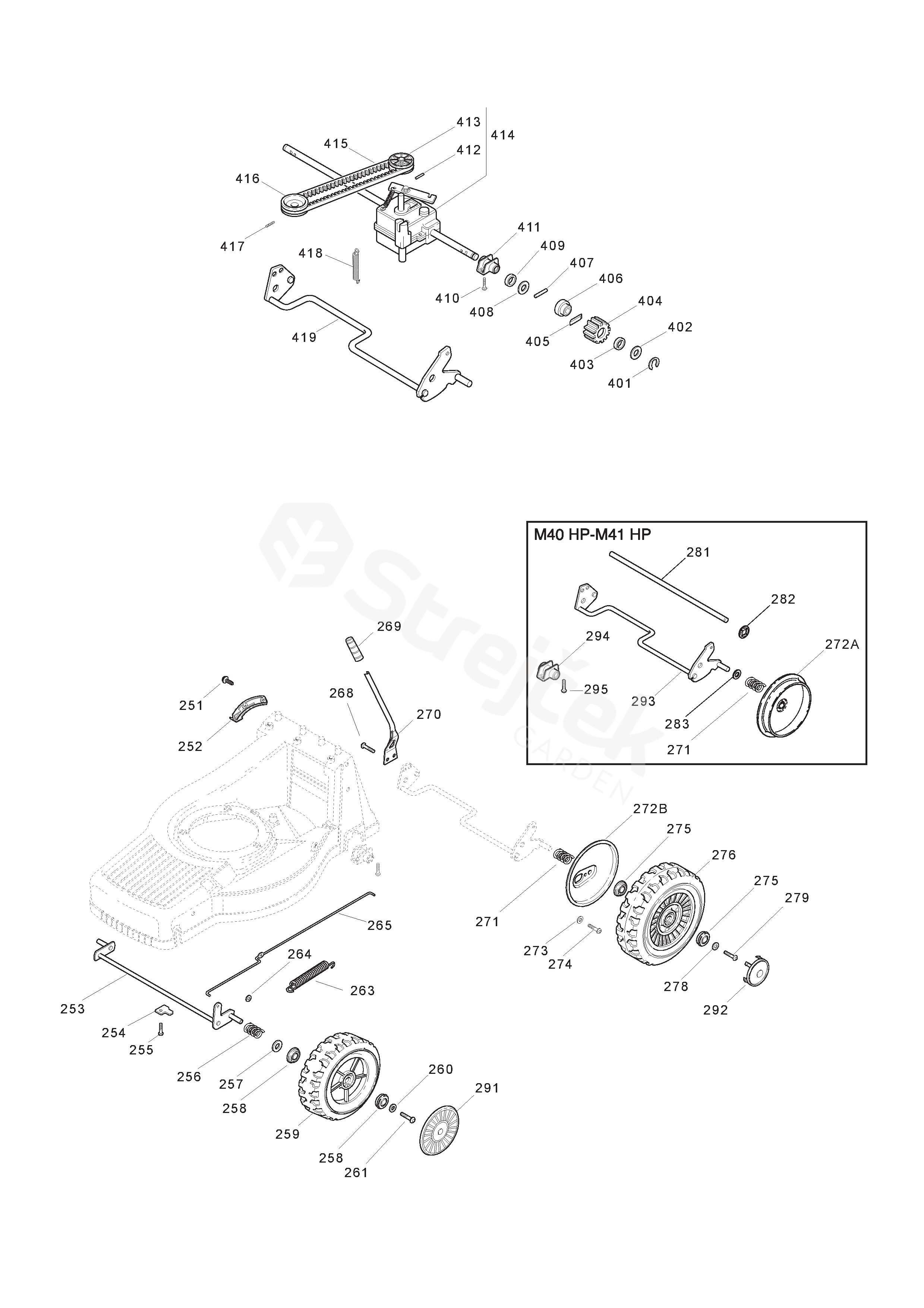

Spare parts - Partlist - M40 PD M40 PD (2006) [292502023/MOU] - Transmission Wheel Suspension

Everything for your machines

M40 PD M40 PD (2006) [292502023/MOU]

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For M40 PD (2006) [292502023/MOU]

251	Screw M40 , M41HP	9838-9522-12
252	Height Adjusting Plate M40 , M41HP	1111-2798-01
253	Front Axle M40 , M41HP	1136-2440-01
254	Clamp M40 , M41HP	1111-1504-01
256	Spring-Wheel Axle M40 , M41HP	1111-1138-01
258	Ball Bearing M40 , M41HP	1136-0655-01
259	Wheel M40 , M41HP	1136-1520-01
263	Spring M40 , M41HP	1111-2819-01
264	Starlock M40 , M41HP	9675-0011-00
265	Rod, Height Adjustment M40 , M41HP	1111-2818-01
269	Lever Knob M40 , M41HP	1111-2817-01
270	Lever, Height Adjustment M40 , M41HP	1111-2816-01
271	Spring M40 , M41HP	1111-3060-01
273	Washer M40PD	9699-0060-02
274	Screw M40PD	9943-0610-16
275	Ball Bearing M40 , M41HP	1111-3296-01
276	Wheel Pos 275 incl. _ M40 , M41HP	1111-2665-01
278	Flat washer M40 , M41HP	9699-0100-02
279	Screw M40 , M41HP	9943-0612-16
281	Shaft M40 , M41HP	1111-2924-01
282	Starlock M40 , M41HP	9675-0017-02
283	Washer M40 , M41HP	9699-0037-02
291	Hub Cap (Silver) M40 , M41HP	1111-3443-01
292	Hub Cap (Silver) M40 , M41HP	1111-3444-01
293	Rear axle M40 , M41HP	1111-2808-01
294	Bushing M40 , M41HP	1111-2814-01
295	Screw M40 , M41HP	9947-0616-16
401	Circlip M40PD	9652-0010-04
402	Washer M40PD	9695-0013-00
403	Washer M40PD	1111-2830-01
404	Gear Wheel M40PD	1111-3075-01
405	Key M40PD	1111-3256-01
406	Washer M40PD	1111-2829-01
407	Pin M40PD	1111-2382-01
409	Seal Ring M40PD	9404-0083-00
412	Pin M40PD	9595-0235-00
413	Belt Pulley M40PD	1111-3440-01
414	Transmission Assy (Turbo 48/55) Pos 412 - 413 incl. _ M40PD	1111-3401-02
415	Drive Belt M40PD	1151-0128-11
416	Engine Belt Pulley M40PD	1111-2915-01
417	Screw M40PD	9910-0612-16
418	Tension Spring M40PD	1111-2822-01
272A	Wheel Cover M40 , M41HP	1111-2782-01
272B	Cover Plate M40PD	1111-3395-01
