Mountfield
>
Lawn Mower
>
M41 HP M41 HP (2006)
>
Chassis Handle
Back to
M41 HP
M41 HP (2006)
Chassis Handle
M41 HP
M41 HP (2006)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement

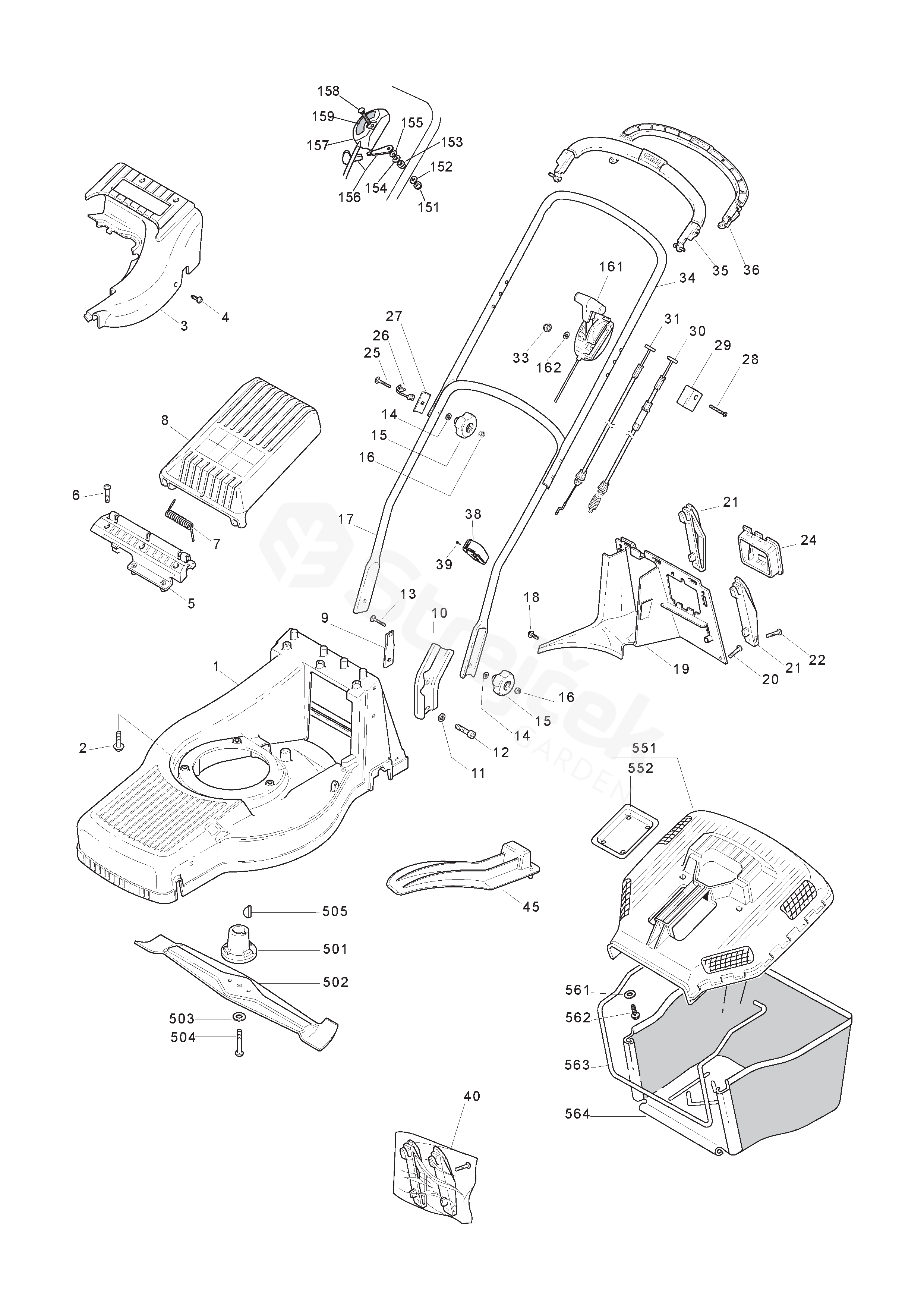

Other parts
For
M41 HP (2006)
1
Chassis (Red)
M40HP
1111-3090-14
2
Screw
M40HP
9955-3732-12
3
Cover (Red 3003)
M40HP
1111-2794-03
5
Flap Attachment-Black
M40HP
1111-2793-02
7
Spring
M40HP
1111-2792-01
8
Stone Guard, Black
M40HP
1111-3283-02
9
Attachment plate
M40HP
1111-3024-01
10
Handlebar Attachment
M40HP
1111-3021-01
11
Washer
M40HP
9699-0028-02
12
Screw
M40HP
9939-0820-16
13
Screw
M40HP
9899-3557-12
15
Locking Knob
M40HP
1111-3023-01
16
Nut
M40HP
9795-3531-02
17
Handle-Lower (Black)
M40HP
1111-3428-01
18
Screw
M40HP
9838-9522-12
19
Rear Attachment (Combi 48-55)
M40HP
1111-3335-01
20
Screw
M40HP
9947-0616-16
21
Attachment Lh+Rh
M40HP
1136-2044-01
22
Screw
M40HP
9836-9520-12
24
Battery Holder
M40HP
1111-2927-01
26
Eyelink
M40HP
1111-3062-01
27
Reinforcement
M40HP
1111-0178-00
28
Screw
L = 40 mm _ M41HP
9948-0640-16
29
Cable Holder
M40HP
1111-2969-01
30
Clutch Cable
M40PD
1111-3388-01
31
Cable, Thread Engine Brake
M41HP
1111-3556-01
33
Lock Nut
M40HP
9747-0631-02
34
Handle-Upper (Black)
M40HP
1111-3461-01
35
Control Handle (Eng.Brake
M40HP
1111-2953-01
36
Clutch Lever
M40PD
1111-2954-01
38
Cable Holder
M40HP
1111-2018-01
39
Screw
M40HP
9836-9216-12
40
Accessory Bag
M40HP
1111-3569-01
45
Mulch Plug (Combi 48)
M40HP
1111-3333-01
151
Nut
M41HP
1136-0604-01
152
Grower
M41HP
1136-0611-01
153
Spacer
M41HP
1136-0659-01
154
Washer
M41HP
9699-0035-02
155
Spring washer
M41HP
1136-0606-01
156
Throttle Lever
M41HP
1136-0766-01
157
Throttle Cable
M41HP
1136-0764-01
158
Screw
M41HP
1136-0618-01
159
Label
M41HP
1136-1857-01
161
Throttle Cable
M40HP
1111-3351-01
162
Washer
M40HP
9699-0060-02
501
Blade Holder
M40HP
1111-1408-02
502
Blade
M40HP
1111-2800-01
503
Washer
M40HP
9696-0011-01
504
Screw
M40HP
9987-5251-12
505
Key
M40HP
9600-0014-00
551
Collector-Upper Part Black
M40HP
1111-2840-02
552
Cover
M40HP
1111-2764-01
561
Flat washer
M40HP
9699-0100-02
563
Wire Clamp
M40HP
1111-2843-01
564
Collecting Bag
M40HP
1111-2844-01
