Spare parts
Everything for your machines
Spare parts
>
Mountfield
>
Lawn Mower
>
MOUNTFIELD 480 R PD/ES MOUNTFIELD 480 R PD/ES (2006)
>
Blade Grass Collector
Back to
MOUNTFIELD 480 R PD/ES
MOUNTFIELD 480 R PD/ES (2006)
Blade Grass Collector
MOUNTFIELD 480 R PD/ES
MOUNTFIELD 480 R PD/ES (2006)

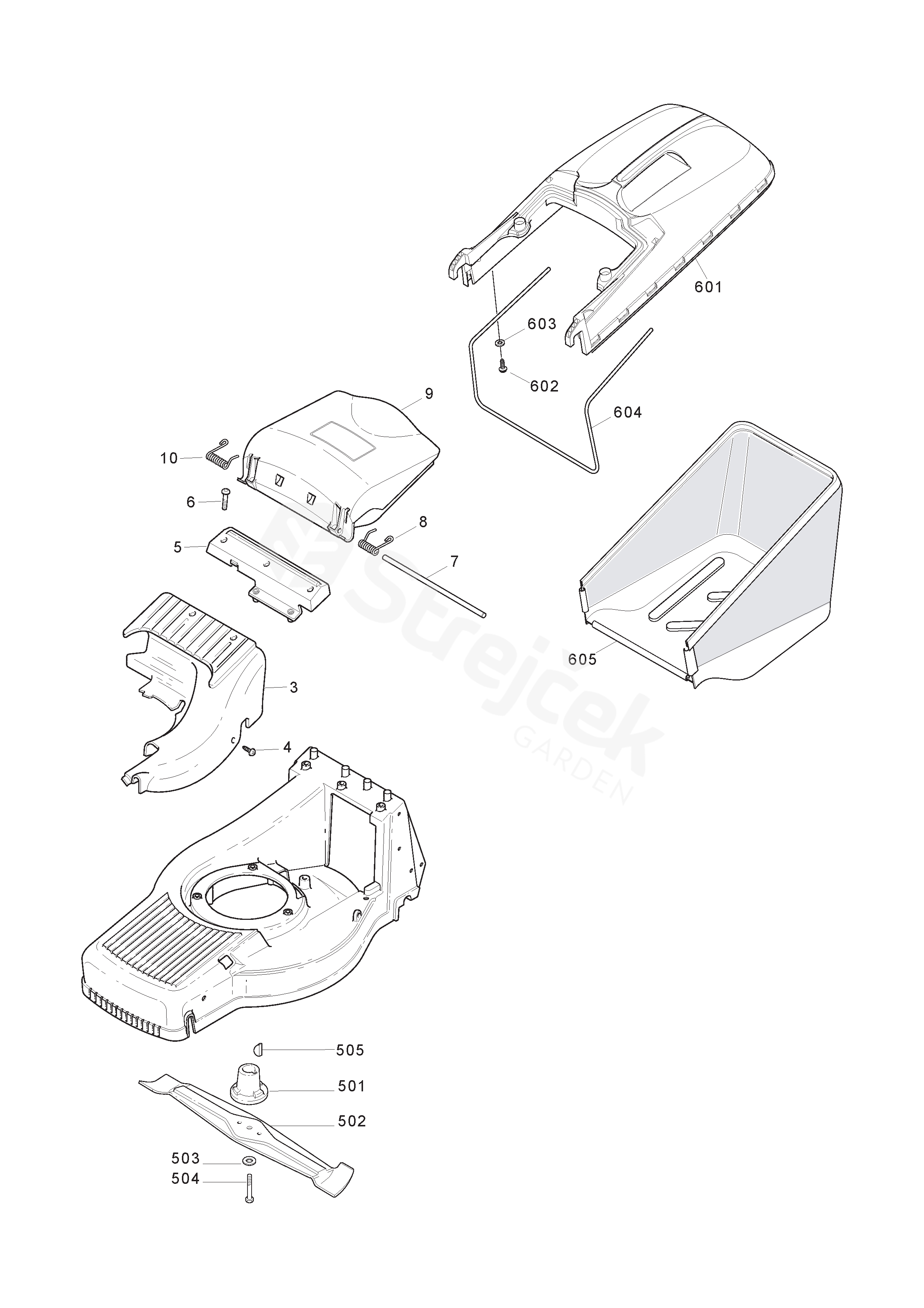

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
MOUNTFIELD 480 R PD/ES (2006)
3
Cover (Red 3003)
1111-2794-03
5
Attachment-Cover
1111-3533-02
6
Screw
9947-0616-16
7
Pivot Pin
1136-0680-01
8
Spring-Lh
1111-3531-01
9
Flap
1136-1347-01
10
Spring-Rh
1111-3530-01
501
Blade Holder
1111-1408-02
502
Blade
1111-2800-01
503
Washer
9696-0011-01
504
Screw
9987-5251-12
505
Key
9600-0014-00
601
Top Collector-Black
1111-3525-02
602
Screw
9838-9522-12
603
Flat washer
9699-0100-02
604
Wire Clamp
1111-3526-01
605
Collecting Bag
1111-3528-01
