Spare parts > Mountfield > Lawn Mower > MOUNTFIELD S461R PD ES MOUNTFIELD S461R PD ES (2013) > Handle, Upper Part
Back to

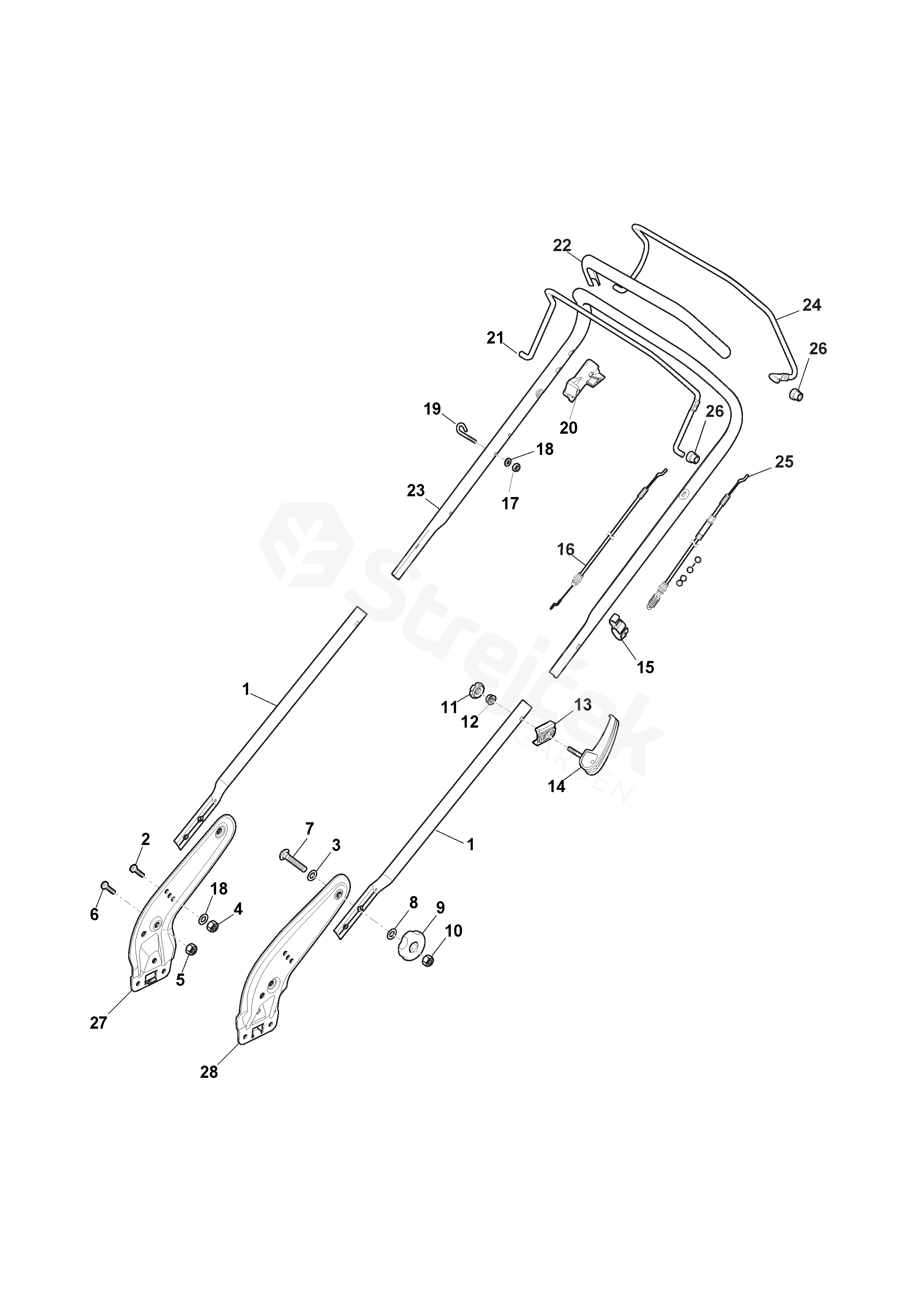

Handle, Upper Part
MOUNTFIELD S461R PD ES MOUNTFIELD S461R PD ES (2013)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For MOUNTFIELD S461R PD ES (2013)
1 Handle, Lower Part Black 381007048/0
2 Screw 112727803/0
3 Washer 112543002/0
5 Nut 112155000/0
6 Screw 112760605/0
7 Screw 112819120/0
8 Washer 112523060/0
9 Yellow Knob 322399804/1
10 Nut 112293200/0
11 Black Knob 322399835/0
12 Nut 122131750/0
13 Washer 322680016/0
14 Locking Handle Lever
Black 		381103350/0
15 Conduit Clip 118390020/0
16 Cable, Thread Engine Brake 181030053/0
17 Nut 112154510/0
18 Washer 112521330/0
19 Guide Spring 122430313/0
20 Fulcrum Pin 322545204/0
21 Lever, Engine Brake 181003300/1
22 Handgrip Black 122291050/0
23 Handle, Upper Part Black 381006838/0
24 Drive Control Lever 181003301/0
25 Cable Rear Drive 381030051/0
26 Bushing 122041966/0
27 Right Bracket
Black 		381005149/0
28 Left Bracket
Black 		381005151/0
