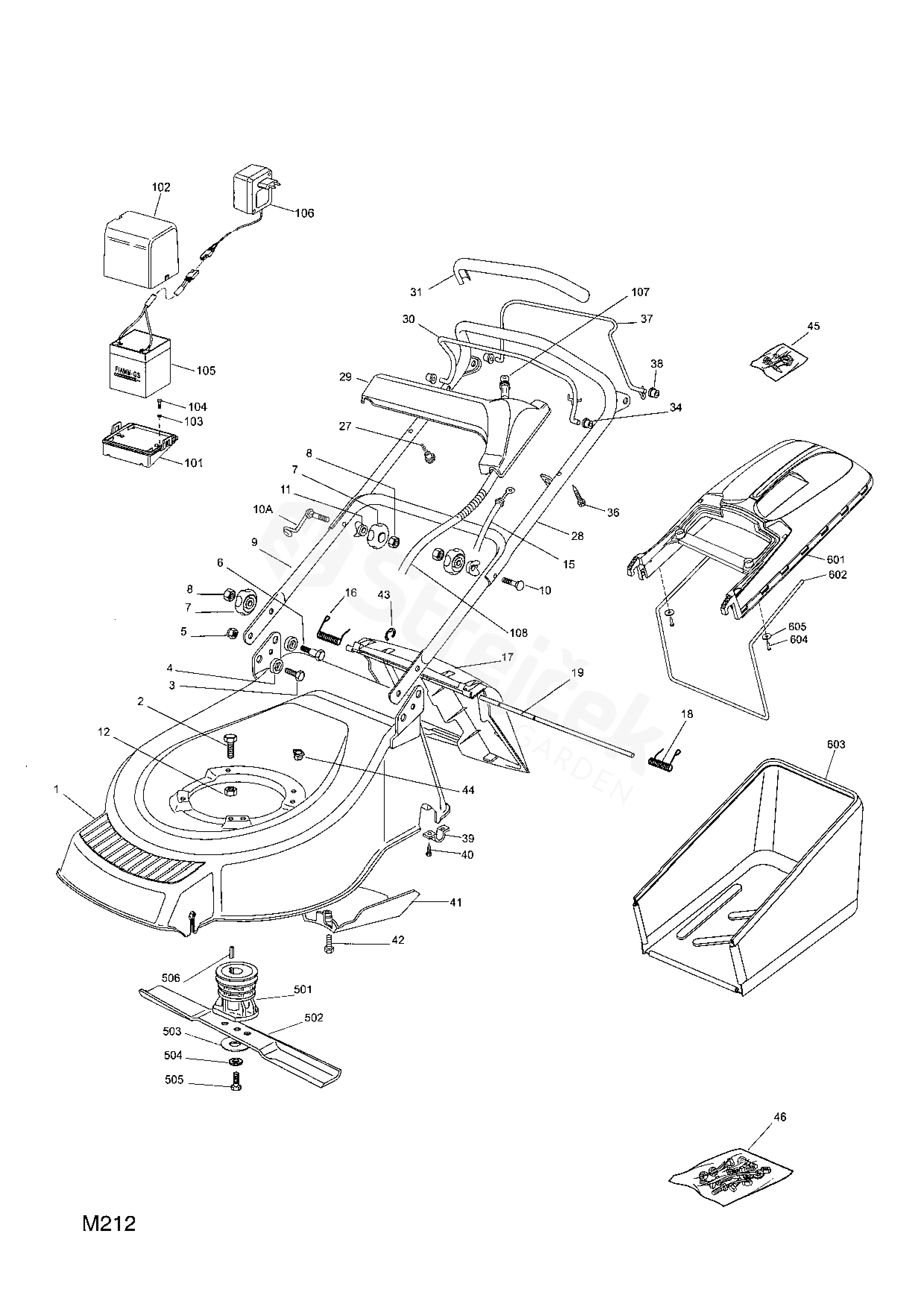

SP 460 ES SP 460 ES (2004)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For SP 460 ES (2004)

1	Grey Deck	381002635/0
2	Screw	112691800/0
3	Screw	112792610/0
4	Bushing	322041955/0
5	Nut	112155000/0
6	Screw	112793700/0
7	Knob	322399804/0
8	Nut	112293200/0
9	Handle Lower Part	381006512/0
10	Screw	112819201/0
11	Washer	122680006/1
12	Nut	112155000/0
15	Cable, Thread Engine Brake	181000631/0
16	Right Spring	122450410/1
17	Stone Guard, Black	322600063/1
18	Left Protection Spring	122450420/1
19	Fulcrum Pin	122517906/1
27	Screw	122943006/0
28	Handle, Upper Part Black	381007024/0
29	Black Dashboard	422120164/0
30	Lever, Engine Brake	181003291/2
31	Handgrip Black	122291050/0
34	Bushing	122041966/0
36	Screw	112728518/0
37	Driving Lever	181003288/1
38	Bushing	122041965/0
39	Plate	322545152/0
40	Screw	112731350/0
41	Belt Protection	122060192/0
42	Screw	112727791/0
43	Benzing Ring	112000930/0
44	Rubber Insert	322291150/0
45	Outfit, Screws	381008609/0
46	Outfit, Screws	381008643/0
101	Battery Support	322785123/0
102	Battery Cover	322109530/0
103	Washer	112521310/0
104	Screw	112731590/0
105	Battery	118120052/0
106	Battery Charger	118204121/0
107	Starting Block	118450050/0
108	Cable, Start	118204192/2
501	Hub With Pulley, Crankshaft Ø 22.2	122465607/0
502	Left Mulching, Blade	181004346/3
503	Elastic Disc	122160400/0
504	Washer	112523080/0
505	Screw	112735698/0
506	Key	112139100/0
601	Grass-Box, Upper Part	322486101/0
602	Lower Stiffening	122608525/0
603	Box, Fabric	181002211/0
604	Screw	112728680/0
605	Washer	112523050/0
10A	Guide Spring	181003801/1
