Mountfield
>
Lawn Mower
>
SP 470 SP 470 (2005)
>

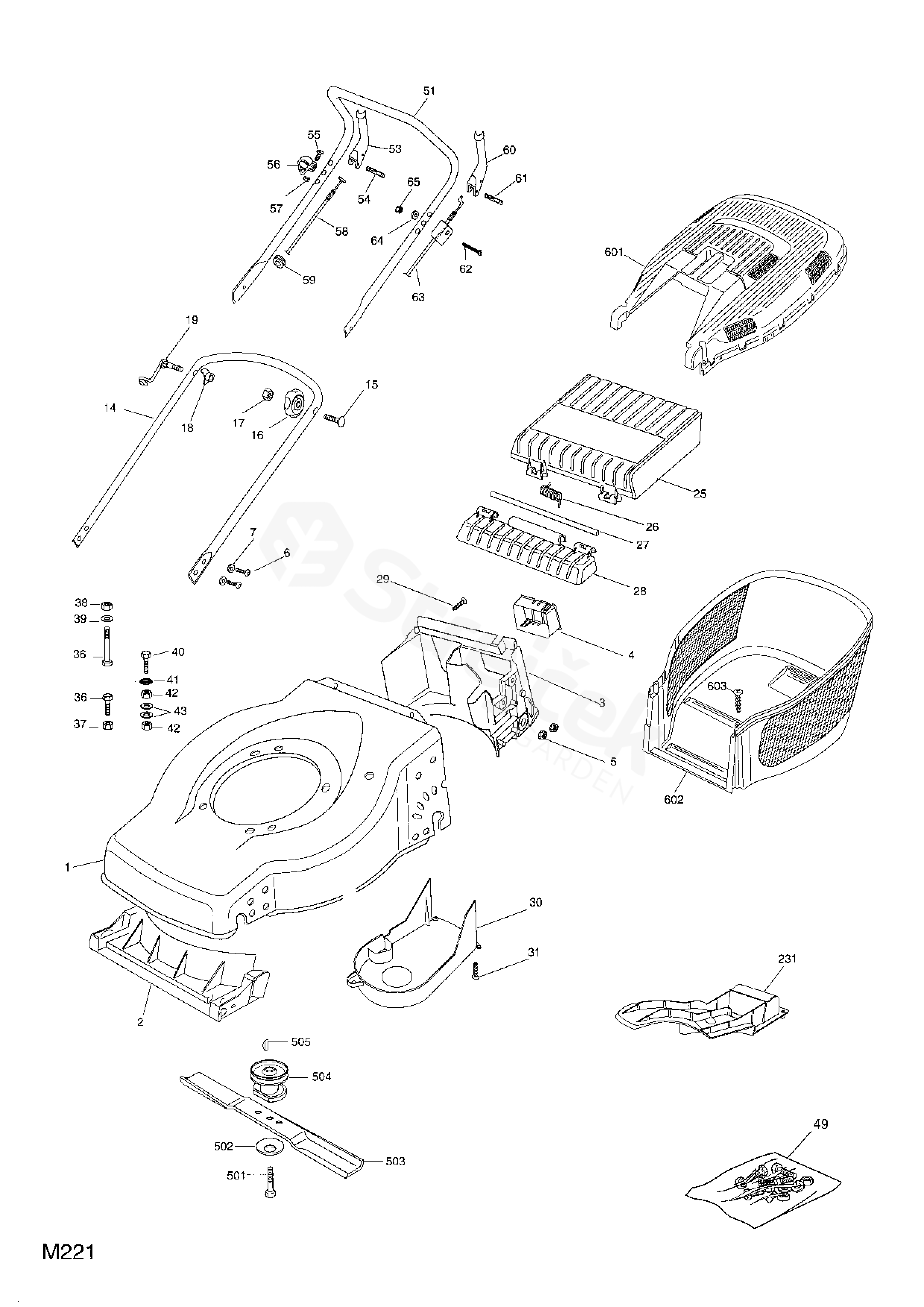

Chassis Handle
Back to
SP 470
SP 470 (2005)
Chassis Handle
SP 470
SP 470 (2005)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
SP 470 (2005)
1
Grey Deck
1136-1515-01
2
Front Baffle
1117-3007-01
3
Rear Baffle
1117-3008-01
4
Battery Holder
1111-2927-01
5
Nut
1117-1131-01
6
Bolt
1117-1364-01
7
Washer
9699-0028-02
14
Handle-Lower
1136-1411-01
15
Screw
1136-0620-01
16
Knob
1117-3194-01
17
Nut
9799-0831-02
18
Washer
1136-0693-01
19
Screw
1136-0747-01
25
Flap (Red Ral3003)
1117-1156-10
26
Spring-Rear Flap
1117-1126-01
27
Shaft For Rear Flap
1117-1143-01
28
Rear Flap Holder (Black)
1117-1155-02
29
Screw
9836-9516-12
31
Screw
9836-9516-12
36
Screw
9997-0830-16
37
Nut
9739-0831-22
38
Nut
9747-0831-02
39
Washer
9699-0028-02
40
Bolt
1117-1268-01
41
Lock washer
9678-0009-02
42
Nut
9799-0831-02
43
Washer
9699-0062-02
49
Assy Kit
1136-1415-01
51
Handle-Upper
1136-1414-01
53
Lever, Rear Drive
1117-3222-01
54
Locating Pin
9595-0258-00
55
Screw
9865-0616-16
56
Support
1117-1114-01
57
Nut
9799-0631-02
58
Clutch Cable
1136-1404-01
59
Wire Sleeve
1136-1399-01
60
Opc Lever (Red)
1117-3221-01
61
Locating Pin
9595-0258-00
62
Screw
9997-0635-12
63
Cable, Thread Engine Brake
1136-1512-01
64
Washer
9699-0025-02
65
Nut
9799-0631-02
231
Mulch Plug (Yellow)
1117-3001-01
501
Screw
9987-5251-12
502
Spring washer
1117-1065-01
503
Blade
1117-3354-01
504
Blade mount
1117-1387-01
505
Key
9600-0014-00
601
Grassbag-Upper (Red Ral3003)
1117-1157-12
602
Lower Grass Bag (Black)
1117-1218-01
603
Screw
9836-9516-12
