Spare parts - Partlist - SP 474 SP 474 (2007) - ST. Engine V 35-Rv 40 (150 Cc)

Everything for your machines

SP 474 SP 474 (2007)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For SP 474 (2007)

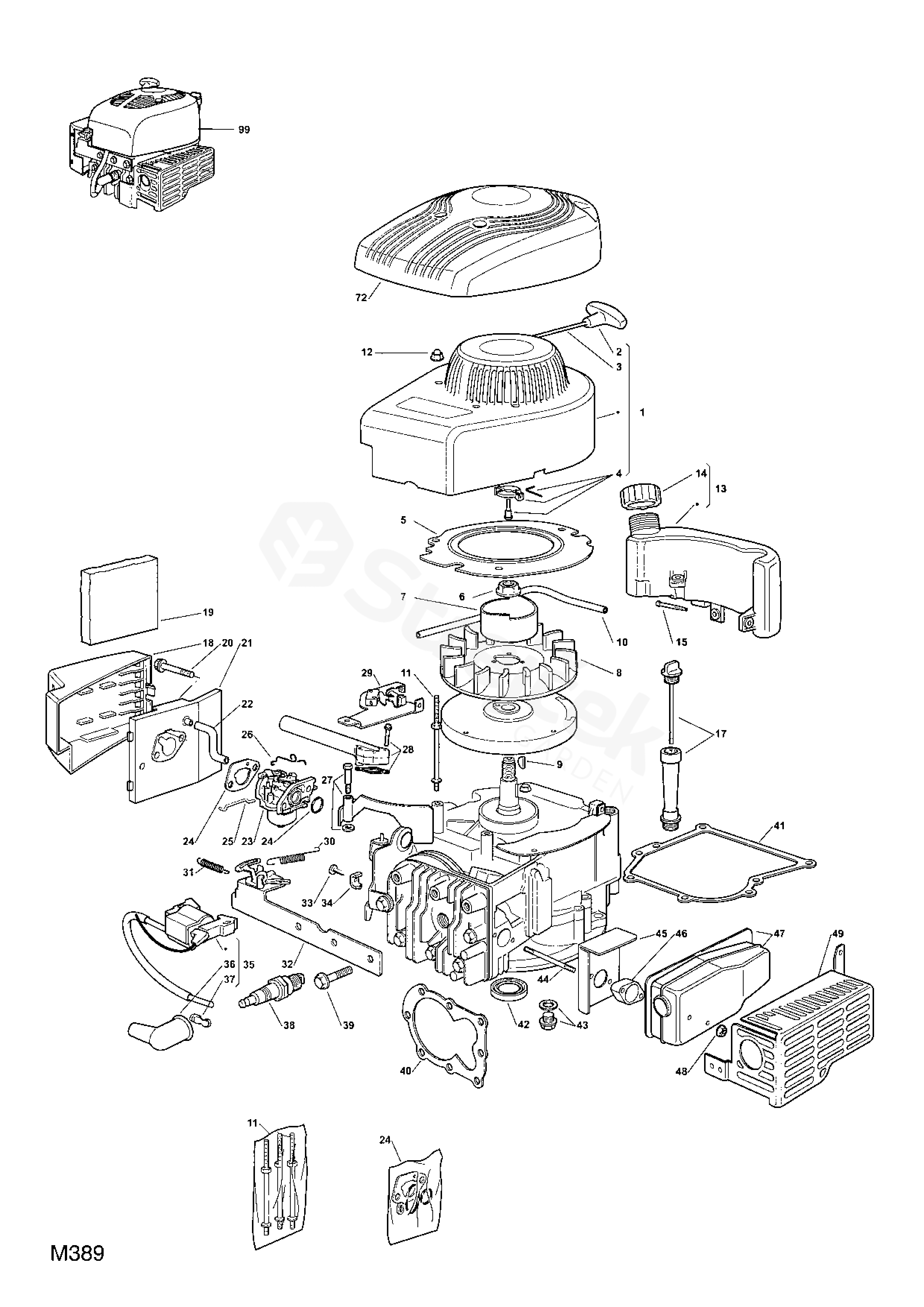

1	Starter Assy Cover Pos 2 - 4 incl. _ RV150	118550139/0
2	Starter Handle RV150	118550052/0
3	Starter cord RV150	118550053/0
4	Starter Pawl Set RV150	118550004/1
5	Deflector RV150	118550138/0
6	Nut RV150	118550056/0
7	Starter Cup RV150	118550140/0
8	Flywheel Fan RV150	118550154/0
9	Flywheel Key RV150	118550197/0
10	Fuel Tube RV150	118550005/0
11	Outfit, Screws RV150	118550142/0
12	Nut RV150	118550007/0
13	Fuel Tank Pos 14 incl. _ RV150	118550143/0
14	Fuel Cap RV150	118550001/0
15	Fuel Filter RV150	118550141/0
17	Oil Dipstick & Oil Fill Tube Assy RV150	118550008/0
18	Air Cleaner Cover RV150	118550133/0
19	Filter Element RV150	118550011/0
20	Screw RV150	118550010/0
21	Air Cleaner Base RV150	118550125/1
22	Breather Tube RV150	118550013/0
23	Carburetor RV150	118550016/0
24	Carburettor Gasket Kit RV150	118550019/0
25	Choke Lever RV150	118550017/0
26	Governor Link RV150	118550018/0
27	Air Vane Set RV150	118550020/0
28	Intake Manifold RV150	118550129/0
29	Brake RV150	118550021/0
30	Governor Spring RV150	118550015/0
31	Spring RV150	118550029/0
32	Control Bracket RV150	118550014/1
33	Screw RV150	118550023/0
34	Casing Clamp RV150	118550022/0
35	Magneto Armature Pos 36 - 37 incl. _ RV150	118550126/0
36	Spark Plug Elbow Cover RV150	118550127/0
37	Terminal-Spark Plug 2006 RV150	118550071/0
38	Spark Plug (J19Lm) Champion J19LM _ RV150	1111-9028-02
39	Screw RV150	118550128/0
40	Cylinder Head Gasket Set RV150	118550026/0
41	Crankcase Gasket RV150	118550130/0
42	Seal Ring RV150	118550131/0
43	Oil Cap Assy RV150	118550155/0
44	Double-Screw Bolt RV150	118550027/0
45	Muffler Gasket RV150	118550028/0
46	Spacer RV150	118550030/0
47	Muffler RV150	118550031/0
48	Nut RV150	118550032/0
49	Muffler Protection RV150	118550033/0
72	Cover, Black RV150	322055437/0
99	Engine assy RV150	118550157/0
