Spare parts > Mountfield > Lawn Mower > SP 535 HW BBC SP 535 HW BBC (2013) > Blade
Back to

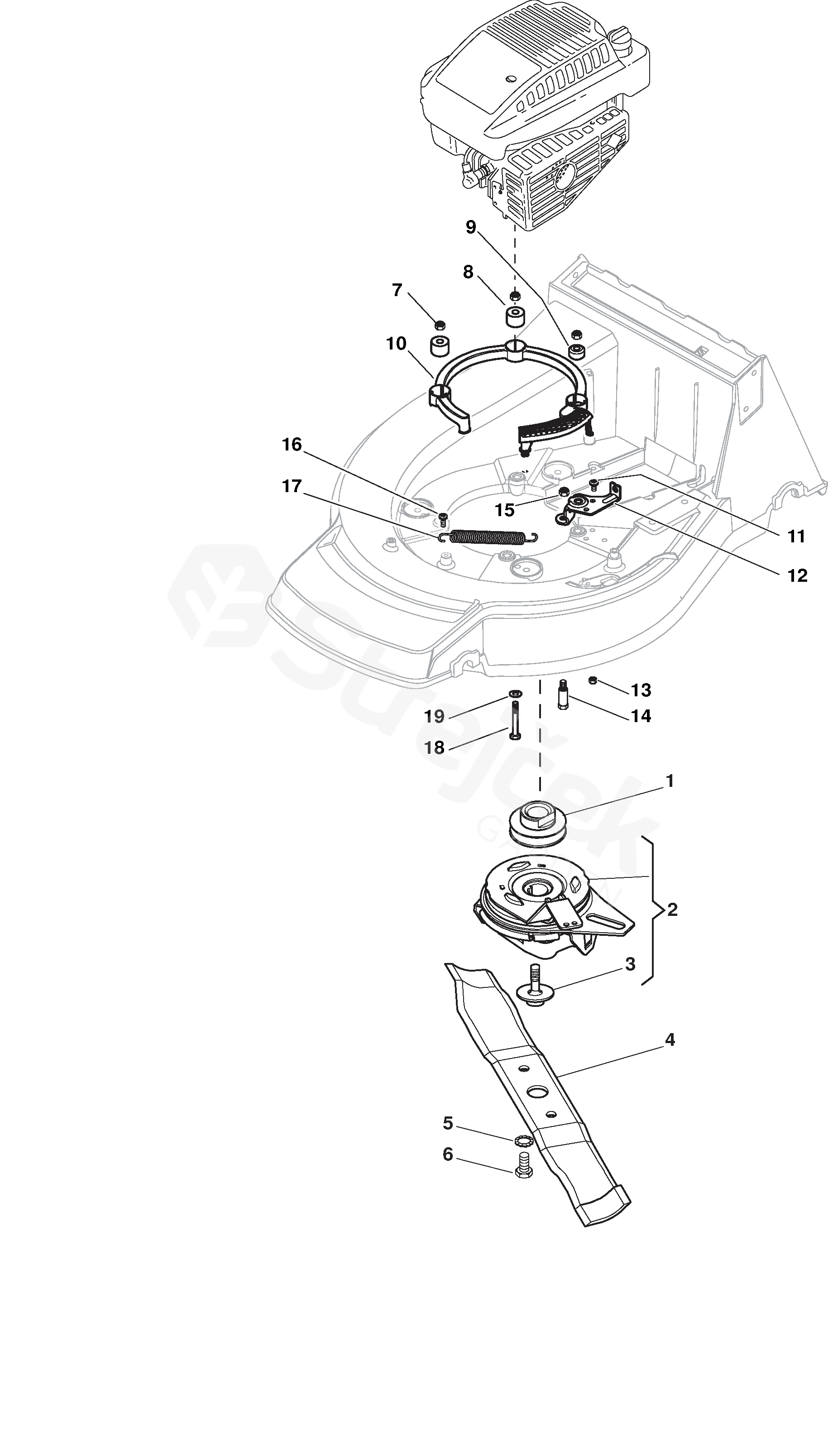

Blade
SP 535 HW BBC SP 535 HW BBC (2013)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SP 535 HW BBC (2013)
1 Pulley, Crankshaft Ø 25 122601923/0
2 Blade Brake Clutch 118399051/0
3 Screw 112735460/0
4 Mulching Blade 181004382/0
5 Washer 112540070/0
6 Screw 112794110/0
7 Nut 112154210/0
8 Spacer 122170835/0
9 Spacer
From 01-September-2009 		122170836/0
10 Clutch Protection 322170961/0
11 Screw 112735664/0
12 Pulley 322551665/0
13 Nut 112154510/0
14 Stake 125580018/0
15 Nut 112155000/0
16 Screw 112735664/0
17 Spring 122446188/0
18 Screw
(Honda) 		112692080/0
19 Washer 112521350/0
