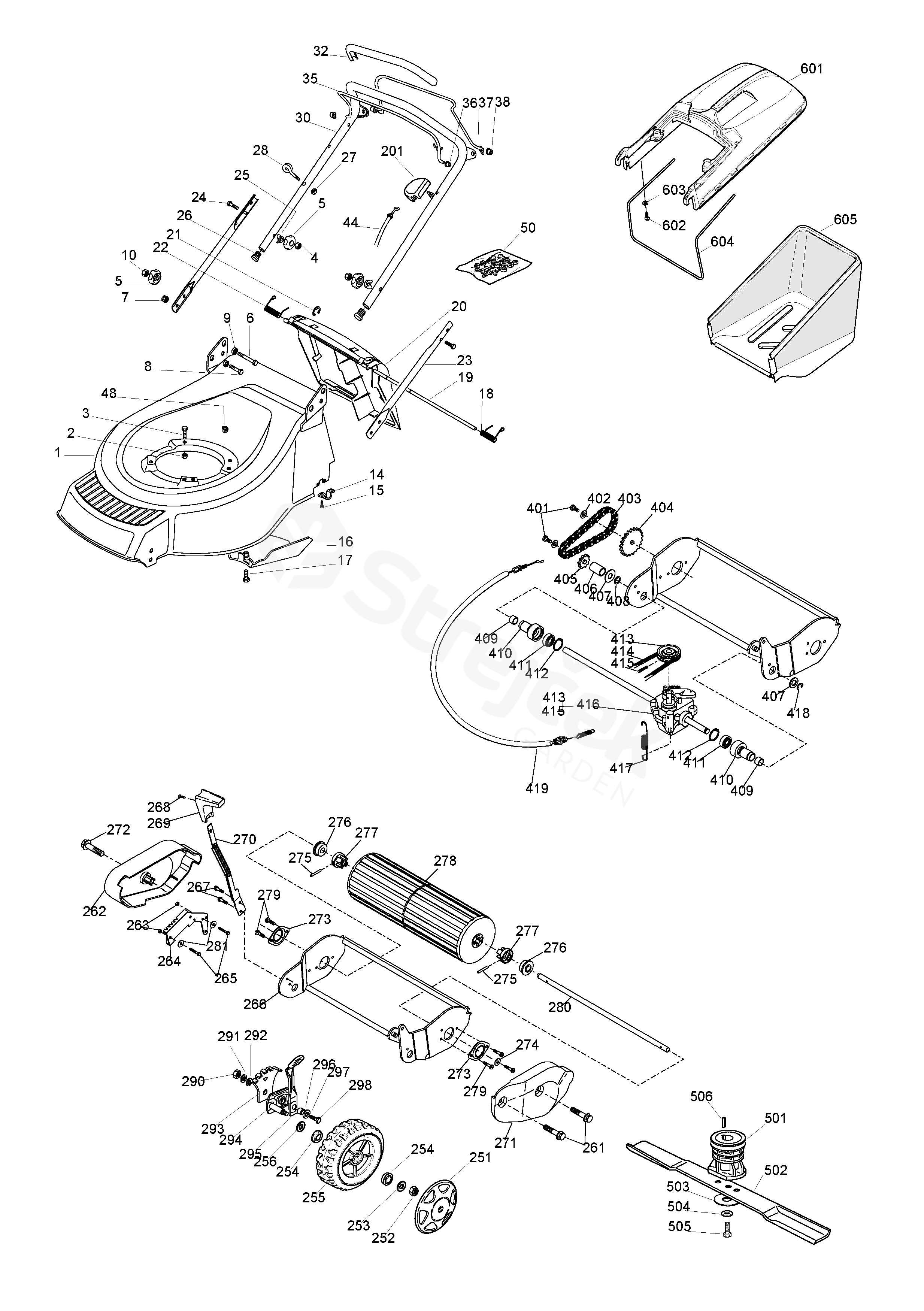

Spare parts - Partlist - SP460R SP460R (2005) - Deck And Height Adjusting

Everything for your machines

SP460R SP460R (2005)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For SP460R (2005)

1	Grey Deck	381002501/1
2	Nut	112155000/0
3	Screw	112793701/0
4	Nut	112293202/0
5	Knob	122399803/0
6	Screw	112793700/0
7	Nut	112155000/0
8	Screw	112792610/0
9	Bushing	322041955/0
10	Nut	112293200/0
14	Plate	322545154/0
15	Screw	112731350/0
16	Belt Protection	122060195/0
17	Screw	112728530/0
18	Left Protection Spring	122450420/1
19	Fulcrum Pin	122517906/1
20	Stone Guard	322600076/0
21	Benzing Ring	112000930/0
22	Right Spring	122450410/1
23	Handle Lower Part	381006973/0
24	Screw	112819125/0
25	Washer	122680006/1
26	Polyethylene Push Road D=20inch	118566112/0
27	Nut	112293200/0
28	Spring	122430309/0
30	Handle, Upper Part	381006981/0
32	Handgrip Black	122291050/0
35	Lever, Engine Brake	181003291/2
36	Bushing	122041966/0
37	Driving Lever	181003288/1
38	Bushing From 01-September-2004	122041965/0
44	Cable, Thread Engine Brake	181000625/0
48	Rubber Insert	322291150/0
50	Outfit, Screws	381008640/0
201	Brake Support Protection	122601000/0
251	Hub Cap Grey	322110395/0
252	Nut	112155000/0
253	Washer	112521350/0
254	Bearing	122122200/0
255	Wheel Ø 170	381007351/0
256	Spring washer	112530150/0
261	Screw	112735592/0
262	Red Right Roller Prot. Carter	322060201/0
263	Nut	112154330/0
264	Sector, Height Adjustment	322735551/0
265	Screw	112789000/0
266	Roller Support	381005109/0
267	Screw	112735121/0
268	Screw	112728680/0
269	Knob	322399805/0
270	Lever, Height Adjustment	322321505/0
271	Red Left Roller Prot. Carter	322060202/0
272	Screw	112735594/0
273	Bearing Flange	322207325/0
274	Washer	122671650/0
275	Elastic Pin	112620210/0
276	Bearing	119216036/0
277	Tractor Roller	322855000/0
278	Roller	381007401/0
279	Screw	112735593/0
280	Axle, Roller	122033361/0
281	Washer	112521331/0
290	Nut	112293200/0
291	Grower	112583500/0
292	Washer	112523070/0
293	Sector, Height Adjustment	322735547/0
294	Wheel Support	381005082/0
295	Lever	481003285/1
296	Spacer	122171001/0
297	Washer	112521350/0
298	Screw	112793701/0
401	Screw	112735593/0
402	Washer	112523040/0
403	Chain	115189003/0
404	Ring Gear	122120106/0
405	Ring Gear	122120107/0
406	Spacer	122170970/0
407	Antifriction Washer	322672151/0
408	Washer	321660100/0
409	Brass	322038404/0
410	Gear Box Support	322785126/0
411	Bearing	119216035/0
412	Snap Ring	112610095/0
413	Pulley	122601904/0
414	Trapezoidal Belt	135063800/0
415	Elastic Pin	112645705/0
416	F.R. Gear Box Roller	181003077/0
417	Brake Spring	125430220/0
418	Spring	122450063/0
419	Cable Rear Drive	381000668/0
501	Hub With Pulley, Crankshaft Ø 22.2	122465607/0
502	Left Mulching, Blade	181004346/3
503	Elastic Disc	122160400/0
504	Washer	112523080/0
505	Screw	112735698/0
506	Key	112139100/0
601	Top collector	322486111/0
602	Grassc. Lower Stiff. 48 Roller	122608527/0
603	Fabric Grasscatcher Wip Roller Black	181002227/0
604	Screw	112728680/0
605	Washer	112523050/0
