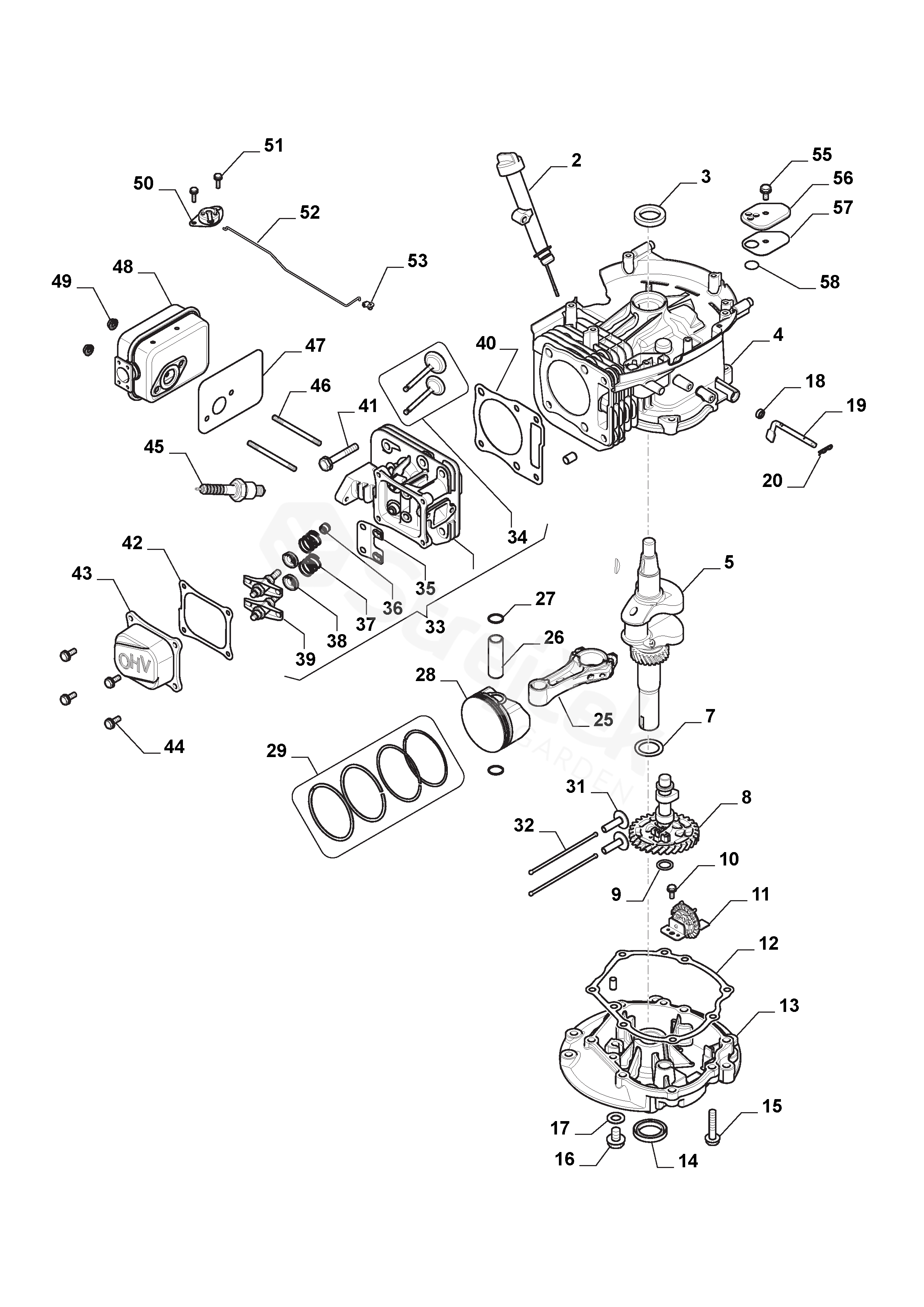

R27H R27H (2019)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For R27H (2019)

2	Oil Filler Assy	118551431/0
3	Oil seal	118550300/0
4	Crankcase	118551152/0
5	Crankshaft	118551115/0
7	Washer	118550283/0
8	Camshaft Assy	118551433/0
9	Washer , Drain Plug	118551144/0
10	Screw	112789000/0
11	Speed Governor Assy	118551132/0
12	Crankcase Gasket	118551107/0
13	Crankcase Cover	118551153/0
14	Oil seal	118550379/0
15	Screw	9959-0840-16
16	Drain plug bolt	118550780/1
17	Washer , Drain Plug	118550793/0
18	Oil seal	118550935/0
19	Shaft, Governor Arm	118551130/0
20	Spring Pin	118550934/0
25	Connecting Rod Assy	118551432/0
26	Piston Pin	118550786/0
27	Washer, Piston Pin	118551145/0
28	Piston	118551113/0
29	Piston, Ring Set	118551114/0
31	Valve Lifter Assy	118550291/0
32	Push rod	118551118/0
33	Cylinder Head Assy	118551151/0
34	Valve Assy, Intake + Exhaust	118551150/0
35	Plate	118551119/0
36	Seal	118551117/0
37	Spring	118550896/0
38	Retainer	118550895/0
39	Valve Arm Set	118550273/0
40	Gasket	118551110/0
41	Screw	118550297/0
42	Gasket	118551112/0
43	Cover	118551111/0
44	Screw	9959-0616-16
45	Spark Plug	118550658/0
46	Stud	118551143/0
47	Gasket, Muffler	118551135/0
48	Muffler	118551134/0
49	Nut	118550806/0
50	Choke Control	118551350/0
51	Screw	112789000/0
52	Control Rod	118551351/0
53	Retainer	118551352/0
55	Screw	112790781/0
56	Cover	118551108/0
57	Gasket	118551109/0
58	Valve	118550902/0
