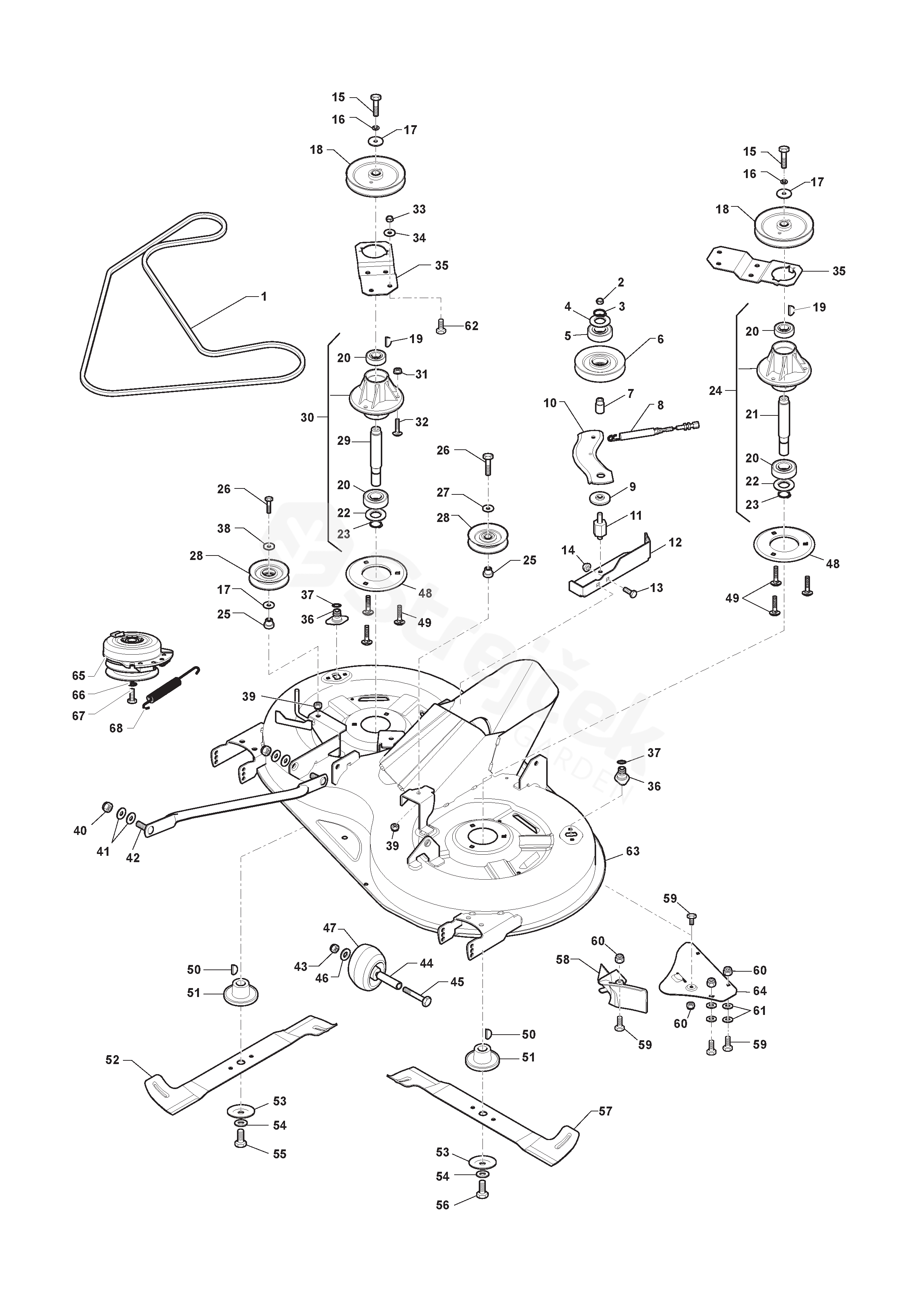

Spare parts - Partlist - T38 M T38 M (2020) - Cutting Plate with Electromagnetic Clutch

Everything for your machines

T38 M T38 M (2020)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For T38 M (2020)

1	Drive Belt	135061509/0
2	Nut	112293201/0
3	Washer	112524010/0
4	Seeger	112610800/0
5	Bearing From 01-September-2018	119216048/0
6	Pulley	125601595/0
7	Spacer	125160052/0
8	Wire	382004618/0
9	Bushing	125040635/0
10	Lever	325318343/0
11	Spacer	125160049/0
12	Bracket	325785391/0
13	Screw	112818690/0
14	Nut	112154210/0
15	Screw	112793102/0
16	Washer	112540260/0
17	Washer	125670007/0
18	Pulley	125601604/0
19	Feather	112139480/0
20	Bearing From 01-September-2018	119216047/0
21	Shaft	125020804/0
22	Dust Cover Disc From 01-January-2019	325160501/1
23	Seeger	112609260/0
24	Flange Assy	382207204/1
25	Spacer From S/N 19FA3RON000413	125160110/0
26	Screw	112691115/0
27	Washer	112524010/0
28	Pulley	325601599/0
29	Shaft	125020805/0
30	Flange Assy	382207205/1
31	Nut	112154210/0
32	Screw	112818690/0
33	Nut	112154210/0
34	Washer	112523060/0
35	Stiffening	325774617/0
36	Water Hose Connection	325033086/0
37	Or Ring	119035000/0
38	Washer	112523060/0
39	Nut	112293201/0
40	Nut	112156602/0
41	Washer	325670008/1
42	Equalizer Rod From 01-September-2016	382000565/1
43	Nut	112293201/0
44	Spacer	125160072/0
45	Screw	112692100/0
46	Washer	112521350/0
47	Anti Scalp Wheel Ø 90	182700005/0
48	Disc	325160505/0
49	Screw	112818700/0
50	Key	112139100/0
51	Blade Holder	125463200/0
52	Right Mulching Blade Mulching	182004364/0
53	Elastic Disc	122160400/0
54	Washer	112523080/0
55	Screw	112735695/1
56	Screw	112735694/0
57	Left Blade, Winged Winged	182004363/0
58	Deflector	325140111/0
59	Screw	112791213/1
60	Nut	112154510/0
61	Washer	112523040/0
62	Screw	112793102/0
63	Cutting Plate Black	382564118/0
64	Rear Deflector Suppot	325785509/0
65	Electromagnetic Clutch	118399069/0
66	Washer	112543000/0
67	Screw	112737320/0
68	Spring	125430277/0
