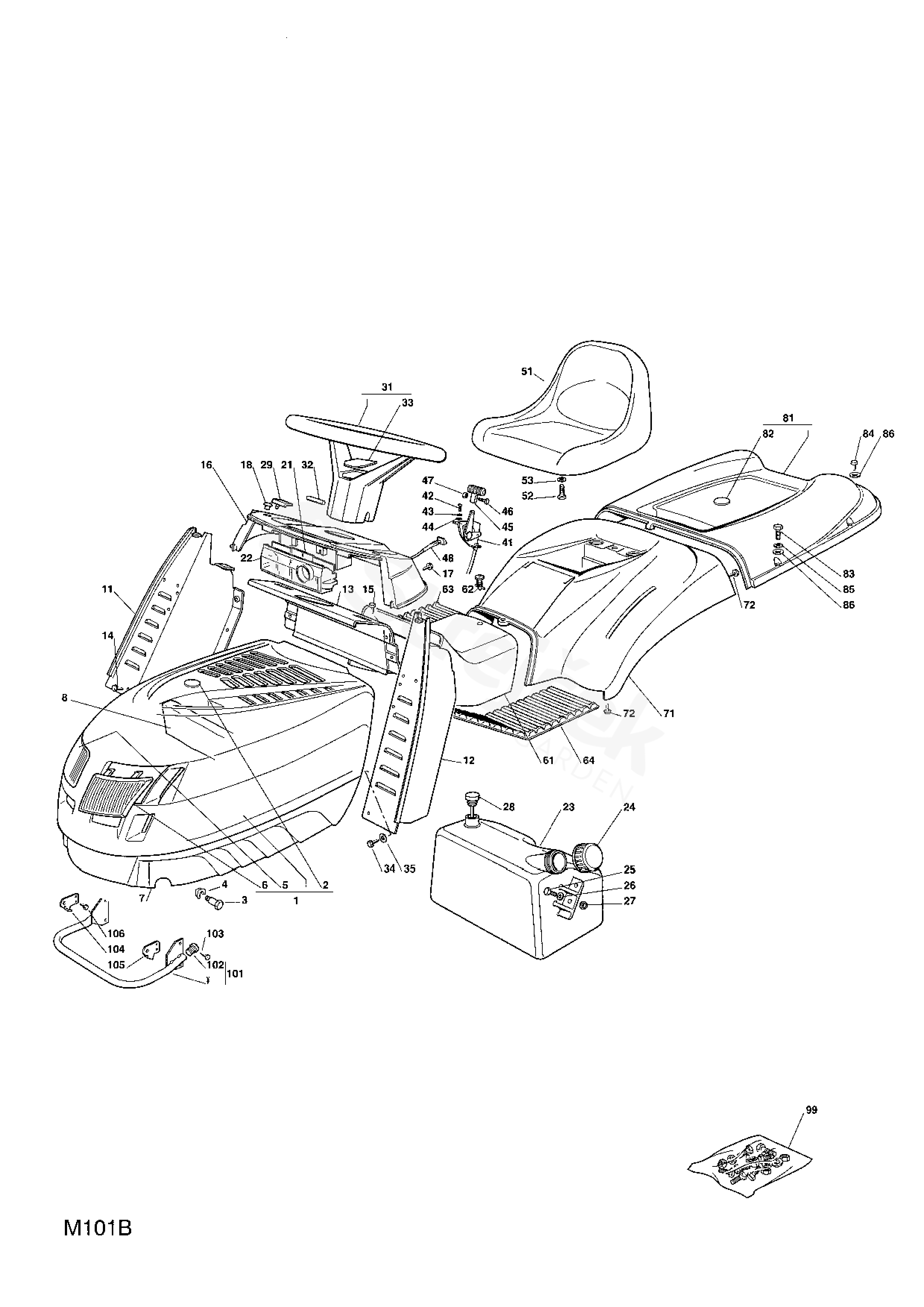

Body Work
1440H 1440H (2004) [13-2660-14]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 1440H (2004) [13-2660-14]
1 Engine Hood-Red
Pos 2, 5, 6 incl.
1136-1169-01
2 Plate-Red 1136-1145-01
3 Bolt 1136-0230-01
4 Lock Plate 1136-0009-01
5 Grill-Rh 1136-1135-01
6 Grill-Lh 1136-1136-01
7 Engine Hood-Lower 1136-0866-01
8 Intake Separator 1136-0921-01
11 Dashboard Support, Right 1136-0535-01
12 Dashboard Support, Left 1136-0534-01
13 Dashboard Support 1136-1497-01
14 Screw 9848-8013-16
15 Screw 9848-8013-16
16 Dashboard 1136-1130-01
17 Screw 9847-8013-16
18 Plug 1136-0872-01
21 Protection-El.Card 1136-0274-01
22 Protection-El.Card 1136-0285-01
23 Fuel Tank 1136-0317-01
24 Tank Cap 1136-0344-01
25 Screw 9997-0516-16
26 Washer 9699-0018-02
27 Nut 9747-0531-02
29 Grommet 1136-0179-01
31 Steering wheel
Pos 33 incl.
1136-1480-01
32 Locating Pin 9595-0272-00
33 Cap 1136-1232-01
34 Screw 9847-8119-16
35 Washer 9699-0035-02
41 Throttle Control 1136-0439-01
42 Screw 9997-0412-16
43 Washer 9683-0010-02
44 Washer 9699-0021-02
45 T-Handle 1136-0192-01
46 Screw 9865-0412-16
47 Nut 9799-0431-02
51 Seat 1136-1151-01
52 Screw 9997-0820-16
53 Washer 9683-0030-02
61 Cover-Red 1136-1127-01
62 Pivot 1136-0268-01
63 Footboard Cover-R 1136-0153-01
64 Footboard Cover-L 1136-0146-01
71 Wheels Cover Red 1136-1229-01
72 Screw 9836-9618-12
81 Grass Catcher Cover-Red
Pos 82 incl.
1136-1287-01
82 Plate-Red 1136-1145-01
83 Screw 9997-0635-12
84 Screw 9847-8116-16
85 Washer 9683-0010-02
86 Washer 9699-0035-02
99 Starter Key Outfit
Pos 32 incl.
1136-0597-01
101 Muffler Protection
Pos 102 incl.
1136-0553-01
102 Cap 1136-0061-01
103 Screw 9847-8216-16
104 Hood Plate-R 1136-0259-01
105 Hood Plate-L 1136-0260-01
106 Screw 9847-8009-16
