Spare parts - Partlist - MT 22CX MT 22CX (2005) - Trimmer Drive Shaft

Everything for your machines

MT 22CX MT 22CX (2005)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

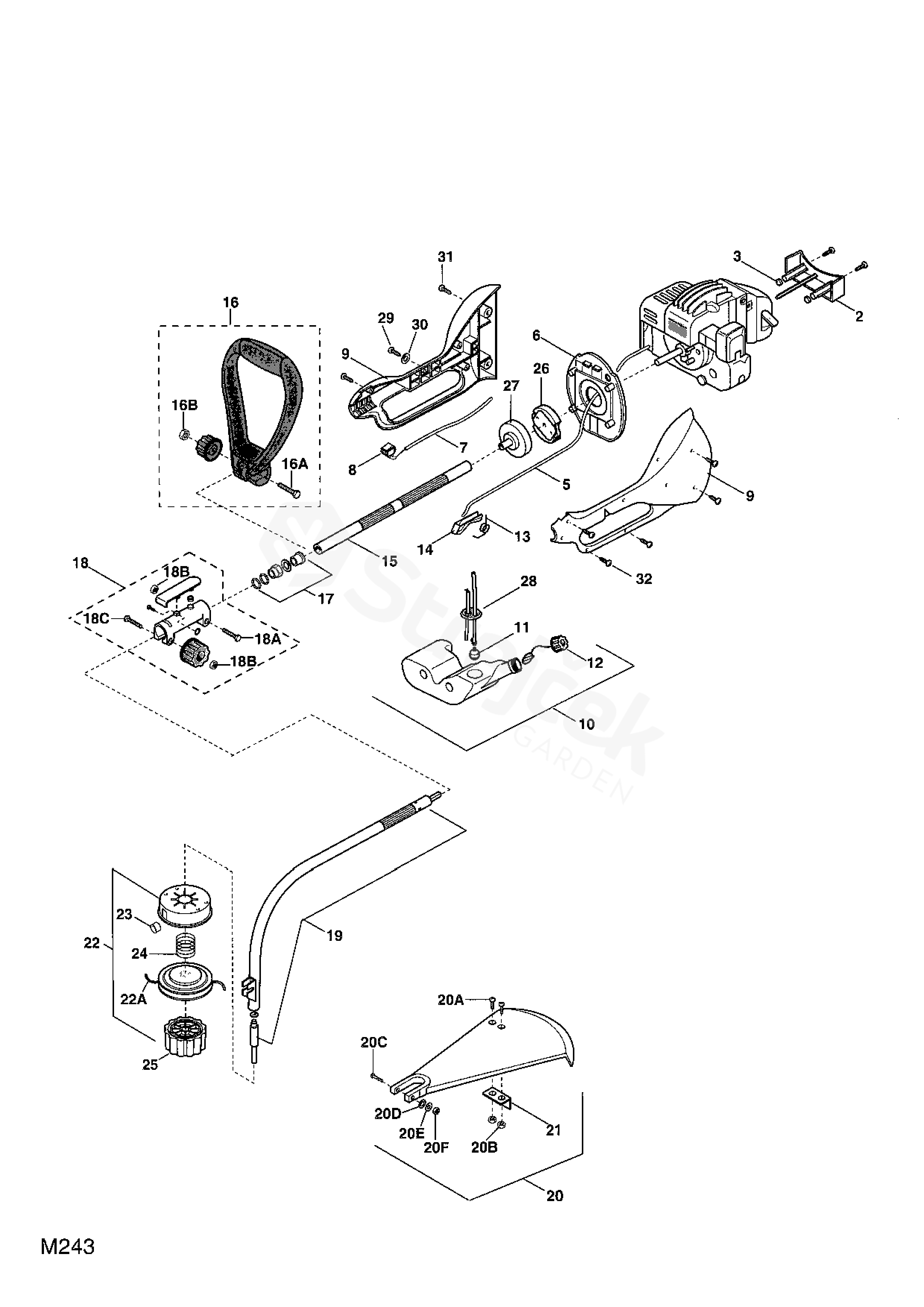

Other parts For MT 22CX (2005)

2	Fixed Plate MT22CX	1911-3761-01
3	Insulator MT22CX	1911-3762-01
5	Throttle Cable MT22CX	1911-3773-01
6	Cover MT22CX	1911-3763-01
7	Ground wire MT22CX	1911-3764-01
8	Switch MT22CX	1911-3765-01
9	Housing Assy Red MT22CX	6980269
10	Fuel Tank Assy Pos 11, 12, 28 incl. _ MT22CX	1911-3766-01
11	Fuel Pick-Up MT22CX	1911-3767-01
12	Fuel Tank Cap MT22CX	1911-3912-01
13	Spring MT22CX	1911-3769-01
14	Throttle Trigger MT22CX	1911-3770-01
15	Rear Tube W.Flex Shaft MT22CX	1911-3775-01
16	Handle Assy MT22CX	1911-3756-01
17	Shaft sleeve MT22CX	1911-3776-01
18	Tube Joint Assy MT22CX	1911-3777-01
19	Front Tube W.Flex Shaft MT22CX	1911-3778-01
20	Shield Pos 21 incl. _ MT22CX	1911-3771-01
21	Line Cutter Blade MT22CX	1911-3772-01
22	Cutter Head Assy Pos 23 - 25 incl. _ MT22CX	1911-3760-01
23	Grommet MT22CX	1911-3759-01
24	Spring MT22CX	1911-3758-01
25	Knob (Rh-Thread) MT22CX	1911-3927-01
26	Clutch MT22CX	1911-3779-01
27	Clutch Drum MT22CX	1911-3780-01
28	Grommet MT22CX	1911-3929-01
29	Screw MT22CX	1911-4262-01
30	Washer MT22CX	1911-4263-01
31	Screw MT22CX	1911-4264-01
32	Screw MT22CX	1911-4265-01
16A	Screw	9997-0660-12
16B	Nut	9799-0631-02
18A	Screw	9939-0630-12
18B	Nut	9799-0631-02
18C	Screw	9997-0635-12
20A	Screw	9865-0520-16
20B	Nut	9739-0531-22
20C	Screw	9997-0660-12
20D	Washer	9699-0025-02
20E	Washer	9683-0025-02
20F	Lock Nut	9747-0631-02
22A	Cutting Line (15M-2.0Mm)	1911-9007-08
