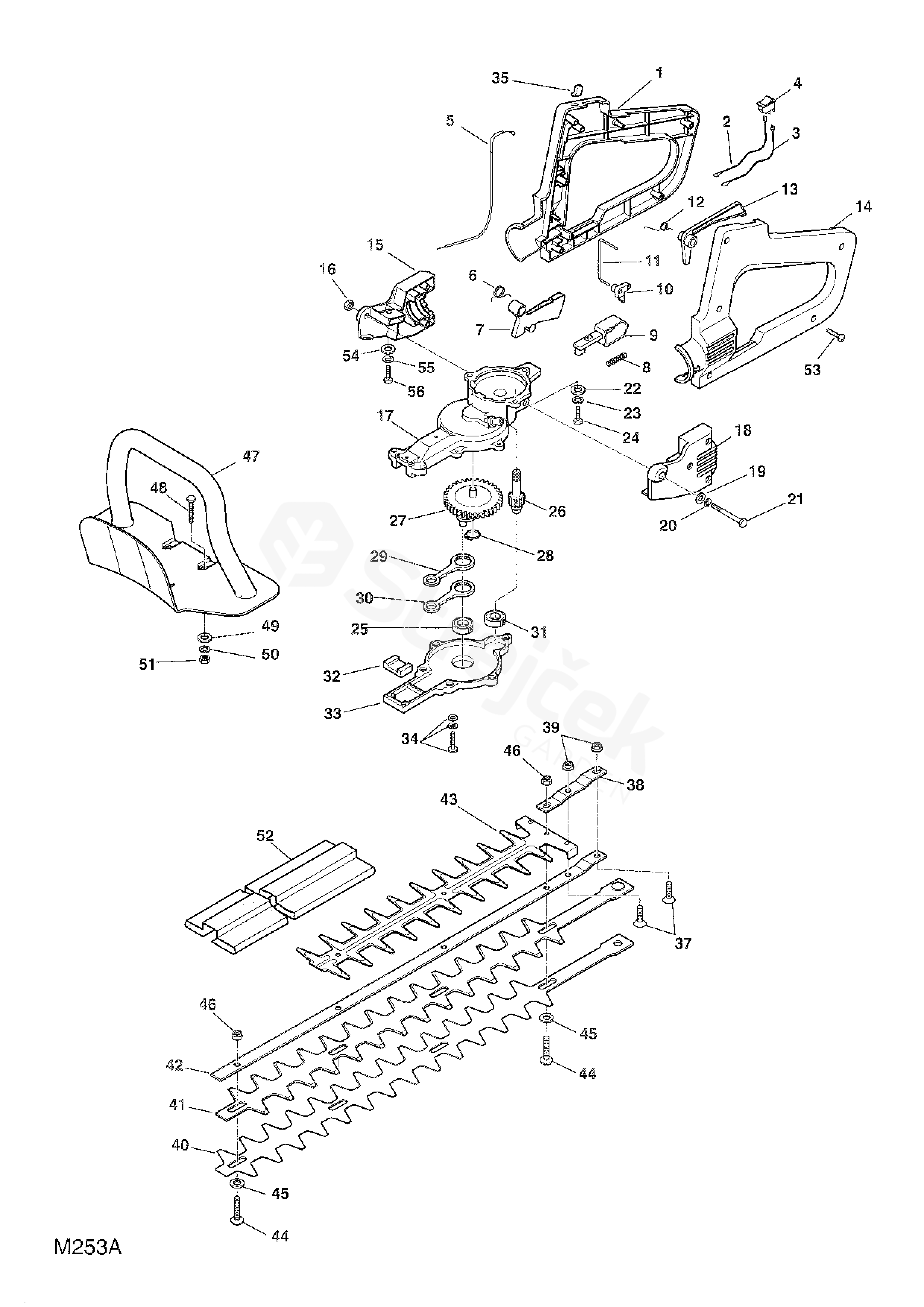

HT 55 HT 55 (2006)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For HT 55 (2006)

1	Right Handgrip HT55	6981193
2	Earth Cable HT55	6981192
3	Coil-Switch Cable HT55	6981191
4	Stop Switch HT55	6981194
5	Throttle Cable HT55	6981188
6	Spring HT55	6981186
7	Throttle Lever HT55	6981187
8	Spring HT55	6981182
9	Gearshift HT55	6981183
10	Hook HT55	6981185
11	Throttle Rod HT55	6981184
12	Spring HT55	6981189
13	Safety Lever HT55	6981190
14	Left Handgrip HT55	6981195
15	Right Support HT55	6981180
16	Nut HT55	6981142
17	Case HT55	6981165
18	Left Support HT55	6981181
19	Washer HT55	6981155
20	Washer HT55	6981152
21	Screw HT55	6981148
22	Washer HT55	6981156
23	Washer HT55	6981153
24	Screw HT55	6981140
25	Needle Bearing HT55	6981139
26	Pinion HT55	6981175
27	Gear Assy HT55	6981176
28	Ring HT55	6981151
29	Connecting Rod HT55	6981177
30	Connecting Rod HT55	6981177
31	Needle Bearing HT55	6981110
32	Shoe HT55	6981169
33	Case HT55	6981179
34	Outfit, Screws HT55	6981100
35	Knob HT55	6981287
37	Screw HT55	6981281
38	Plate HT55	6981166
39	Nut HT55	6981280
40	Bottom Blade HT55	6981171
41	Top Blade HT55	6981170
42	Blade Holder HT55	6981168
43	Blade Guard HT55	6981167
44	Screw HT55	6981173
45	Washer HT55	6981172
46	Nut HT55	6981279
47	Front Handle HT55	6981196
48	Screw HT55	6981150
49	Washer HT55	6981155
50	Washer HT55	6981152
51	Nut HT55	6981142
52	Blade Cover HT55	6981174
53	Screw HT55	6981149
54	Washer HT55	6981155
55	Washer HT55	6981152
56	Screw HT55	6981147
